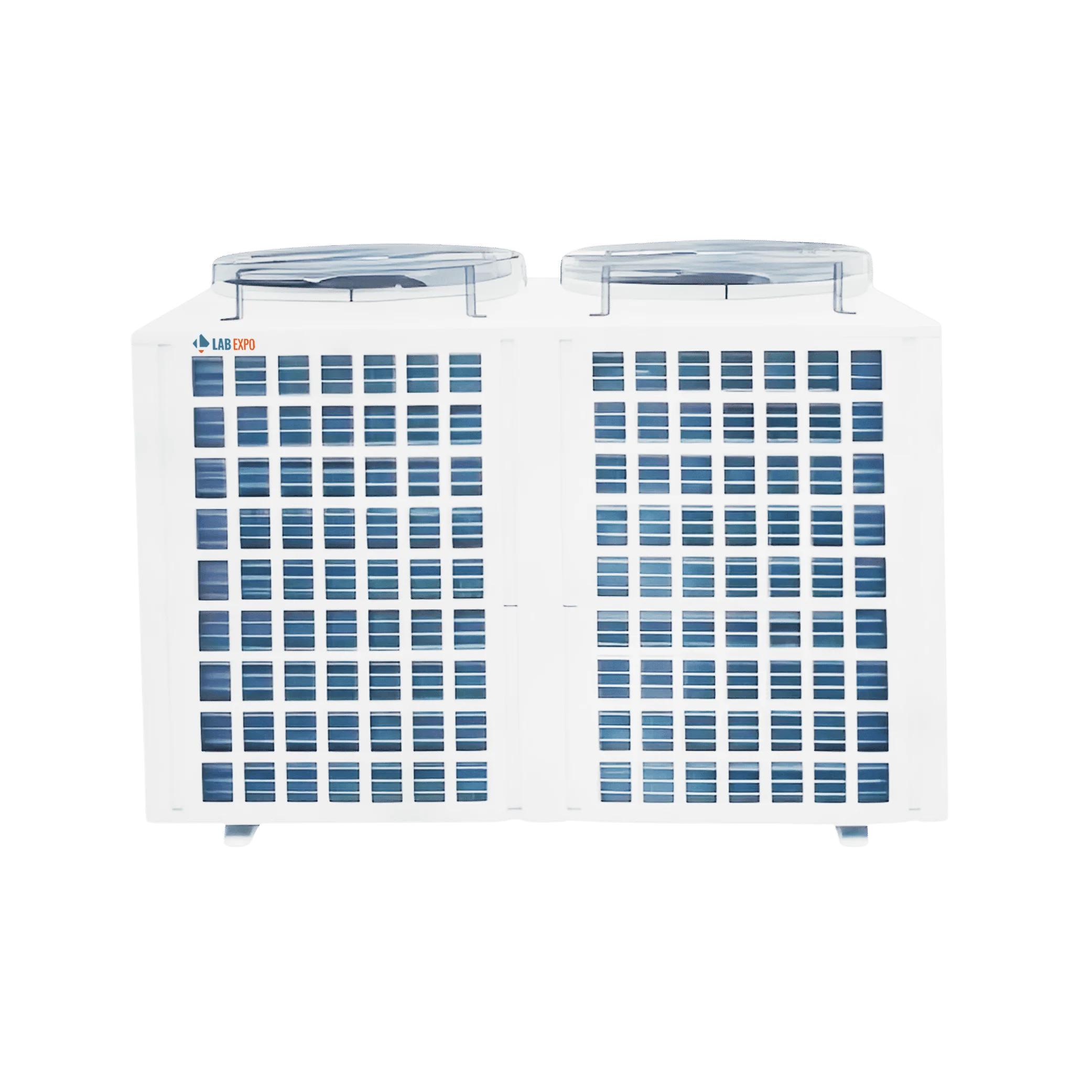

Top Air-out Cold Room Unit 17-TAC104 works in temperatures from -20°C to 10°C offering flexibility for various storage needs. It uses electricity defrosting as the control mode ensuring efficient defrosting without manual intervention. It has an evaporating temperature set at -15°C ensuring effective cooling for low-temperature environments. Our cold storage room has an integral box structure that helps protect electric components for long-lasting performance.
Specifications
| Evaporating temperature | -15 °C |
| Refrigerant | R404A |
| Nominal working condition power | 8910 W |
| Suitable storage temperature | -20 °C to 10 °C |
| Power | 380 V/3P/50 Hz |
| Control mode | Electricity defrosting |
| Throttle modes | Thermal expansion valve throttling |
| Compressor | Hermetic scroll |
| Dimensions | 1450 × 705 × 1165 mm |
| Weight | 130 kgs |
Features
Applications
Function Implementation Heavy industrial cold rooms 8910 W output supports large chambers Continuous refrigeration zones Electric defrost maintains efficiency Frozen storage facilities -20 C to 10 C operating flexibility Processing plants Protected electrical housing improves durability High-throughput warehouses Stable evaporating cycle supports load stability
Lab Expo Top Air-Out Cold Rooms are designed for efficient storage of temperature-sensitive products. They have digital thermostats for precise control and insulated panels for energy efficiency. These units are built from corrosion-resistant materials and offer flexible storage with adjustable shelving. Our Top Air-Out Cold Rooms provide reliable temperature control for storage needs.
