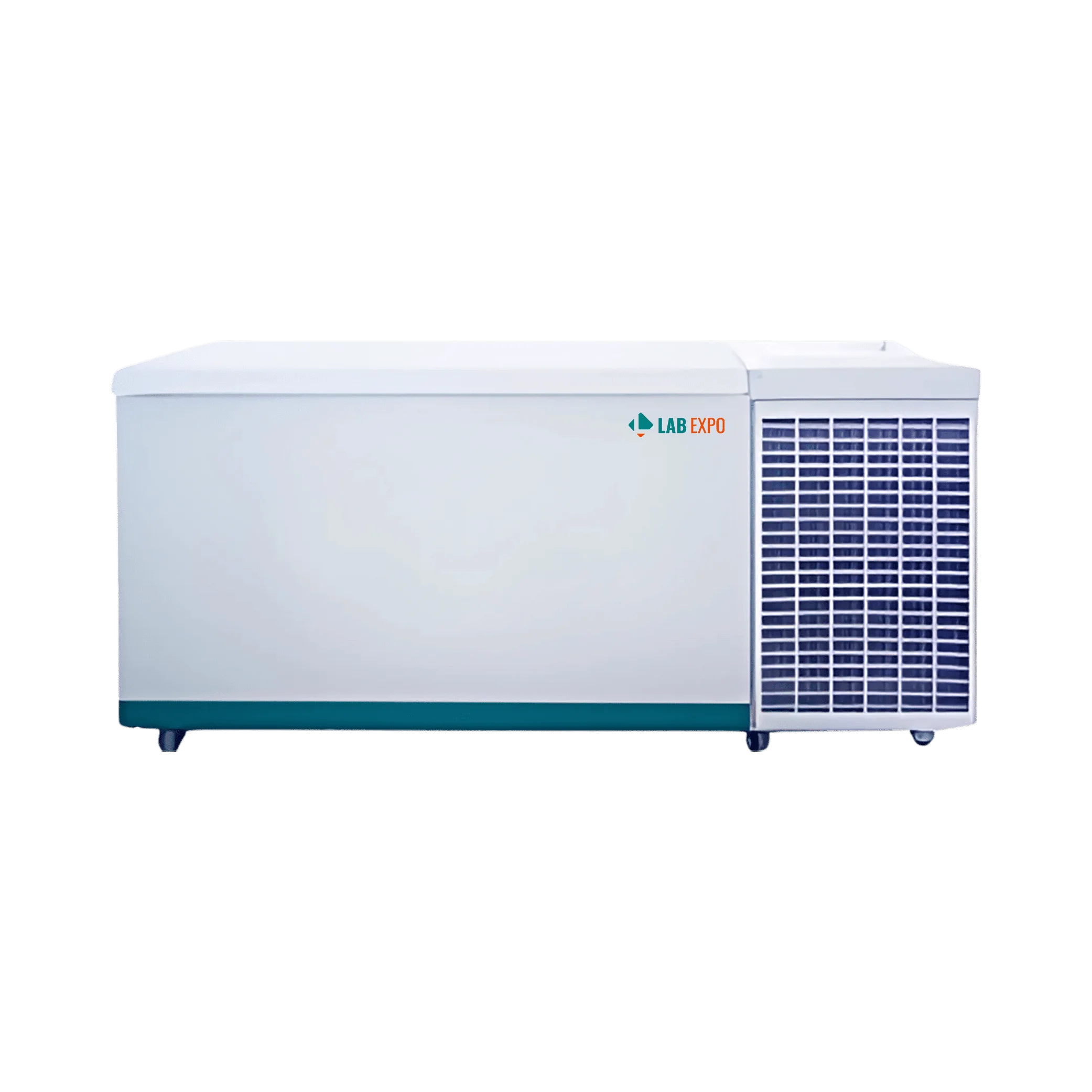

-152°C Ultra Low Chest Freezer 20A-CTF701

-152°C Ultra Low Chest Freezer 20A-CTF701

The -152°C Ultra Low Chest Freezer 20A-CTF701 is designed using four casters for easy handling and a lockable door to prevent unauthorized access. It is equipped with unipolar compressor oil-lubricated technology with unique refrigeration circulation. The ultra-low temperature freezer gives high performance and excellent quality and complies with CE, ISO9001, ISO14001, and ISO13485 standards. The freezer comes in 258L capacity & has CFC-free Tecumseh compressors and a mixture of refrigerants. The ultra-low temperature freezers have audio and visual alarms for power failure and system failure.

Specifications

Capacity 258 Liters
External Dimension 890 x 2005 x 1009 mm
Internal Dimension (W x D x H) 410 x 1140 x 552 mm
Power Supply 380 V / 50 Hz, 3Phase
Input Power 3000 W
Net Weight 300 Kg
Gross Weight 320 Kg

Features

  • Microprocessor-based temperature controller with digital temperature display allow user to maintain temperature between -110 °C to -152 °C with 1 °C precision control
  • For hazel free functioning freezer is equipped with filter blocking alarm, high or low temperature alarm, low battery alarm, door open alarm and system failure alarm
  • Refrigerant used is a mixture of R134a, R404a, R23, R410A, N2
  • Key board lock and password protected configuration page is installed with delayed start and safe stop interval between restart and being terminated
  • With 72 hours battery backup for printer and controller display
  • Stainless steel body with two times more effective 155mm thick heat insulation
  • Tecumseh compressor with German EBM fan motor
  • Optional: Chart recorder, CO2 back up, storage racks/boxes, remote alarm system

Applications

The -152 °C Ultra Low Chest Freezer 20A-CTF701 is used in the medical, clinical, and blood and its components preservation & research laboratories.
