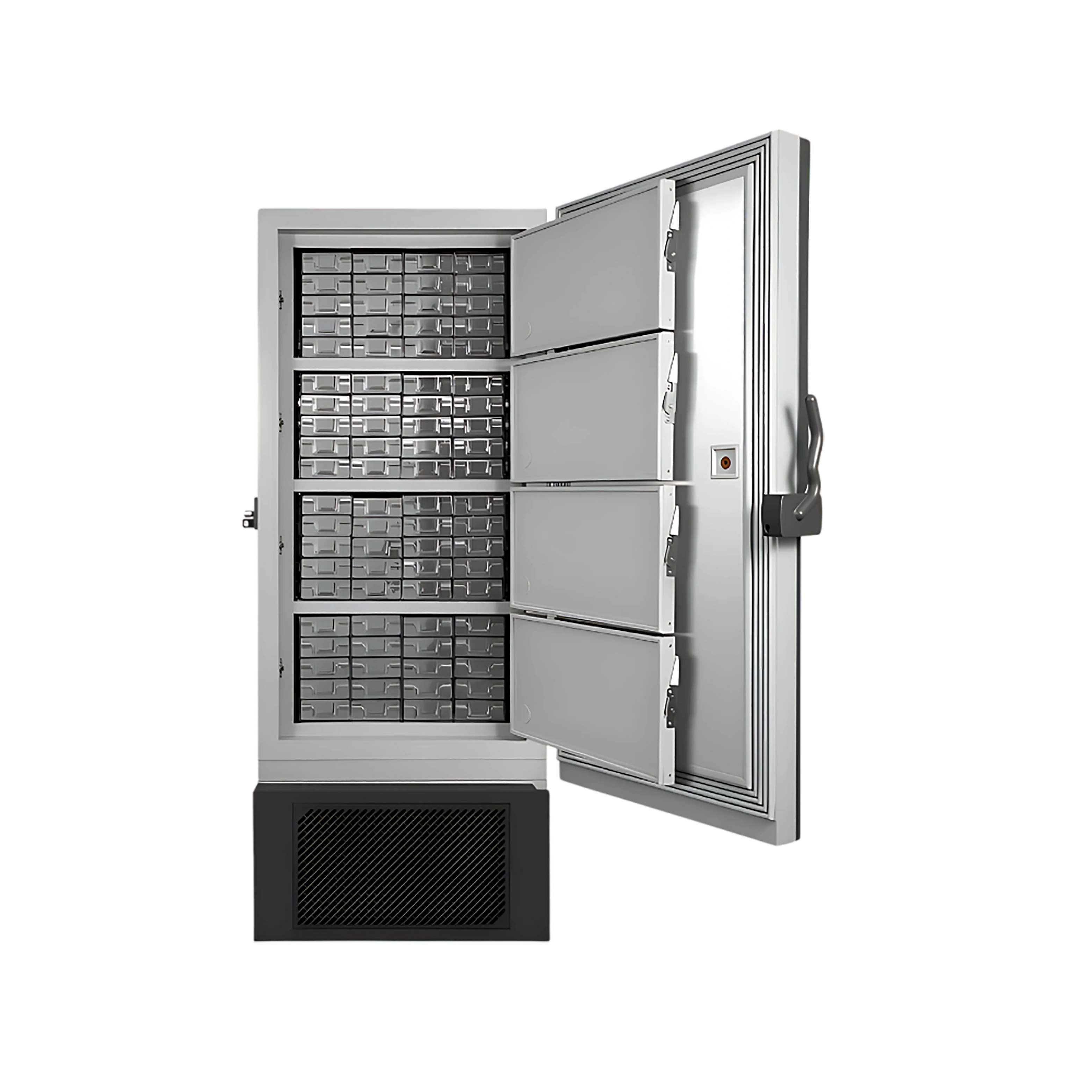

-86°C Ultra Low Upright Freezer LE-UPF501 offers a 358-liter capacity for reliable preservation of sensitive samples. It utilizes an advanced self-cascade cooling system to deliver consistent ultra-low temperature performance. Integrated microprocessor control system ensures accurate temperature monitoring. Equipped with user-friendly design for safe operation and easy sample access. Our -86°C Ultra Low Upright Freezer is ideal for long-term preservation in research, clinical, pharmaceutical, and industrial laboratories.
Specifications
| Capacity | 358 L / 12.64 Cu. Ft |
| Temperature Range | -40°C to -86°C |
| Temperature Accuracy | 0.1°C |
| Cabinet Type | Upright |
| Climate Class | N (16°C to 32°C) |
| Sound Level | 50 dB |
| Defrost Type | Manual |
| Cooling System | Self-Cascade |
| Refrigerant Type | Mix Refrigerant |
| 2ml Cryo Tube Quantity | 24000 |
| Controller | Microprocessor |
| Internal Material | PCM- Coated Steel |
| Display Panel | LED |
| Backup Battery Endurance | 15 Hours |
| Rated Current | 5.3 A |
| Power Consumption | 950 W |
| Power Supply | 115V/60Hz or 220V to 240V/50Hz |
| Internal Dimension | 450 × 583 × 1326 mm |
| Dimension | 795 × 885 × 1855 mm |
| Net Weight | 160 Kg |
| Gross Weight | 206 Kg |
Features
Applications
Function Implementation Clinical labs -86°C temperature range supports sensitive sample preservation Research facilities 358 L capacity enables storage of large sample quantities Pharmaceutical storage 0.1°C temperature accuracy ensures consistent conditions Industrial testing 950 W power consumption sustains continuous operation Quality control labs -40°C to -86°C temperature range enables flexible testing protocols
Lab Expo Ultra Low Upright Freezers support long-term ultralow storage where precise temperature control and organized vertical access are required for critical samples. This ultra low temperature upright freezer operates with microprocessor-regulated cooling to maintain stable setpoints at ultralow ranges. Digital monitoring manages alarms and recording, while secure locking, backup protection, and durable build ensure controlled operation and repeatable preservation performance for continuous laboratory and clinical use.
