V-shaped Air-out Cold Room Unit 17-VAC100
Product1
Product2

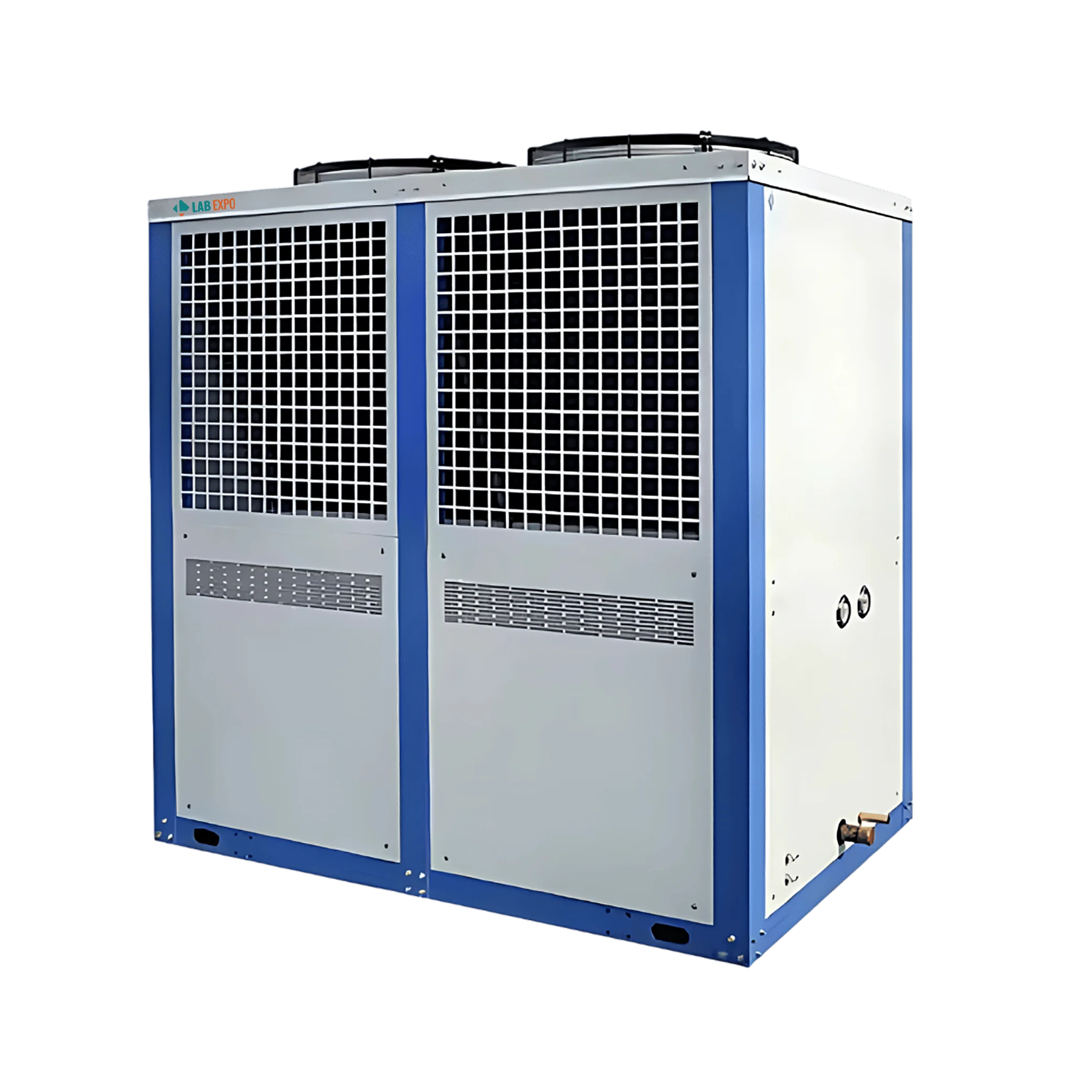

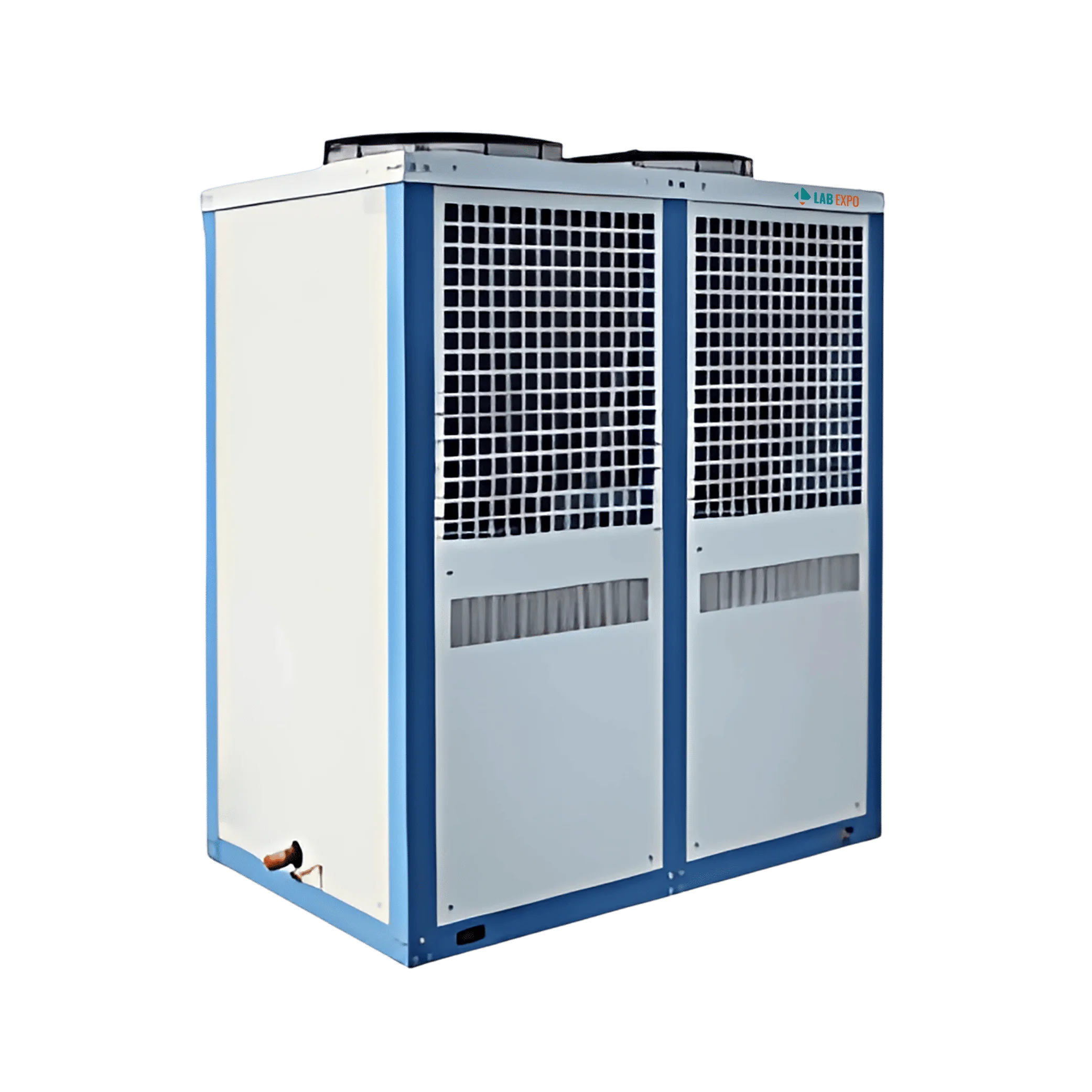

V-shaped Air-out Cold Room Unit 17-VAC100

V-shaped Air-out Cold Room Unit 17-VAC100 operates with an evaporating temperature of -15°C. It uses an internal thread heat exchange system to enhance the heat exchange effect for improved cooling efficiency. It maintains a suitable storage temperature range from -20°C to 10°C. Our cold storage rooms use R404A refrigerant for efficient and eco-friendly cooling.

$12,240.00 $ 10200

Specifications

Evaporating temperature -15 °C
Refrigerant R404A
Nominal working condition power 6190 W
Suitable storage temperature -20 °C to 10 °C
Power 380 V/3P/50 Hz
Control mode Electricity defrosting
Throttle modes Thermal expansion valve throttling
Compressor Hermetic scroll
Dimensions 1220 × 660 × 1300 mm
Weight 150 kgs

Features

  • Evaporating temperature -15 C with hermetic scroll compressor
  • Temperature range -20 C to 10 C with suitable storage conditions
  • Internal thread heat exchange system for enhanced cooling efficiency
  • Three-phase power supply 380 V/50 Hz for efficient operation
  • R404A refrigerant for efficient and eco-friendly cooling performance

Applications

FunctionImplementation
Cold Storage RoomsMaintains suitable storage temperature range from -20°C to 10°C
Pharmaceutical UnitsOperates with an evaporating temperature of -15°C
Low-Temperature LabsUses internal thread heat exchange system for enhanced cooling efficiency
Temperature-Sensitive StorageSupports storage temperatures up to 10°C
Industrial Cooling HubsUtilizes three-phase power supply 380V/50Hz for efficient operation

Catalog

V-shaped Air-out Cold Room Unit 17-VAC100 Catalog

Related Models Of V-shaped Air-out Cold Room

Lab Expo V-shaped Air-out Cold Room is designed for controlled refrigerated storage where airflow uniformity and temperature stability are critical for preserving sensitive materials. The system operates with a V-shaped air discharge pattern that distributes cold air evenly to eliminate thermal variation across the chamber. High-performance insulated panels and durable build support thermal efficiency, while digitally regulated temperature control ensures consistent, energy-efficient storage performance for continuous laboratory and industrial use.
