V-shaped Air-out Cold Room Unit 17-VAC103
Product1
Product2

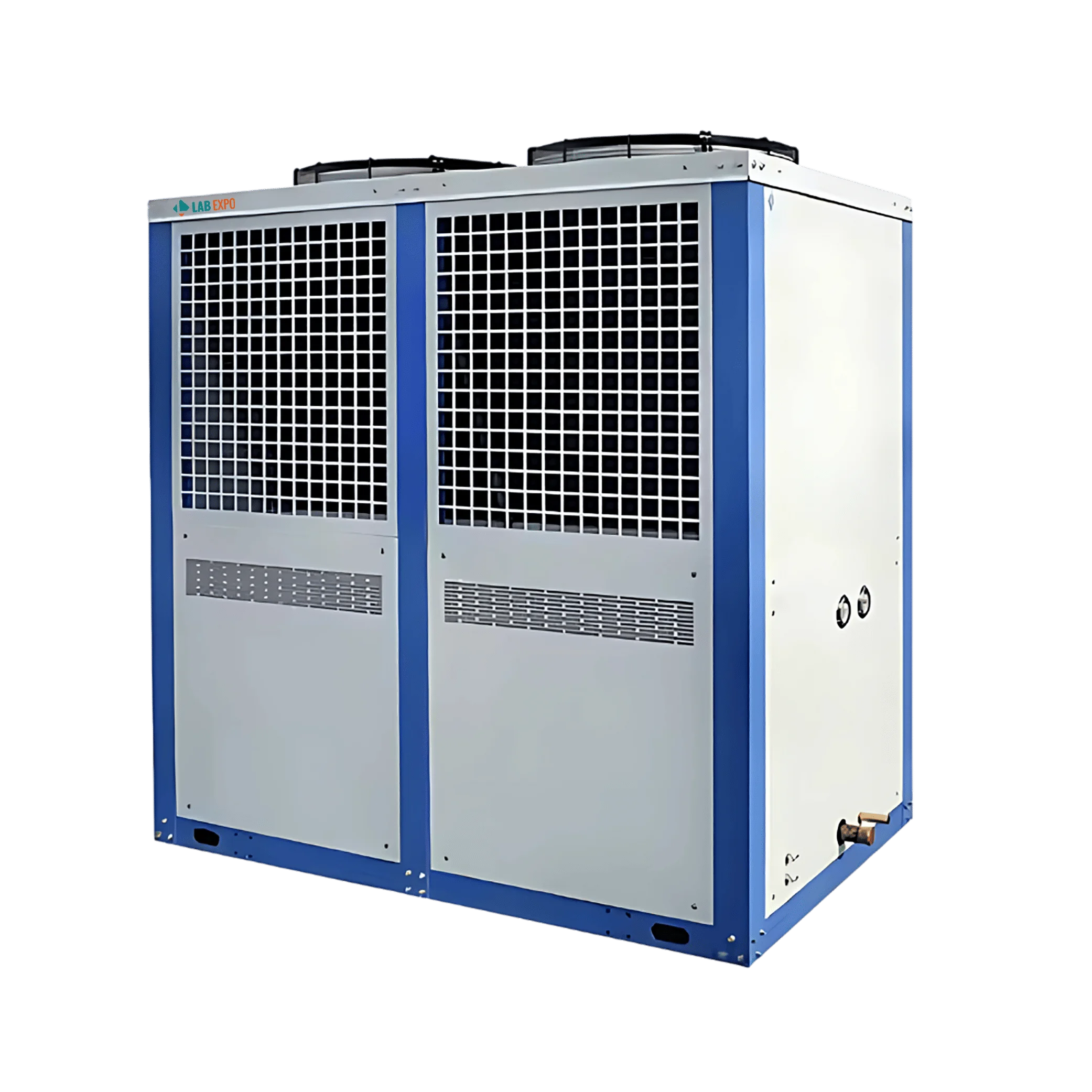

V-shaped Air-out Cold Room Unit 17-VAC103

V-shaped Air-out Cold Room Unit 17-VAC103 supports storage temperatures ranging from -20°C to 10°C. It ensures quick and effective removal of frost build-up through the electricity defrosting control mode. It operates at an evaporating temperature of -15°C, ensuring consistent cooling performance. Our cold storage room unit saves settings and automatically restarts after a power outage.

Specifications

Evaporating temperature -15 °C
Refrigerant R22
Nominal working condition power 6000 W
Suitable storage temperature -20 °C to 10 °C
Power 380 V/3P/50 Hz
Control mode Electricity defrosting
Throttle modes Thermal expansion valve throttling
Compressor Hermetic scroll
Dimensions 1220 × 660 × 1300 mm
Weight 150 kgs

Features

  • Evaporating temperature -15 °C with consistent cooling performance
  • Temperature range -20 °C to 10 °C with suitable storage conditions
  • Electricity defrosting control mode for quick and effective frost removal
  • Thermal expansion valve throttling for efficient refrigerant control
  • Hermetic scroll compressor for reliable and quiet operation

Applications

FunctionImplementation
Storage of sensitive materials±1°C accuracy supports repeatable analytical results
Pharmaceutical manufacturing units-20°C to 10°C enables controlled preservation
Laboratories with limited space1220 × 660 × 1300 mm accommodates compact installations
Facilities with variable power supply380 V/3P/50 Hz withstands stable operation
Research centers requiring precise control16-step program controls complex thermal sequences

Catalog

V-shaped Air-out Cold Room Unit 17-VAC103 Catalog

Related Models Of V-shaped Air-out Cold Room

Lab Expo V-shaped Air-out Cold Room is designed for controlled refrigerated storage where airflow uniformity and temperature stability are critical for preserving sensitive materials. The system operates with a V-shaped air discharge pattern that distributes cold air evenly to eliminate thermal variation across the chamber. High-performance insulated panels and durable build support thermal efficiency, while digitally regulated temperature control ensures consistent, energy-efficient storage performance for continuous laboratory and industrial use.
