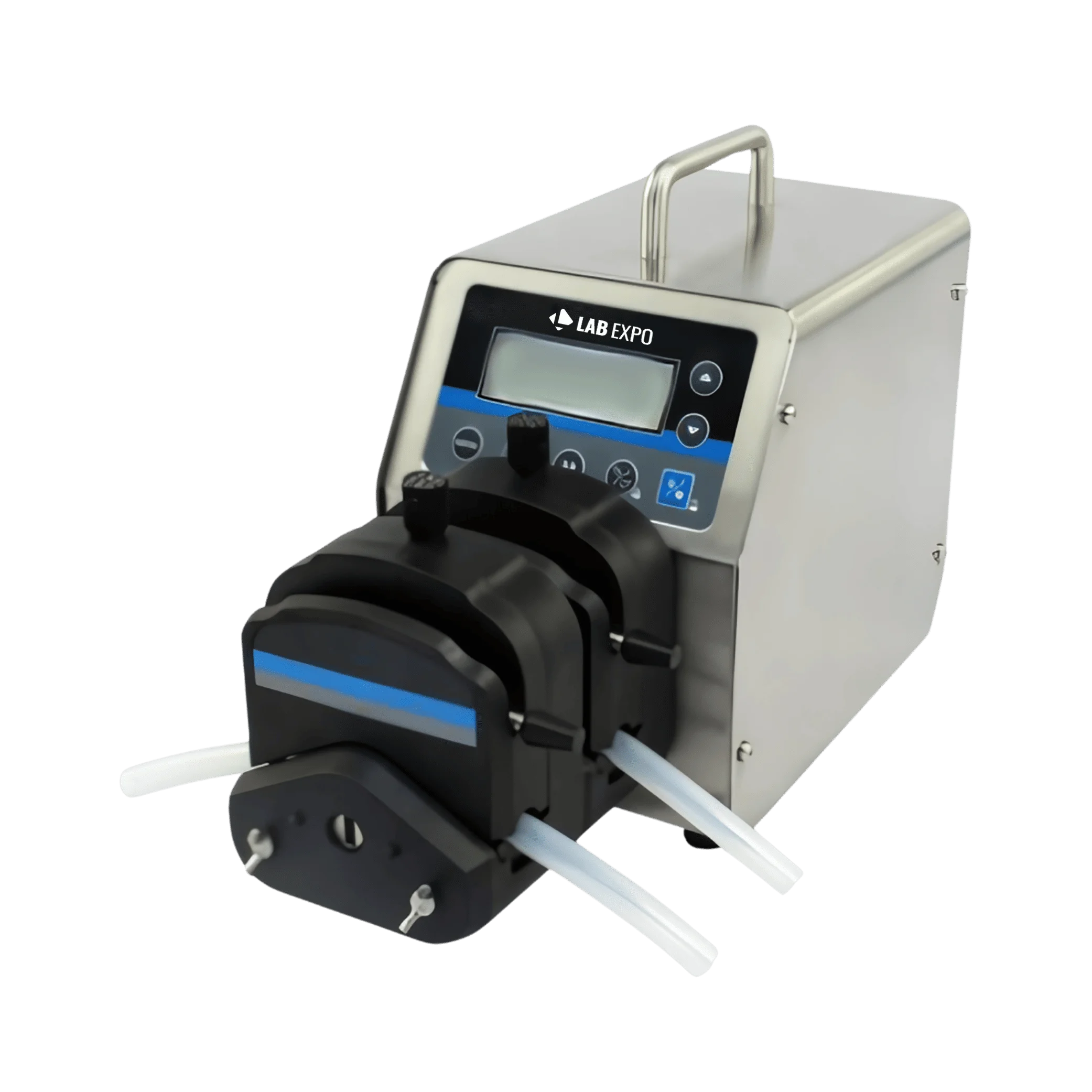

Variable Speed Peristaltic Pump 51-VPP500

Variable Speed Peristaltic Pump 51-VPP500

Variable speed peristaltic pump is a twenty-four channeled peristaltic pump designed to meet laboratory liquid handling needs. Equipped with a flow range of from 0.00011 to 1700 mL/min and speed accuracy which allows reversible operation to pump in both directions. Provides high levels of volumetric accuracy without contaminating the fluid during the operation. Interchangeable pump heads help in delivering smooth and low pulse flows.

$3,984.00 $ 3320

Specifications

Flow Range 0.00011-1700 mL/min
Flow Accuracy 0.5 %.
Speed Range 0.1-150 rpm
No of channel 24
Speed Resolution ( 0.1 ~ 100 rpm ) 0.1 rpm
Speed Resolution ( 100 ~ 350 rpm ) 1 rpm
Ambient Temperature 0 ~ 40 °C
Relative Humidity < 80 %
IP grade IP 31
Power supply AC 220 V ± 10 % , 50 Hz / 60 Hz
Power Consumption < 40 W
Dimensions ( L x W x H ) 285 x 150 x 195 mm
Weight 6.5 kg

Features

  • Digital speed indication
  • Portable size
  • Autosave’s running parameters on power or system failure
  • Reversible operation allowing pumping in both directions
  • Easy liquid auto dispension by time or volume
  • Multi channels with interchangeable pump heads for varied applications
  • Dust and moisture proof circuit board
  • Adjustable rotating speed
  • Robust and protected with ABS plastic housing
  • Low noise operation

Pump Heads and Tubing

Model No. Pump head Flow rate No of Channels Tubing size (mm)
51-VPP500A 0.00016-26 per channel (mL/min) 8 Wall : 0.8 ~ 1
51-VPP500B 0.00011-20 26 per channel (mL/min) 8 Wall : 0.8 ~ 1
51-VPP500C 0.00016-26 26 per channel (mL/min) 12 Wall : 0.8 ~ 1
51-VPP500D 0.00011-20 26 per channel (mL/min) 12 Wall : 0.8 ~ 1
51-VPP500E 0.00016-26 26 per channel (mL/min) 16 Wall : 0.8 ~ 1
51-VPP500F 0.00011-20 26 per channel (mL/min) 16 Wall : 0.8 ~ 1
51-VPP500G 0.00016-26 26 per channel (mL/min) 24 Wall : 0.8 ~ 1
51-VPP500H 0.00011-20 26 per channel (mL/min) 24 Wall : 0.8 ~ 1
51-VPP500I 0.0002-82 26 per channel (mL/min) 8 Wall : 0.8 ~ 1
51-VPP500J 0.006-420 26 per channel (mL/min) 1 Wall : 0.8 ~ 1
51-VPP500K 0.16-420 26 per channel (mL/min) 1 Wall : 0.8 ~ 1
51-VPP500L 0.006-420 26 per channel (mL/min) 2 Wall : 0.8 ~ 1
51-VPP500M 0.16-420 26 per channel (mL/min) 2 Wall : 0.8 ~ 1
51-VPP500N 0.006-420 26 per channel (mL/min) 4 Wall : 0.8 ~ 1
51-VPP500O 0.16-420 26 per channel (mL/min) 4 Wall : 0.8 ~ 1
51-VPP500P 1-1700 26 per channel (mL/min) 1 Wall : 0.8 ~ 1
51-VPP500Q 1-1700 26 per channel (mL/min) 2 Wall : 0.8 ~ 1
51-VPP500R 0.05-400 26 per channel (mL/min) 4 Wall : 0.8 ~ 1
51-VPP500S 0.006-570 26 per channel (mL/min) 1 Wall : 0.8 ~ 1
51-VPP500T 0.006-720 26 per channel (mL/min) 1 Wall : 0.8 ~ 1
51-VPP500U 0.006-570 26 per channel (mL/min) 2 Wall : 0.8 ~ 1
51-VPP500V 0.006-720 26 per channel (mL/min) 2 Wall : 0.8 ~ 1
51-VPP500W 0.006-570 26 per channel (mL/min) 4 Wall : 0.8 ~ 1
51-VPP500X 0.006-720 26 per channel (mL/min) 4 Wall : 0.8 ~ 1

Catalog

Variable Speed Peristaltic Pump 51-VPP500 Catalog

Related Models Of Variable Speed Peristaltic Pump

Lab Expo Variable Speed Peristaltic Pumps come in a variety of speed settings for optimal fluid delivery. These pumps provide adjustable flow rates with high accuracy. They are available with multiple channels and interchangeable pump heads, enhancing their versatility. Equipped with reversible operation, they offer flexibility for diverse applications. Our pumps are compact, portable and utilized across pharmaceutical industries and research laboratories.
