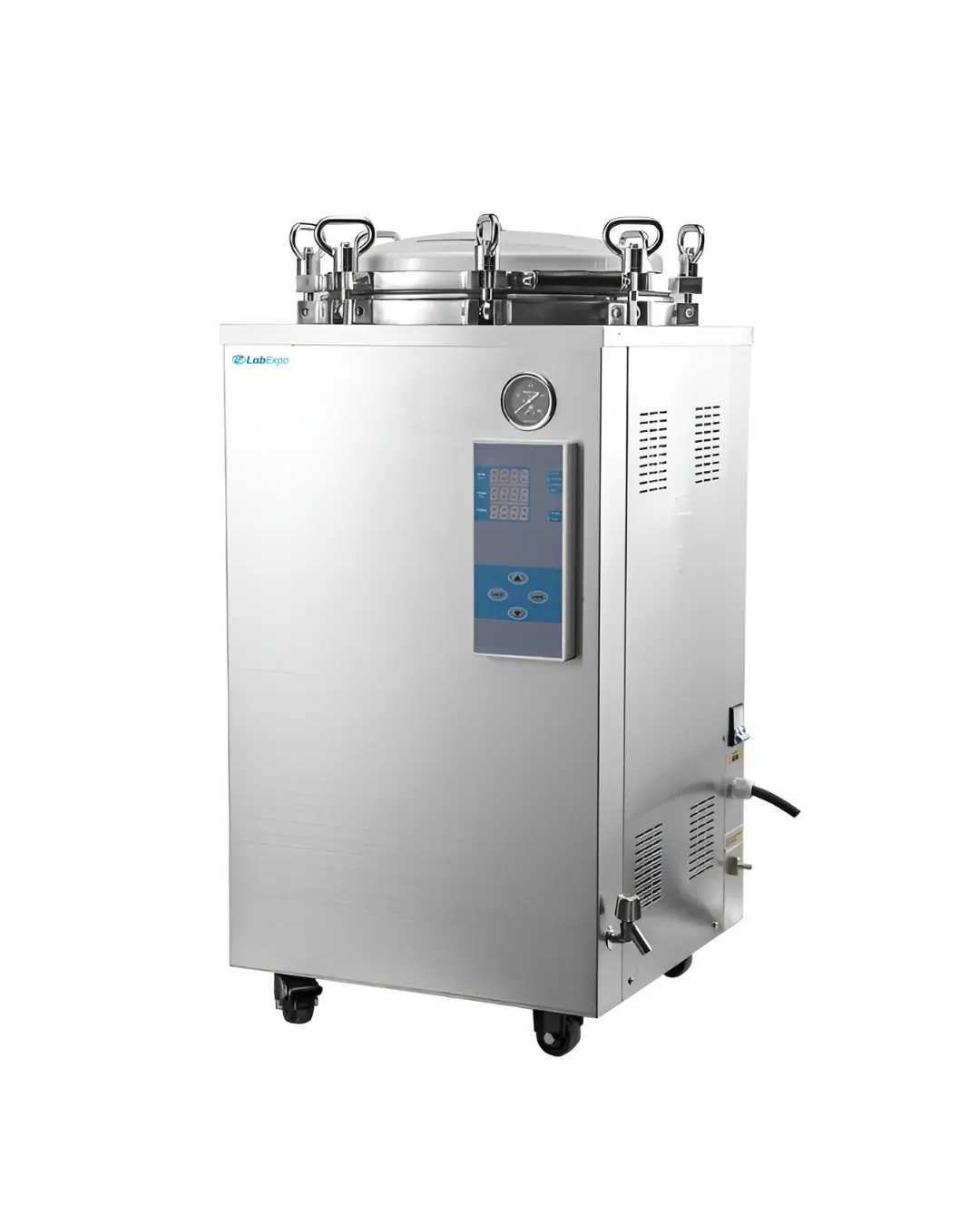

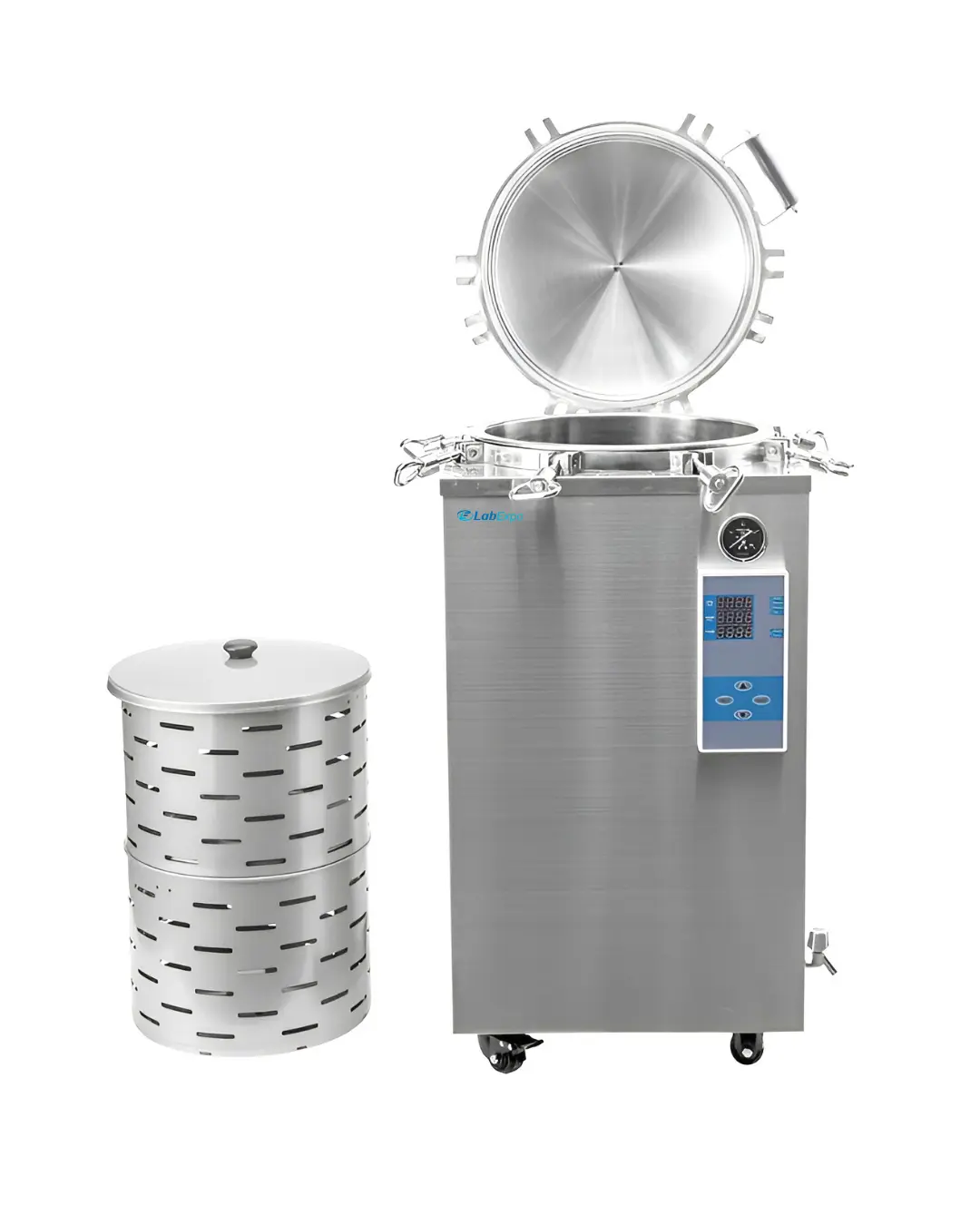

Vertical Autoclave LE-VA406 offers a large 150 L volume for handling high-capacity sterilization needs. It features a spacious chamber with dimensions of Ø510 × 740 mm to provide ample room. Equipped with an auto shut-off function that enhances safety. Built with stainless steel material for durability and corrosion resistance. Our Vertical Autoclave ensure safe and dependable operation with advanced overheat and overpressure protection.
Specifications
| Sterilizing Volume | 150 L |
| Chamber Dimension | Ø510 × 740 mm |
| Working Pressure | 0.22 MPa |
| Max. Working Temperature | 134 °C |
| Max. Working Pressure | 0.23 MPa |
| Heat Average | ≤ ±1 °C |
| Temperature Adjust Range | 105 to 134 °C |
| Timer Range | 0 to 99 min / 0 to 99 h 59 min |
| Power Consumption | 3 × 2.0 kW |
| Power Supply | AC 220 V / 50 Hz |
| Dimensions | 660 × 640 × 1130 mm |
| Transport Dimensions | 730 × 730 × 1230 mm |
| Total CBM | 0.66 CBM |
| Net Weight | 111 kg |
| Gross Weight | 130 kg |
Features
Applications
Function Implementation Hospitals Sterilizing surgical instruments & textiles Research laboratories Processing glassware & culture media Pharmaceutical facilities Steam sterilization of production materials Food industry Heat treatment of tools & containers Industrial use Sterilizing heat-resistant components
Optional Accessories
Printer function
Drying function
Seal
Lab Expo Vertical Autoclave supports space-efficient sterilization operations where top-loading access and controlled steam processing are required for routine instrument handling. This vertical sterilizer operates using high-temperature pressurized steam and is Manufactured with a stainless steel chamber for uniform heat distribution. Digital controls manage temperature, pressure, and cycle timing, while integrated over-pressure and over-temperature protection with automatic shut-off ensure consistent, controlled cycle completion for daily sterilization use.
