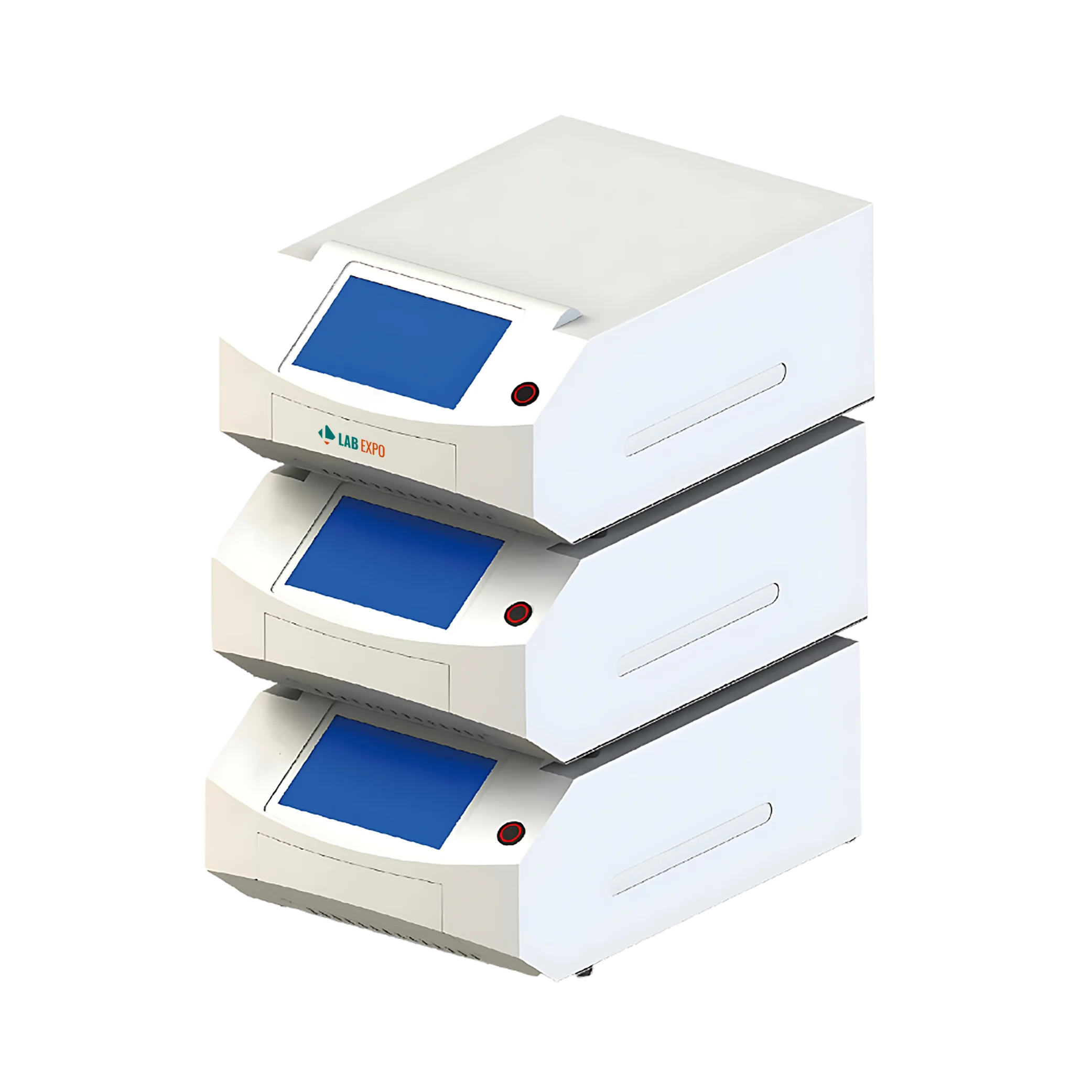

Advanced Thermal Cycler LE-ATC202 features dual temperature control and a 384-well module for precise, high-throughput thermal cycling. It includes an analog tube holder and thermal block to ensure consistent performance. Designed with a gland-style heated lid, it adjusts in height for secure sealing. Equipped with a glove-compatible capacitive touchscreen, it offers intuitive operation. Our Thermal Cycler supports the storage of numerous PCR programs for an efficient workflow.
Specifications
| Sample Stage Module | 384-well module |
| Applicable Tubes/Plates | 384-well plate (full hem, half hem) |
| U Disk Function | USB flash drive |
| Display | 7" capacitive touch screen, glove-compatible |
| Temperature Control Mode | Analog tube (Tube), sample stage (Block) |
| Sample Station Temperature Range | 0℃ to 99.9℃ |
| Maximum Heating Range | 5℃ / sec |
| Maximum Cooling Rate | 5℃ / sec |
| Sample Station Temperature Uniformity | ≤0.2℃ |
| Sample Station Temperature Accuracy | ≤0.1℃ |
| Temperature Display Branch Rate | 0.1℃ |
| Variable Temperature Speed | 0.1℃ to 0.4℃ |
| Heated Lid Type | Gland type, adaptive height |
| Heated Lid Temp | 30℃ to 110℃ (adjustable) |
| Heated Lid Heating Rate | ≤1 min 40 sec (to 105℃) |
| Lid Auto Close | Below 30℃ or after program ends |
| Stored Programs | 15,000 PCS |
| Program Steps | Max 30 (supports nested loops) |
| Cycle Count | 10,000 |
| Time Increases/Decreases | 1 to 120 sec |
| Temperature Increases/Decreases | 0.1℃ to 10℃ |
| Power-Off Protection | Yes |
| Auto Pause | Yes |
| Program Report | Detailed run log for analysis |
| Connected Computer | Yes |
| Power Consumption | 550W |
| Power Supply | 85V to 265V, 50/60 Hz |
| Dimensions | 260 × 410 × 245 mm |
| Weight | 7.3 kg |
Features
Applications
Advanced Thermal Cycler LE-ATC202 is essential in molecular biology, clinical diagnostics, forensic science, agricultural studies, and pharmaceutical research, supporting applications such as DNA amplification, gene expression profiling, mutation analysis, pathogen detection, and cloning.
Lab Expo offers Advanced Thermal Cyclers with a versatile block that accommodates many samples, allowing for efficient and flexible PCR processing. They provide a broad temperature range, ensuring precise control for various thermal cycling protocols. Our thermal cyclers feature six high-performance Peltier modules, ensuring durability and an impressive cycle life. They operate on the latest Windows OS, offering seamless control, printing, and data storage through a USB interface. Our cyclers feature high-definition LCD ensuring clear visibility for easy monitoring.
