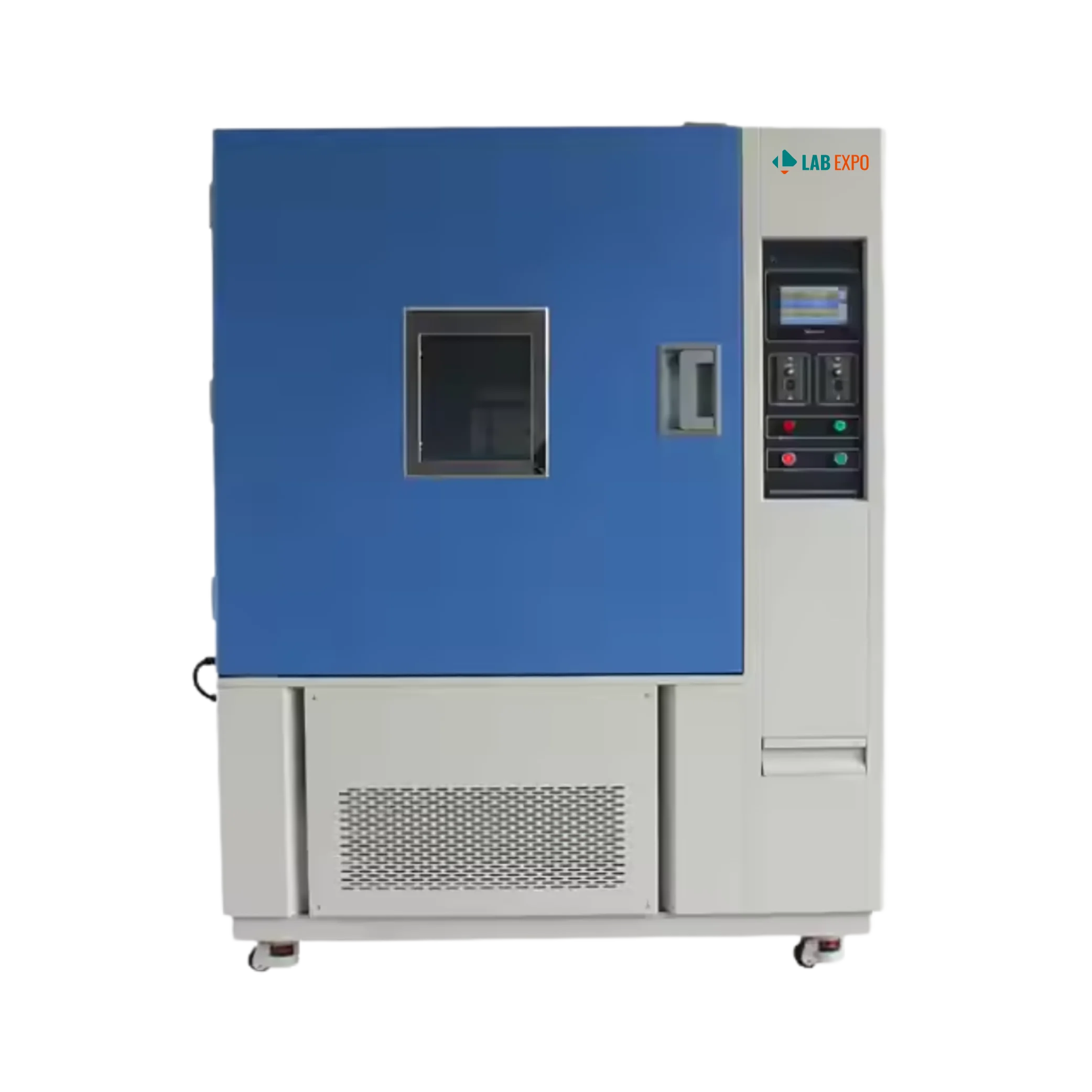

Temperature & Humidity Test Chamber 24-TTC205

Temperature & Humidity Test Chamber 24-TTC205 has a capacity of 100 liters allowing ample space for test samples. It operates from -20℃ to 150℃, -40℃ to 150℃, or -70℃ to 150℃ with a humidity range of 20% to 98% RH for precise control. It has a toughened double-layered glass window for clear viewing without opening the chamber. Our test chamber has an automatic shutdown function that activates in case of overheating to ensure safety.

Specifications

Capacity 100 L
Temperature range (-20)℃ to 150 ℃ ,(-40) ℃ to 150 ℃ , (-70 )℃ to 150 ℃
Temperature cooling rate 5 ℃ / min
Temperature heating rate 3 ℃ / min
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity range 20 % to 98 % R.H
Humidity deviation ± 2.5 % RH
High temperature 180 ℃
Lowest humidity 10 % RH
Internal dimension (D x W x H) 400 x 500 x 500 mm
Overall dimension (D x W x H) 860 x 1050 x 1620 mm

Features

  • Easy to use LCD touch screen controller and a graphic display to allow monitoring of the set and actual working parameters
  • Humidity controller
  • Corrosion resistant interior chamber
  • Observation window: Built-in toughened double layered glass
  • Independent R and D software
  • Humidity regulation with capacitive humidity sensor
  • Inner chamber material : Stainless steel plate
  • Thermal-insulating material resistant to high temperature and density
  • Compressor overload switch
  • Unit shuts down after alarm for over heating
  • Safety self-protection function includes short circuit, over temperature, motor overheating, compressor pressure, fuse failure
  • Windows with anti - sweat heater device to prevent water from vapor condensation and water droplets

Applications

Temperature & Humidity Test Chamber is extensively used in basic and advanced research, pharmaceutical industries, chemical industries, food and beverage industry.

Catalog

Temperature & Humidity Test Chamber 24-TTC205 Catalog
