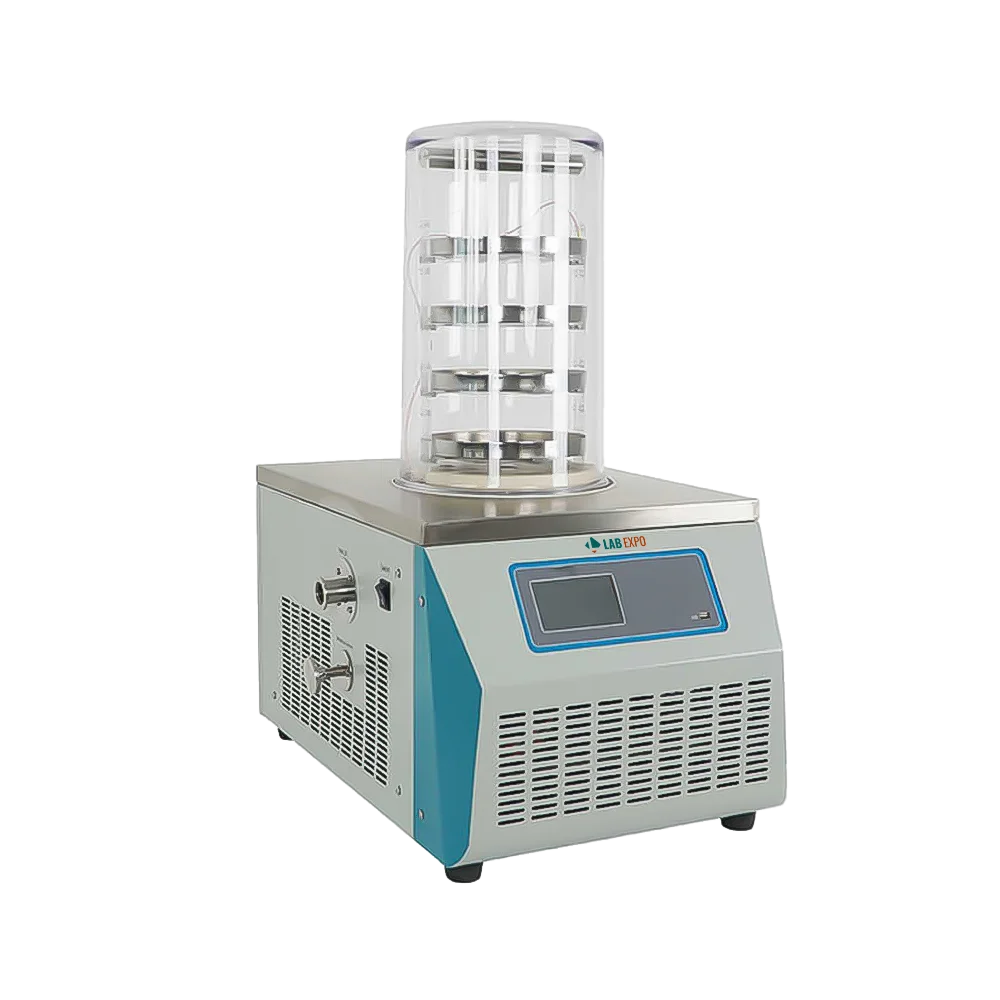

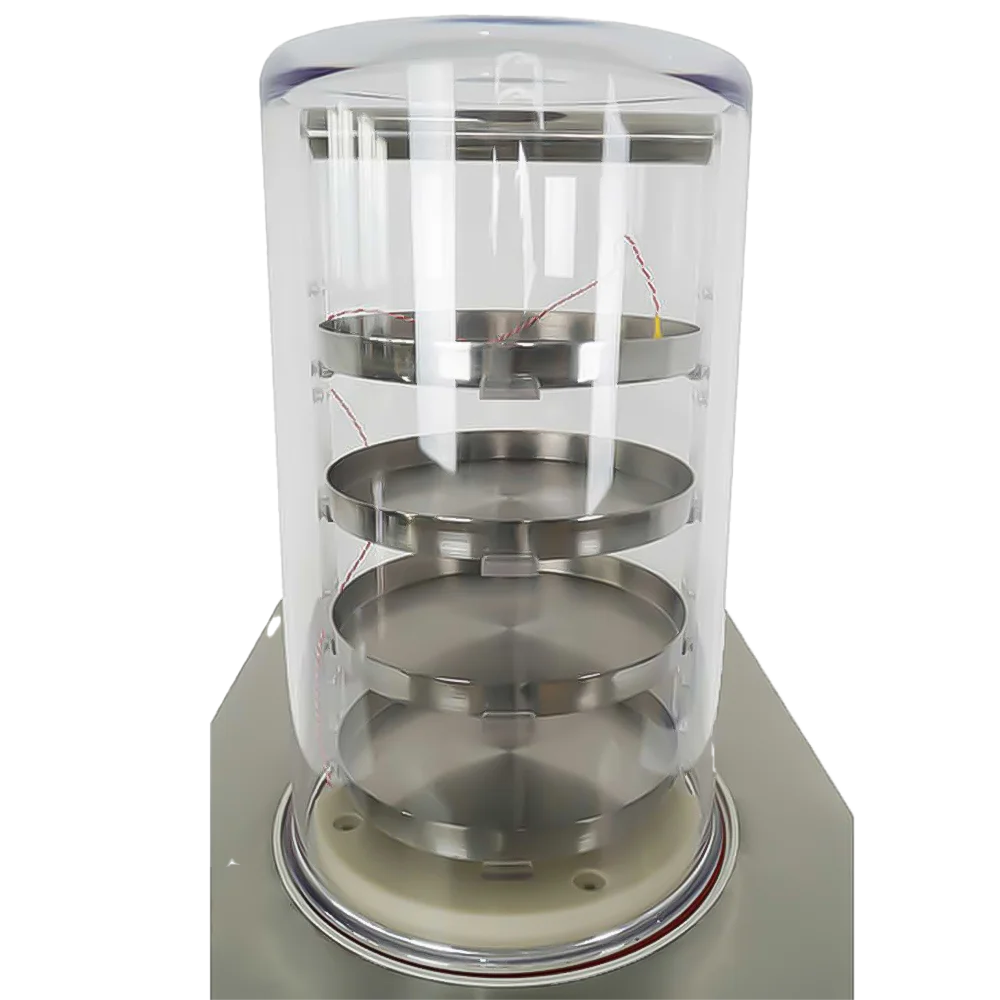

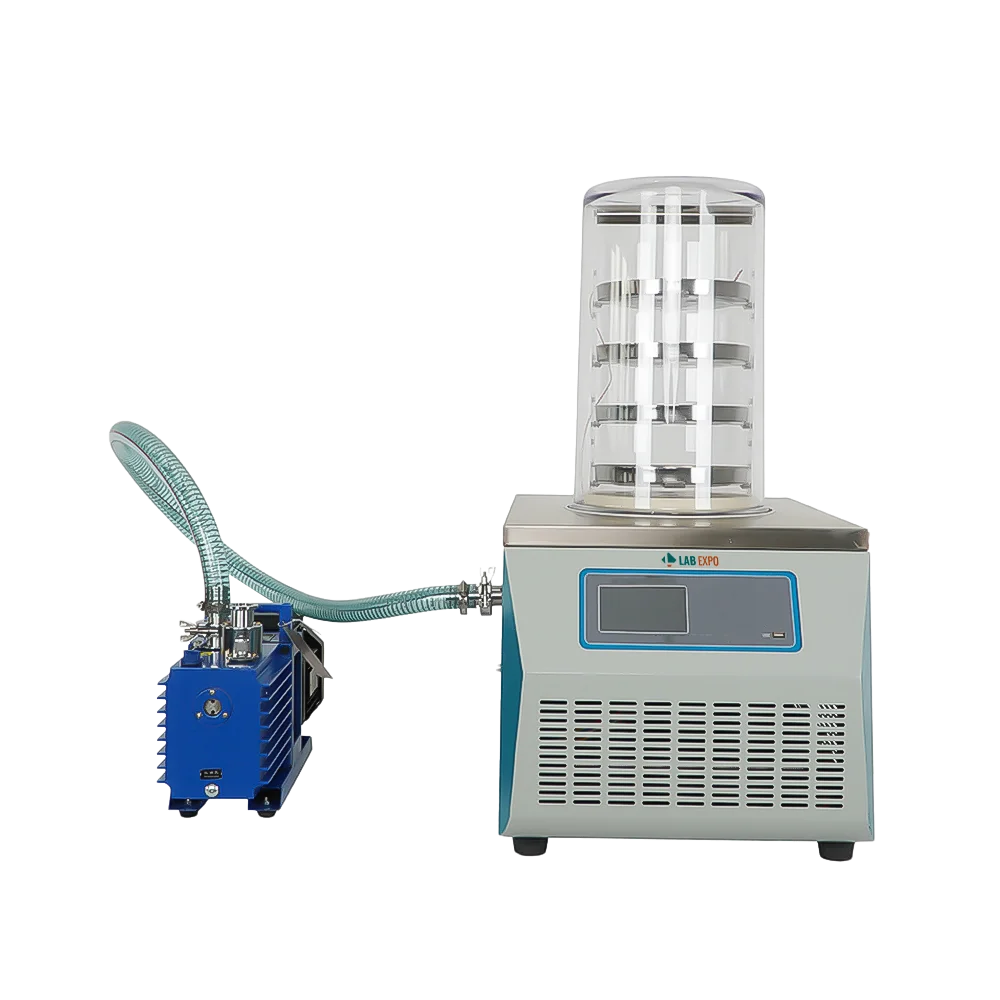

Standard Freeze Dryer is a compact table-top unit with 3 kg condenser capacity and condenser temperature of - 80 °C for specimen’s containing solvents. Equipped with four to six shelves allowing any shape or size of sample to be freeze dried. Precise vacuum control enables faster freeze drying and reproducible results. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.
Specifications
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Freeze drying area | 0.18 m² |
| Bulk capacity | 1.8 L |
| Display | LCD touch screen |
| Shelves | 4 - 6 shelves |
| Shelves dimension | Φ 200 mm |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Dimensions | 830 x 680 x ( 400 + 430 ) mm |
| Weight | 125 kg |
Features
Applications
Function Implementation Research labs 0.18 m² freeze drying area enables small-scale specimen processing Clinical settings -80 °C condenser temperature supports freeze drying of solvent-containing specimens Industrial facilities 220 V / 50 Hz voltage accommodates standard power supplies Quality control labs < 10 Pa final vacuum ensures precise control over freeze drying conditions Pharmaceutical labs 3 kg / 24 h condenser capacity facilitates batch processing of freeze-dried materials
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
