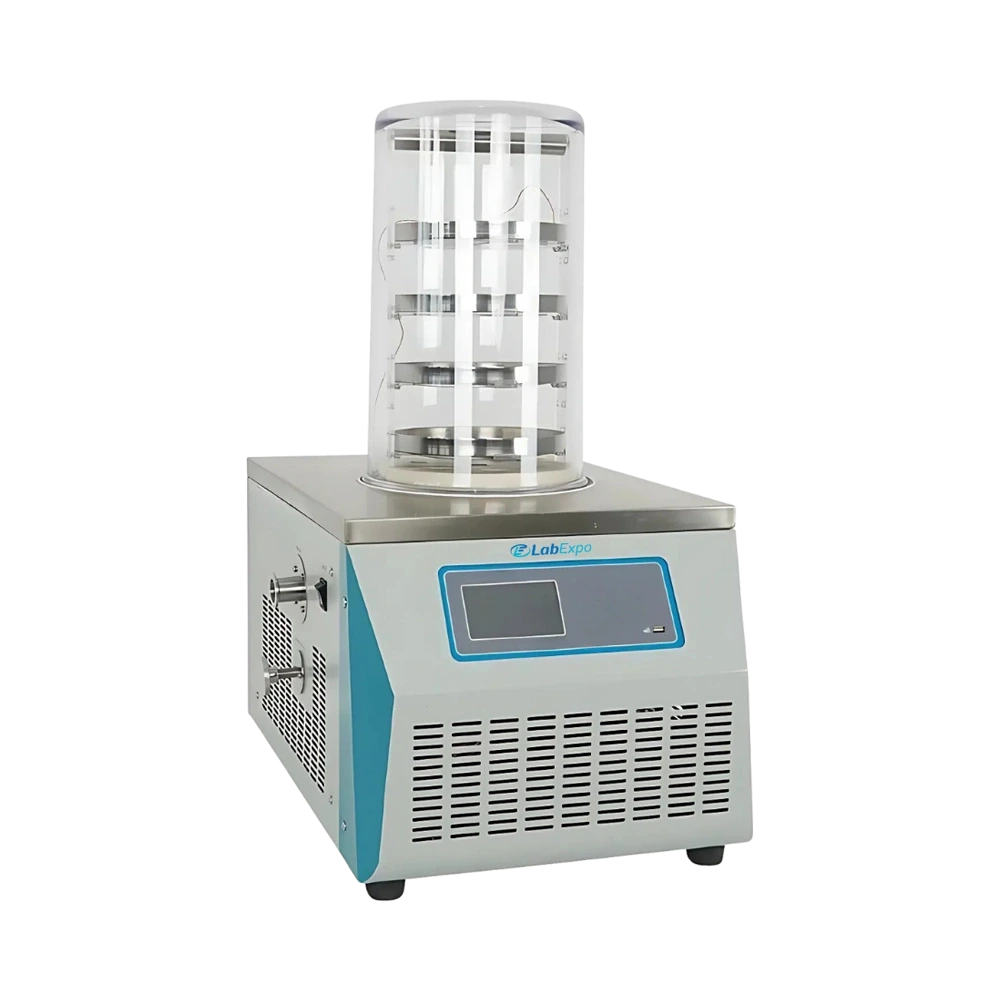

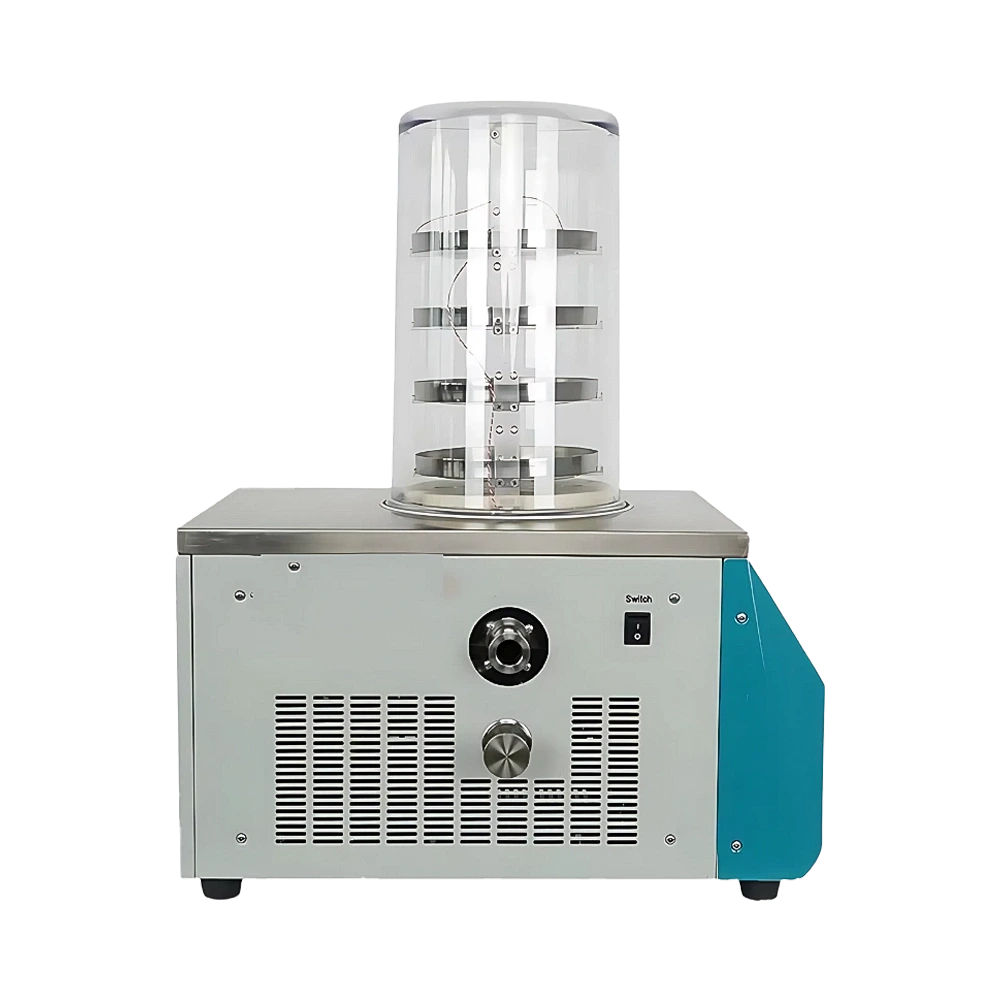

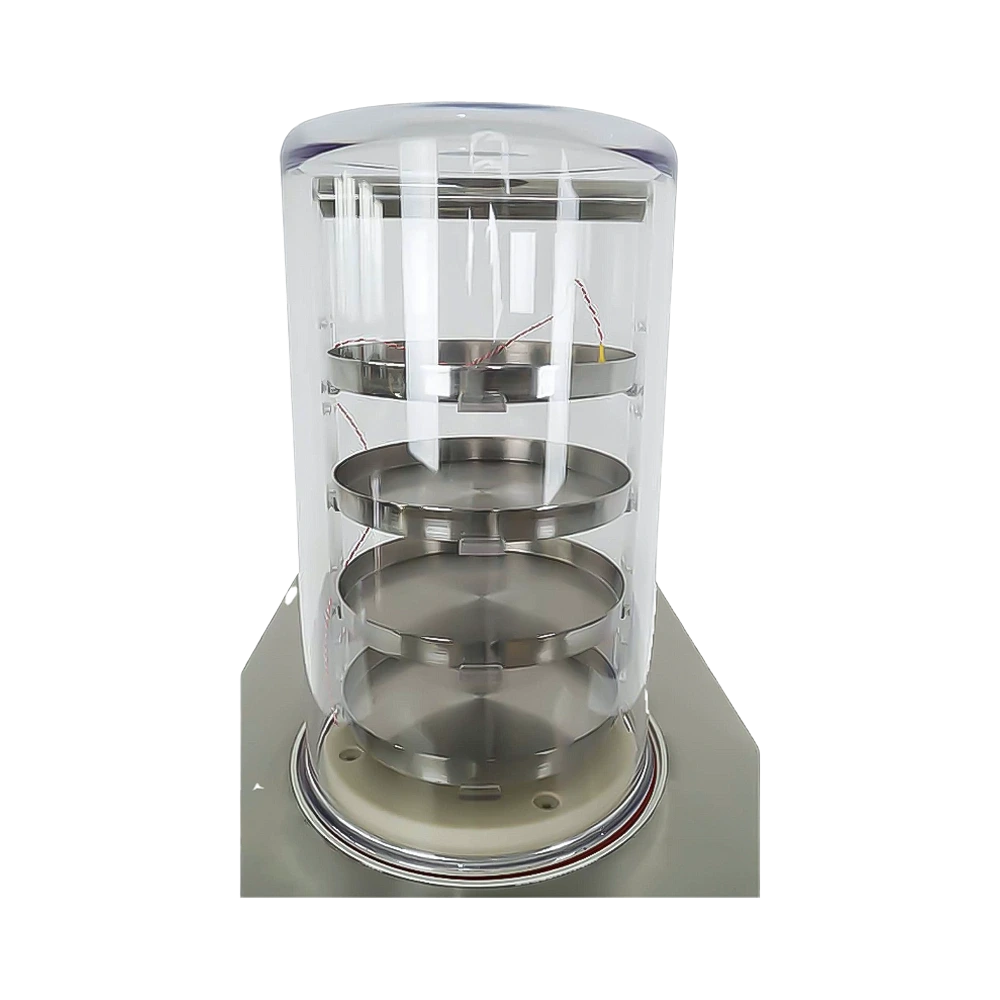

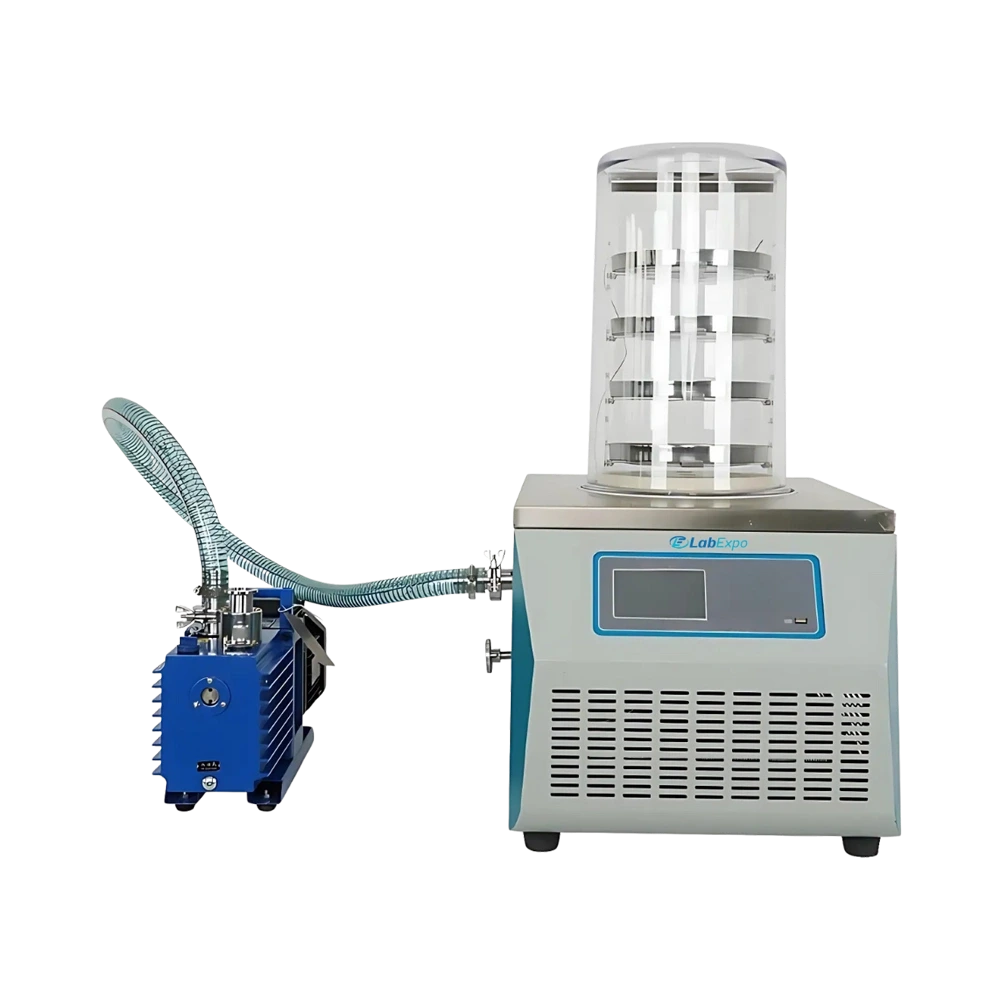

Benchtop T-type Freeze Dryer LE-BTF202 is a bio freeze with 3 kg condenser capacity and -80°C temperature, ideal for solvent-based drying. It offers a T-type manifold for several ampoules using rubber adaptors. Equipped with an oil mist filter, maintains vacuum pressure that extends equipment life. Integrated with oil return device ensures smooth performance and prevents leakage. Our Benchtop T-type Freeze Dryer is suitable for pharmaceutical and other laboratory applications.
Specifications
| Condenser temperature | - 80 °C |
| Condenser capacity | 3 kg / 24 h |
| Cold trap depth | 150 mm |
| Pumping rate | 2 L / second |
| T-frame size | 430 × 480 mm |
| Number of sealed valves | 24 Pieces for 24 ampoules |
| Cold trap diameter | Φ 215 mm |
| Final Vacuum | Less than 10 Pa |
| Power Supply | 220 V / 50 Hz |
| Power consumption | 970 W |
| Internal Dimension | 615 × 450 × 370 mm |
| External Dimension | 615 × 450 × 440 mm |
| Weight | 41 Kg |
Features
Applications
Function Implementation Research labs 970 W powers continuous freeze drying operations Pharmaceutical applications -80 °C condenser temperature enables solvent-based drying Industrial freeze drying 3 kg / 24 h condenser capacity supports high-volume drying Quality control labs Less than 10 Pa final vacuum ensures precise drying control Clinical sample prep 2 L / second pumping rate facilitates rapid freeze drying cycles
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
