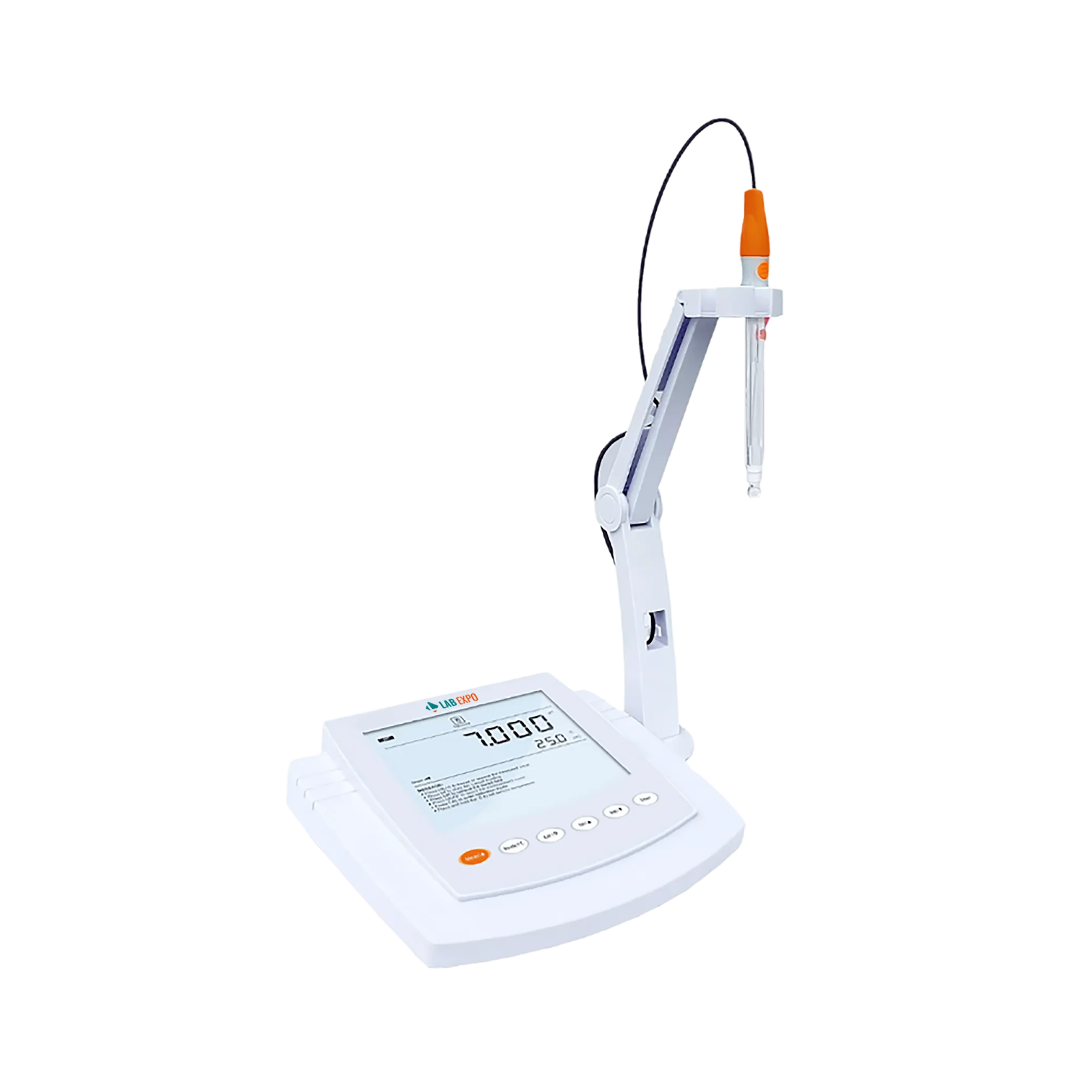

Benchtop pH meter 25-BPM103

Lab Expo offers Benchtop pH Meter 25-BPM103 designed to measure -2.000 to 20.000 pH range and is suitable for daily pH measurement, and testing. 1 to 5 points push-button calibration is performed using standard USA or NIST pH buffers & 1 point calibration to measure ORP. It offers automatic or manual temperature compensation mode for pH measurements. The pH meter with a sleek design has an easy-to-read backlit LCD screen that shows pH measurements & temperature simultaneously.

Specifications

pH measurement range -2.000 to 20.000 pH
pH accuracy ± 0.002 pH
Calibration points 1-5 points
Calibration solutions USA, NIST, DIN or user defined
ORP measurement range -1999.9 to 1999.9 mV
ORP accuracy ±0.2 mV
ORP calibration points 1 point
ORP calibration range ±200 mV
ORP calibration solutions mV & relative mV
Temperature compensation 0 to 100°C, 32 to 212°F
Compensation mode Manual or automatic
Stability conditions Low or high
Calibration due 0 to 31 days
memory Stores up to 500 data sets
Output USB communication interface
Connector BNC
Display LCD
Dimension (L*W*H) 210×188×60 mm
Weight 1.5 kg
Power DC5V using AC adapter, AC220V /50 Hz

Features

  • pH Mode Features:
  • Equipped with white backlit LCD display
  • pH measurement range -2.000 to 20.000 pH
  • 1 to 5 points push button calibration to automatically identify pH buffer
  • Automatic electrode slope display, helps the operator when to replace the sensor
  • Automatic temperature compensation for accurate measured value over the entire range
  • Universal BNC connector
  • Built-in solution holder
  • ORP Mode Features:
  • ORP measurement range -1999.9 to 1999.9 mV
  • Single point offset calibration to adjust the display value to a known standard
  • Relative & absolute mV measurements for accurate ORP readings
  • Common Features:
  • Calibration due reminder informs operator to calibrate the meter regularly
  • Stability indicator displays the status of current measurement
  • Auto hold function freezes stable, final readings for better viewing and recording
  • Manual temperature calibration to rectify the deviations in temperature
  • Automatic temperature compensation for accurate measured value over the entire range
  • Selectable temperature units (°C or °F) for different application requirements
  • Expanded memory stores and recalls up to 500 readings
  • Help message as an operational guide, helps users for quick access to the parameters
  • Reset function automatically resumes all the setting back to factory default options
  • Store data is transferrable into computer via USB communication interface

Applications

The benchtop pH meter can be used for daily measurement of pH, ORP & temperature at schools, colleges & research laboratories & water testing plants.

Standard Accessories

BNC pH Electrode
Temperature probe
pH buffer pouches (pH 4.01/7.00/10.01)
USB cable
Dc5V power adapter

Optional Accessories

pH Electrode
pH buffer pouches (pH 4.01/6.98/9.18) NIST
pH buffer pouches (pH 4.01/7.00/10.01) USA
Temperature probe
