Biological Microscope 43-BMS100
Product1
Product2

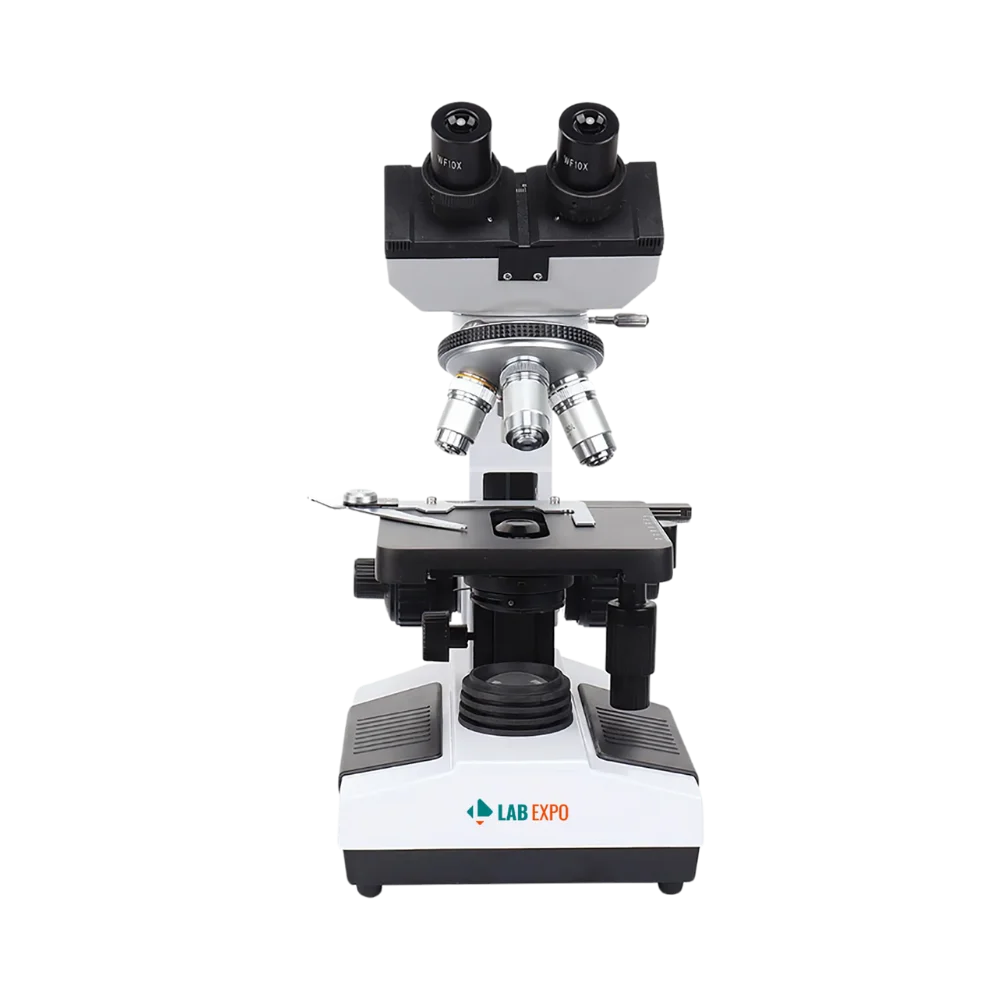

Biological Microscope 43-BMS100

Biological Microscope 43-BMS100 has a WF 10X Eyepiece for a wide field of view and easy specimen observation. It has a Sliding Type Binocular Head inclined at 45 degrees for comfortable viewing and less strain. It has Achromatic Objectives including 4X, 10X, 40X, and 100X for clear, color-corrected images at different magnifications. It is equipped with a Finite Optical System that ensures sharp, detailed, and accurate imaging.

Specifications

Optical system Finite Optical System
Viewing Head Sliding type binocular head, inclined at 45°
Eyepiece WF 10 X
Nosepiece Quadruple, click-stop
Objective Achromatic objective 4 x, 10 x, 40 x(s), 100 x(s,oil)
Stage Double layer mechanical stage : 140 × 132 × 75 × 45 mm
Focusing Coaxial coarse & fine adjustment, focusing range 30 mm, focusing interval 0.002 mm
Condenser Abbe N.A. 1.25 condenser with iris diaphragm & filter
Illumination 3 W LED, 6 V / 20 W Halogen lamp, adjustable brightness
Dimension 320 × 270 × 430 mm
Net weight 5.5 kg
Gross weight 6 kg

Features

  • Sliding type binocular head
  • Abbe N.A. 1.25 condenser with iris diaphragm & filter
  • WF10X as eyepiece
  • Quadruple nosepiece, quick-stop
  • Double layer mechanical fixed stage

Applications

Biological microscope can be used for routine microscopic analysis of samples in research laboratories, schools, institutes and colleges.

Standard Accessories

  • 6 V / 20 W spare halogen lamp
  • BGX1 - 20(1A) fuseBlue filter
  • Immersion oil
  • Dust cover
  • Instruction manual in English

Optional Accessories

  • Phase contrast kit (10 x, 20 x, 40 x, 100 x)
  • Dark field condenser (dry or oil)
  • Eyepiece WF 16 X
  • Wooden case

Catalog

Biological Microscope 43-BMS100 Catalog

Related Models Of Biological Microscope

Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
