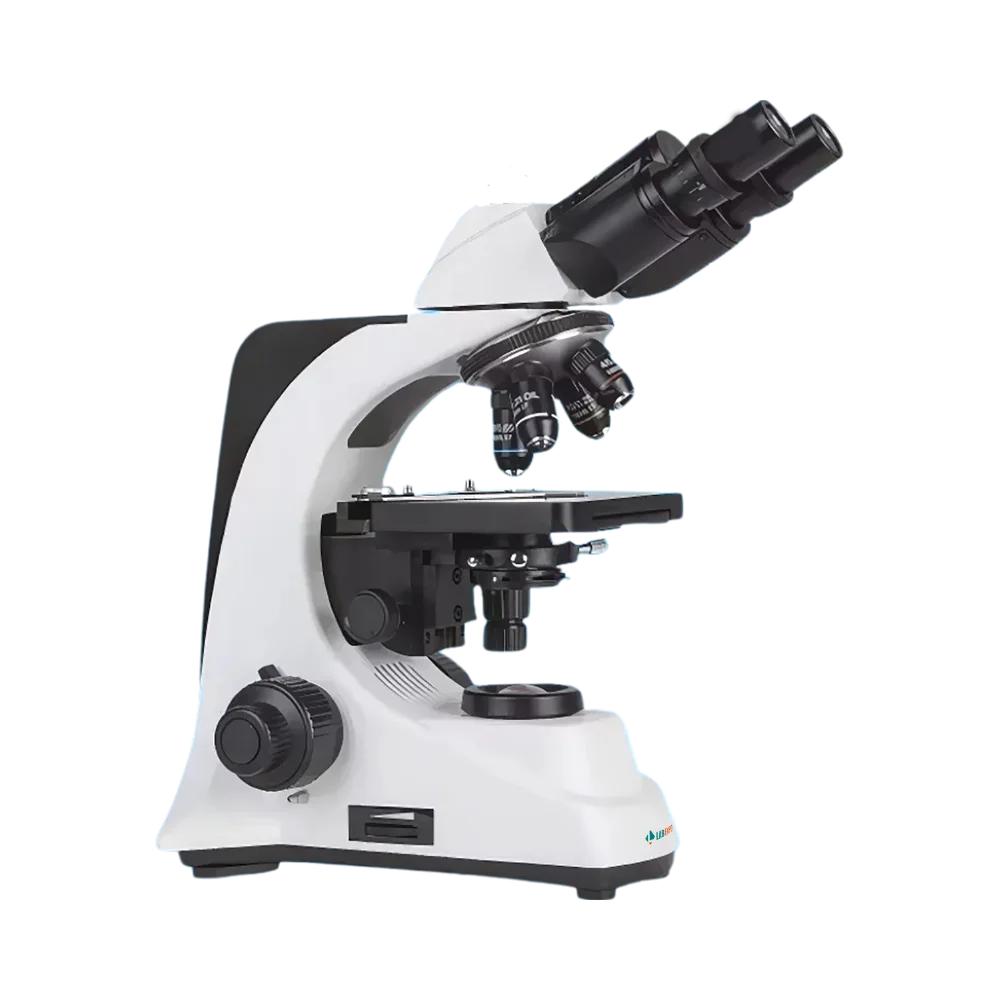

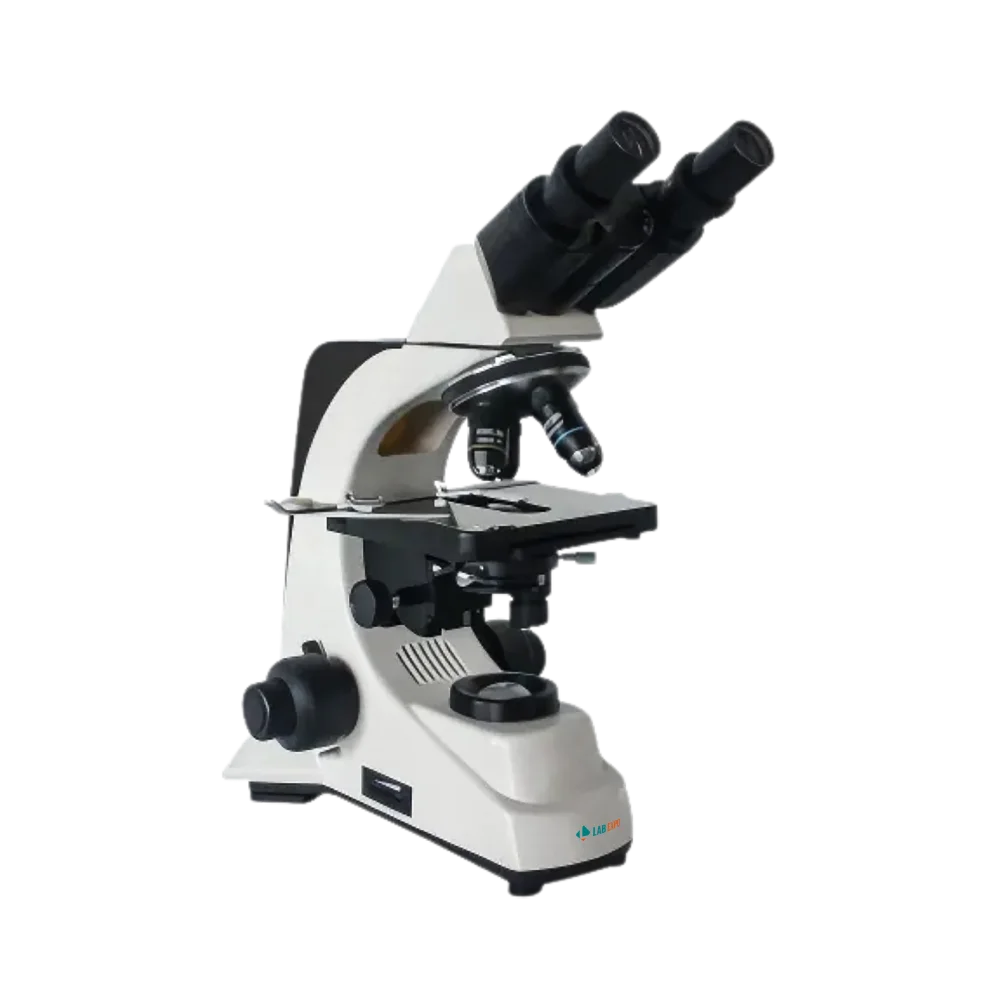

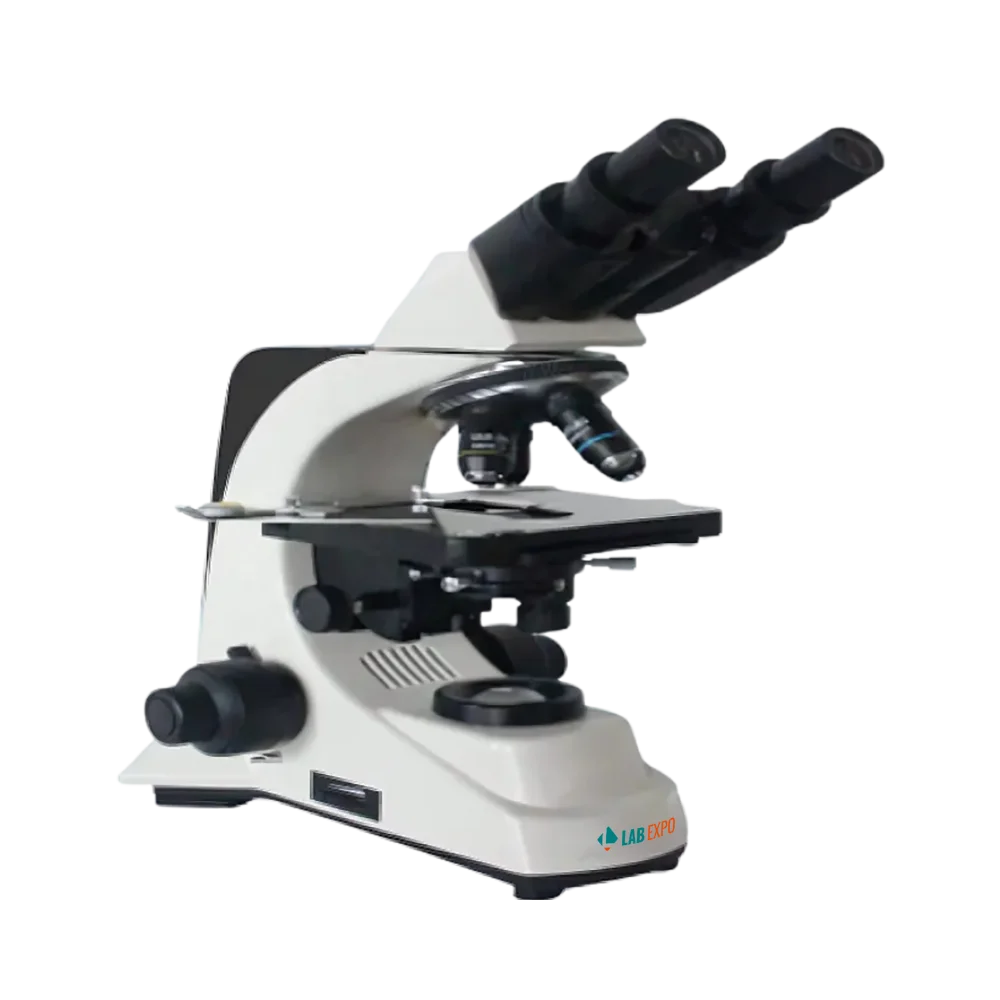

Biological Microscope 43-BMS101 features WF 10X/18 mm eyepieces for clear, wide-field observation of specimens. It has a Siedentop binocular head with an interpupillary distance of 48 to 75 mm for comfortable viewing. It has an Abbe N.A. 1.25 condenser with an iris diaphragm and filter that provides precise control of light for clear sample illumination. It has a finite optical system that delivers clear and accurate images for detailed observation.
Specifications
| Optical system | Finite Optical System |
| Viewing Head | Siedentopf binocular head, interpupillary distance range 48 - 75 mm, eyepiece tube rotation 360° |
| Eyepiece | WF 10 X / 18 mm |
| Nosepiece | Quadruple, click-stop |
| Objective | Achromatic objective 4 x, 10 x, 40 x(s), 100 x(s,oil) |
| Stage | Double layer mechanical stage : 140 × 132 × 75 × 45 mm |
| Focusing | Coaxial coarse & fine adjustment, focusing range 30 mm, focusing interval 0.002 mm |
| Condenser | Abbe N.A. 1.25 condenser with iris diaphragm & filter |
| Illumination | 3 W LED, adjustable brightness |
| Dimension | 350 × 245 × 460 mm |
| Net weight | 5 kg |
| Gross weight | 7 kg |
Features
Applications
Biological Microscope can be used for routine microscopic analysis of samples in research laboratories, schools, institutes and colleges.
Optional Accessories
Phase contrast kit (10 x, 20 x, 40 x, 100 x)
Dark field condenser (dry or oil)
Siedentop trinocular head
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
