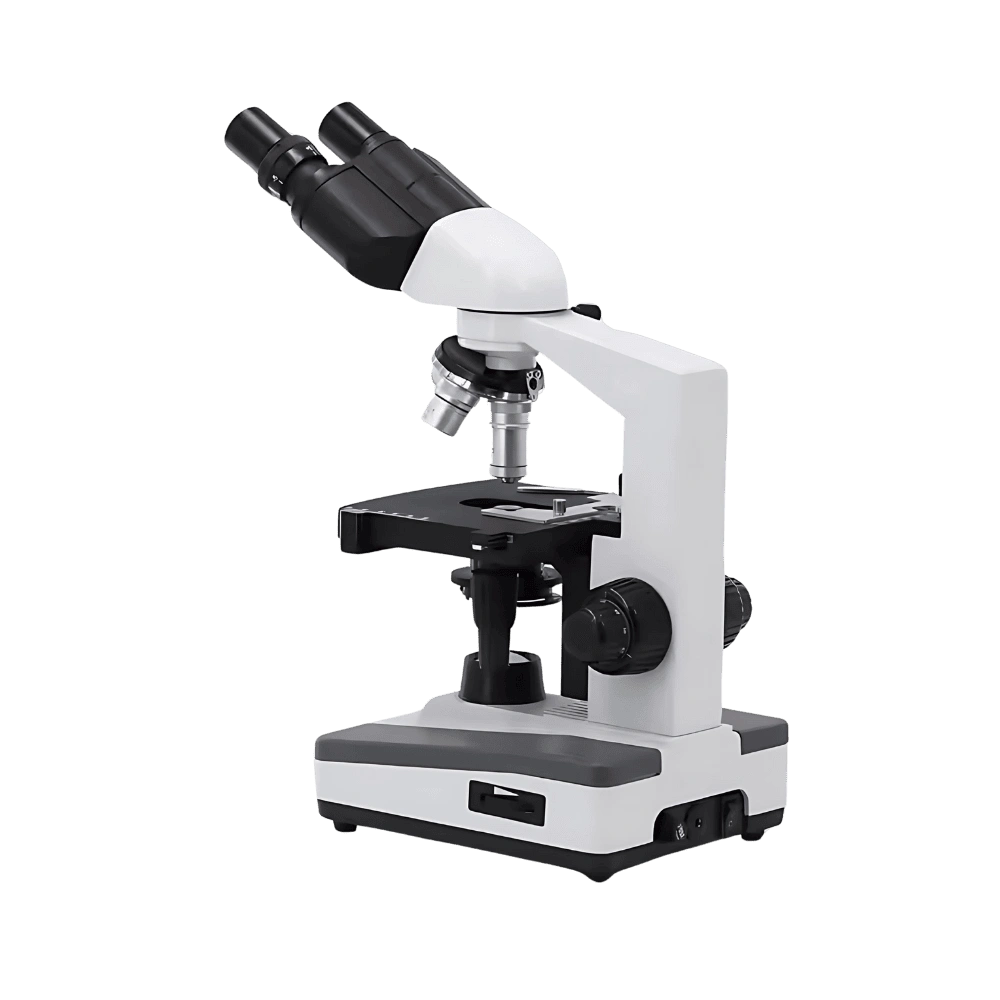

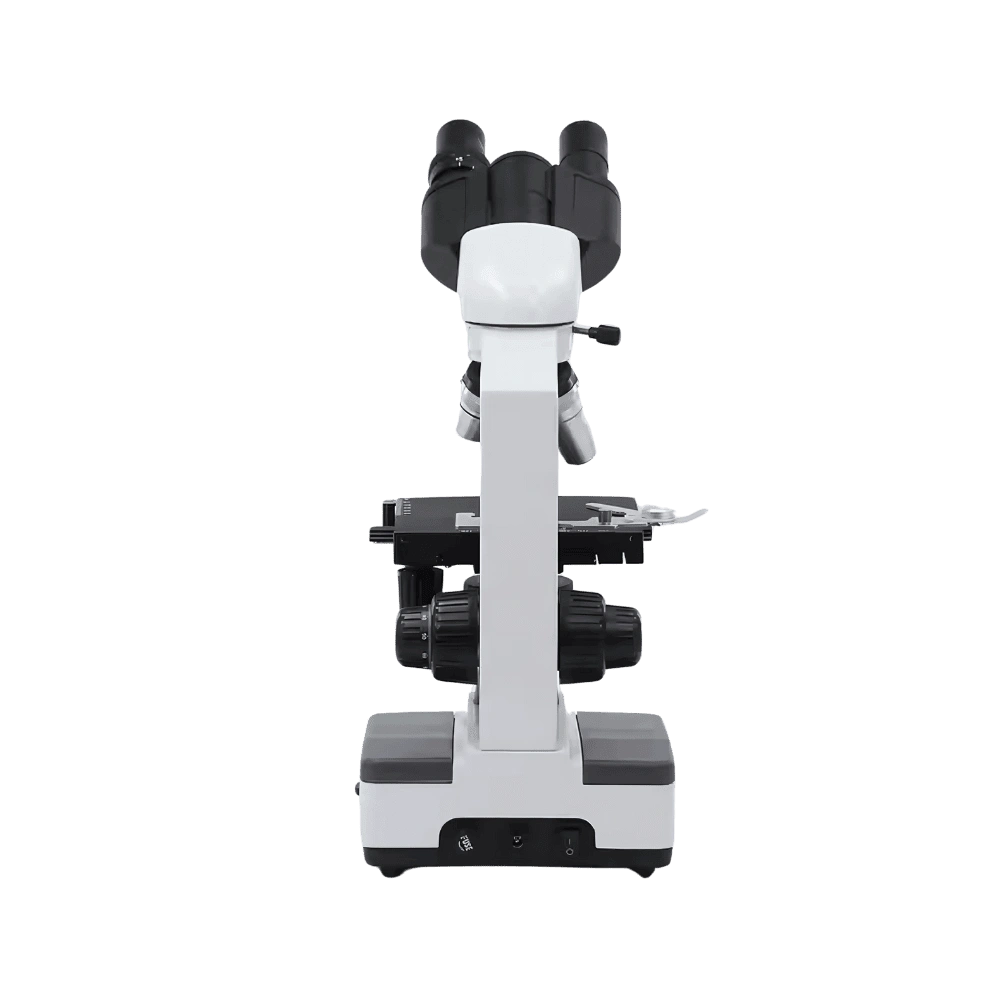

Biological Microscope LE-BMI101 includes a finite Optical System and a binocular head with 48 to 75 mm interpupillary distance range. Equipped with advanced illumination capability with adjustable brightness. Integrated with widefield eyepieces and a coaxial focusing mechanism for fine adjustment. Our Biological Microscope is ideal for clinical diagnostics and detailed analysis of biological samples in laboratories.
Specifications
| Optical System | Finite Optical System |
| Viewing Head | Siedentopf Binocular Head Interpupillary Distance Range: 48–75 mm Eyepiece Tube Rotation: 360° |
| Eyepiece | WF10X |
| Nosepiece | Quadruple, Click-stop |
| Objective | Achromatic Objectives: (4x, 10x, 40x, 100x) |
| Stage | Double Layer Mechanical Stage Stage Size: 140 mm × 132 mm Moving Range: 75 mm × 45 mm |
| Focusing | Coaxial Coarse & Fine Adjustment Focusing Range: 30 mm Focusing Interval: 0.002 mm |
| Condenser | Abbe Condenser NA = 1.25 With Iris Diaphragm and Filter |
| Illumination | 6V/20W Halogen Lamp or 3W LED with Adjustable Brightness |
| Standard Accessories | Yes |
| Dimension | 320 mm × 270 mm × 430 mm |
| Net Weight | 5.5 kg |
| Gross Weight | 6 kg |
Features
Applications
Our Biological Microscope LE-BMI101 is used for cystoscopy, bacterial observation, and routine diagnostics across medical labs, university teaching setups, and agricultural research environments.
Standard Accessories
Lab Expo provides a wide range of biological microscopes designed for observing cells, tissues, and other biological specimens. They feature multiple lenses that offer magnifications ranging from 4x to 100x. These include fully coated glass optics, enclosed safety stages, and high apertures. They are designed with comfortable binocular and trinocular viewing heads. They come with advanced features such as the Infinity Corrected Optical System (ICOS) and Plan achromatic optics. Our biological microscopes are ideal for brightfield and phase contrast observation modes.
