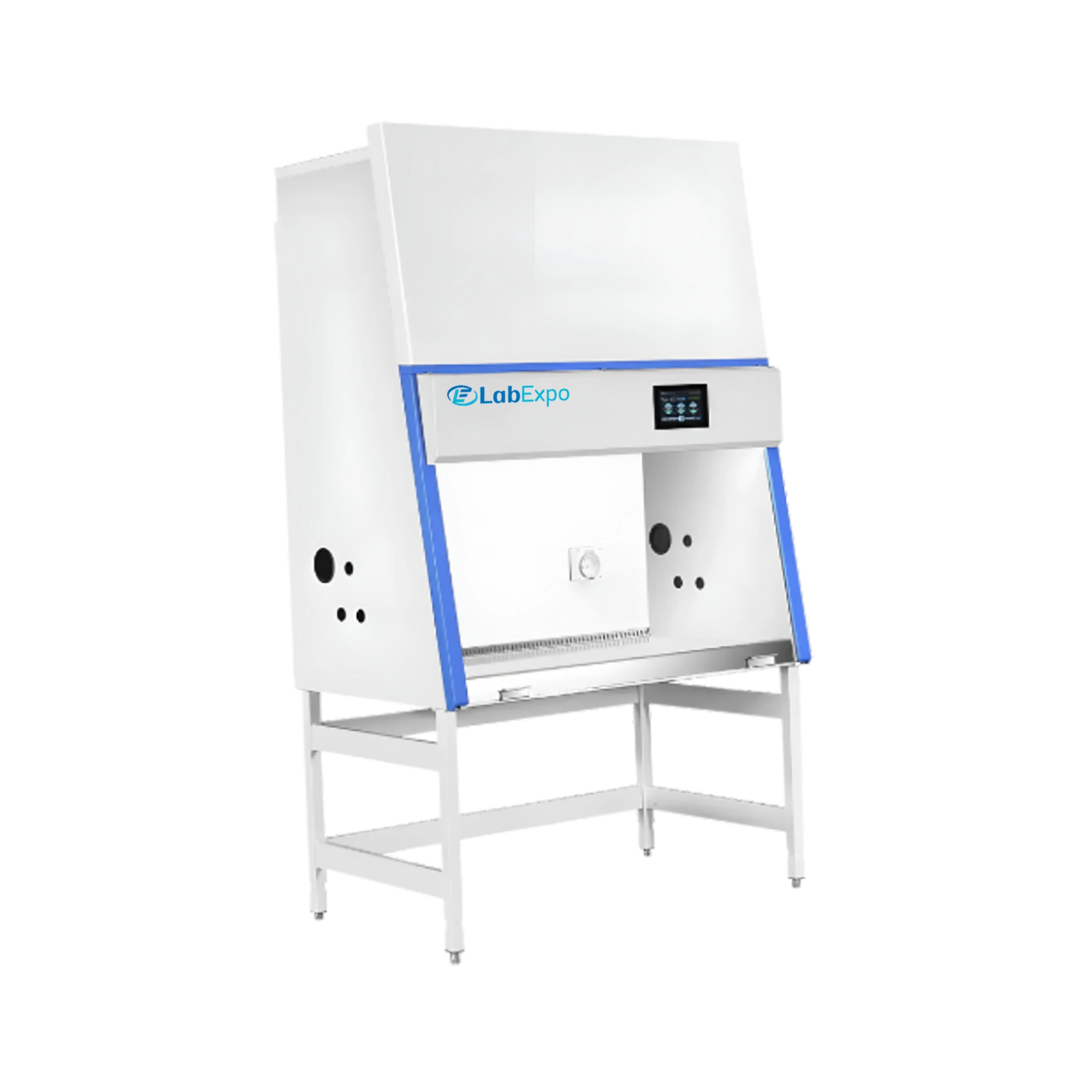

Biological Safety Cabinet 99-BSC100 features a high-quality ULPA filter that captures over 99.9995% of particles as small as 0.12 μm. It has an inflow velocity of 0.55 m/s and a downflow velocity of 0.35 m/s which maintain a sterile and controlled environment. It utilizes ULPA filtration technology for contaminant removal, offering the highest level of protection for both personnel and samples. Our Biosafety Cabinet has a built-in sterilization function that eliminates biological contamination and keeps the environment sterile.
Specifications
| Filtration Efficiency | >99.9995% at 0.12μm |
| Inflow Velocity | 0.55 m/s |
| Downflow Velocity | 0.35 m/s |
| Air Supply and Exhaust Filters | ULPA filters |
| Air Cleanliness | ISO 4 Class |
| Air Direction | Top out |
| Execution Standards | YY0569, GB 4793.1, GB/T 18268.1 |
| Personnel Protection | Impaction sampler: <10 CFU/time; Slot sampler: <5 CFU/time |
| Product Protection | Culture dish: <5 CFU/time |
| Cross-contamination Protection | Culture dish: <2 CFU/time |
| Light Size and Quantity | 18 W × 1 |
| UV Light Size and Quantity | 20 W × 1 |
| Luminance | ≥900 LX |
| Cabinet Materials | High-grade steel, lacquered in ivory |
| Working Area Materials | SS304 fully finished |
| Vibration | <5 μm (center of tabletop) |
| Noise Level | <65 dB |
| Max Power Consumption (with spare socket) | 1.65 KW |
| Rated Power (without spare socket) | 0.33 KW |
| Power Supply | 115/230V ±10%, 50/60Hz |
| Internal Dimensions | 1180×580×798 mm |
| External Dimensions | 1300×810×2290 mm |
| Support Base (with wheels) | 1285×710×680 mm |
| Weight | 265 kg |
Features
Applications
Function Implementation Personnel Protection <10 CFU/time impaction sampler validation Product Sterility Control <5 CFU/time culture dish verification Cross Contamination Limitation <2 CFU/time separation performance test Microbiological Procedures ISO 4 classified controlled airflow workspace Genetic & Pharmaceutical Processing ULPA-filtered sterile chamber environment
Lab Expo Class II Biological Safety Cabinet supports controlled containment workflows where regulated airflow and HEPA filtration are required for safe biological handling. This class ii bsc operates with defined inflow and downflow air patterns, offering A2 or B2 configurations with recirculation or total exhaust as specified. Microprocessor controls manage airflow stability and monitoring, while stainless steel work surfaces, negative pressure containment, and integrated alarms ensure controlled, compliant operation for routine laboratory procedures.
