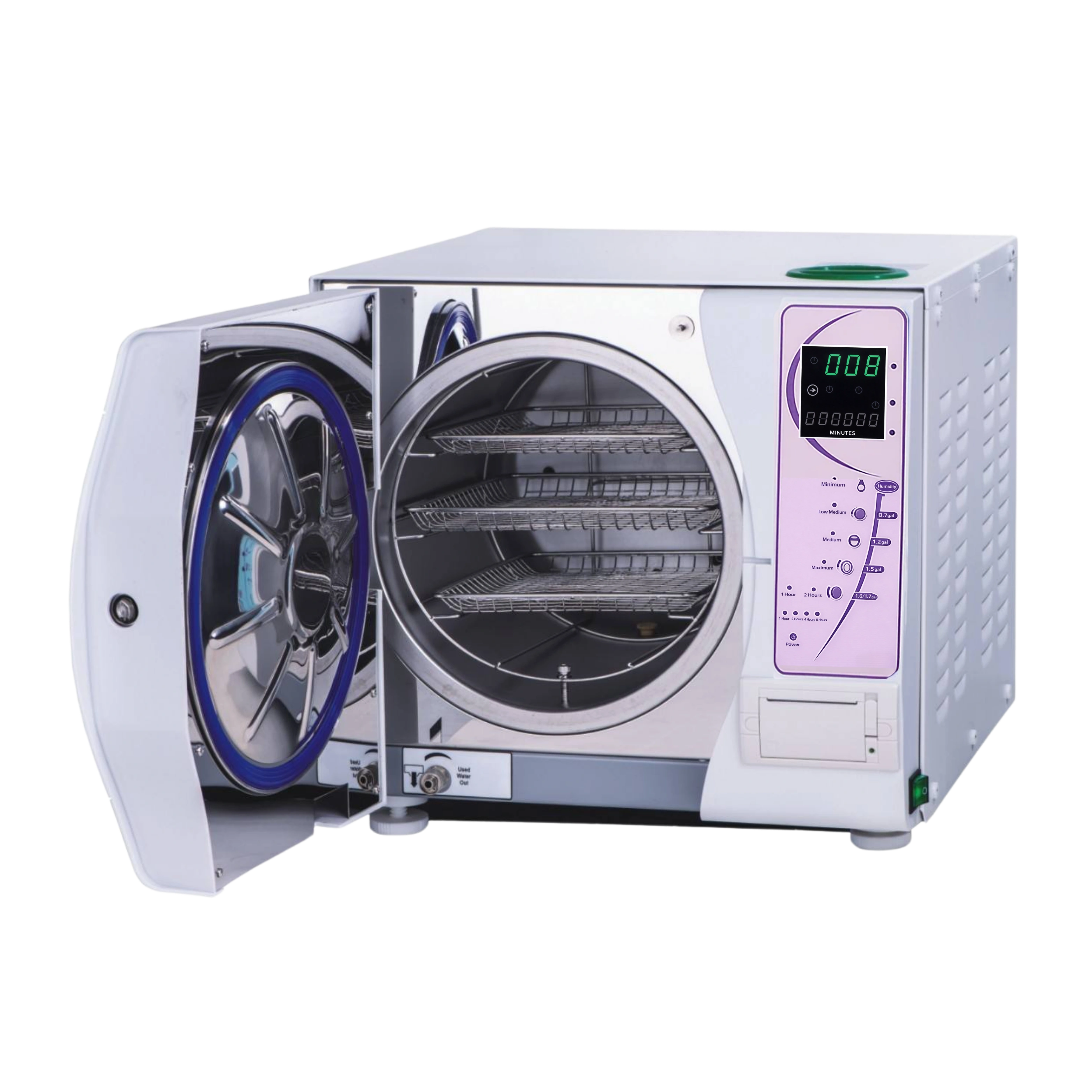

Dental Vacuum Autoclave LE-DVA103

Dental Vacuum Autoclave LE-DVA103 delivers an 18-litre chamber that supports high-capacity and efficient sterilization performance. It ensures effective operation at 134 °C with residual humidity for thorough decontamination. Incorporated steam sterilizer and automatic pipe cleaning system improve hygiene and overall performance. Equipped with a microprocessor control panel enabling simple operation and real-time cycle monitoring. Our Dental Vacuum Autoclave is ideal for dental clinics, medical centers, laboratories, and beauty care facilities.

Specifications

Tank Capacity 18 L
Sterilizing Temperature 134℃ / 121℃
Sterilization Level European Class B Standard
Dry Procedure Strong Vacuum Drying
Residual Humidity Less than 0.2%
Display Widescreen LCD
Water Supply System 3L Distilled Water Tank, 3L Water Tank
Power Consumption 1800 W
Power Supply AC 220V/110V ± 10%
Frequency 50/60 Hz ± 1 Hz
Inside Dimension 249 × 355 mm
Dimension 475 × 530 × 410 mm
Packing Dimension 670 × 550 × 500 mm
Gross Weight 48 Kg

Features

  • Microprocessor-based control system for sterilization cycle management
  • Three-stage pre-vacuum system for air removal before steam injection
  • Double door lock mechanism for chamber sealing during operation
  • Automatic alarm system for fault and cycle status indication
  • LCD interface for real-time parameter display and cycle monitoring
  • Built-in self-test system for operational readiness verification

Applications

FunctionImplementation
Vacuum SterilizationWrapped and hollow dental instruments
Instrument ProcessingSurgical and diagnostic tools requiring air removal
Laboratory SupportSterilization of lab instruments sensitive to air pockets
Clinical Workflow UseRoutine instrument preparation cycles in controlled settings

Catalog

Dental Vacuum Autoclave LE-DVA103 Catalog

Dental Vacuum Autoclave LE-DVA103

Dental Vacuum Autoclave LE-DVA103

Related Models Of Dental Vacuum Autoclave

Lab Expo Dental Vacuum Autoclave is applied in dental sterilization workflows where vacuum-assisted air removal is required to ensure complete steam penetration into wrapped and hollow instruments. The system operates using pressurized steam with integrated vacuum stages and is constructed from stainless steel for hygienic processing. Digital controls manage vacuum, exposure, and drying parameters, while integrated safety mechanisms support controlled cycle execution.
