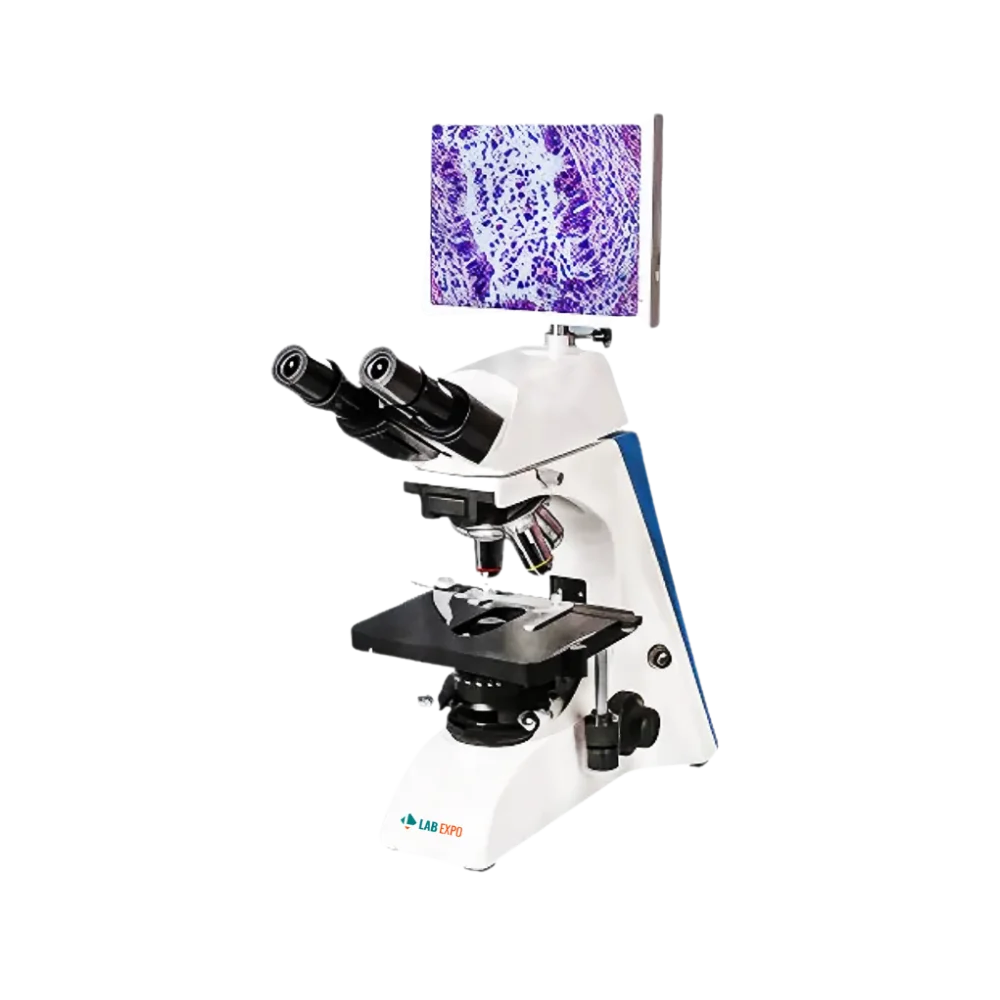

Digital Microscope 43-DMS101 allows person to view the sample without straining the eyes because of which quantitative analysis of samples at microscopic level is possible. It comes with advanced technology LCD TFT touch screen for high resolution image of the specimen. We can obtain clear and sharp images of the specimen using coarse and fine focusing adjustment mechanism.
Specifications
| Optical system | Infinite optical system |
| Viewing head | Siedentopf type binocular head , inclined at 30º, 360ºeyepiece tube rotation, interpupillary distance 50 mm-75 mm, anti-fungal system |
| Eyepiece | WF10X |
| Objectives | Infinity plan achromatic objective: 4x, 10x, 40x(s), 100x(s, Oil) |
| Stage | Double layer mechanical stage: 180x145 mm Travel stage: 56 x75 mm with right hand stage handle |
| Condenser | Abbe type N.A. 1..25 condenser with iris diaphragm |
| Focusing | Coarse and fine focusing adjustment with rack and pinion mechanism fine focusing interval 0.002mm |
| Nosepiece | Quintuple quick-stop revolving mechanism with multiple ball bearing |
| Illumination | Built-in kohler illumination system 3W LED, adjustable brightness, field diaphragm |

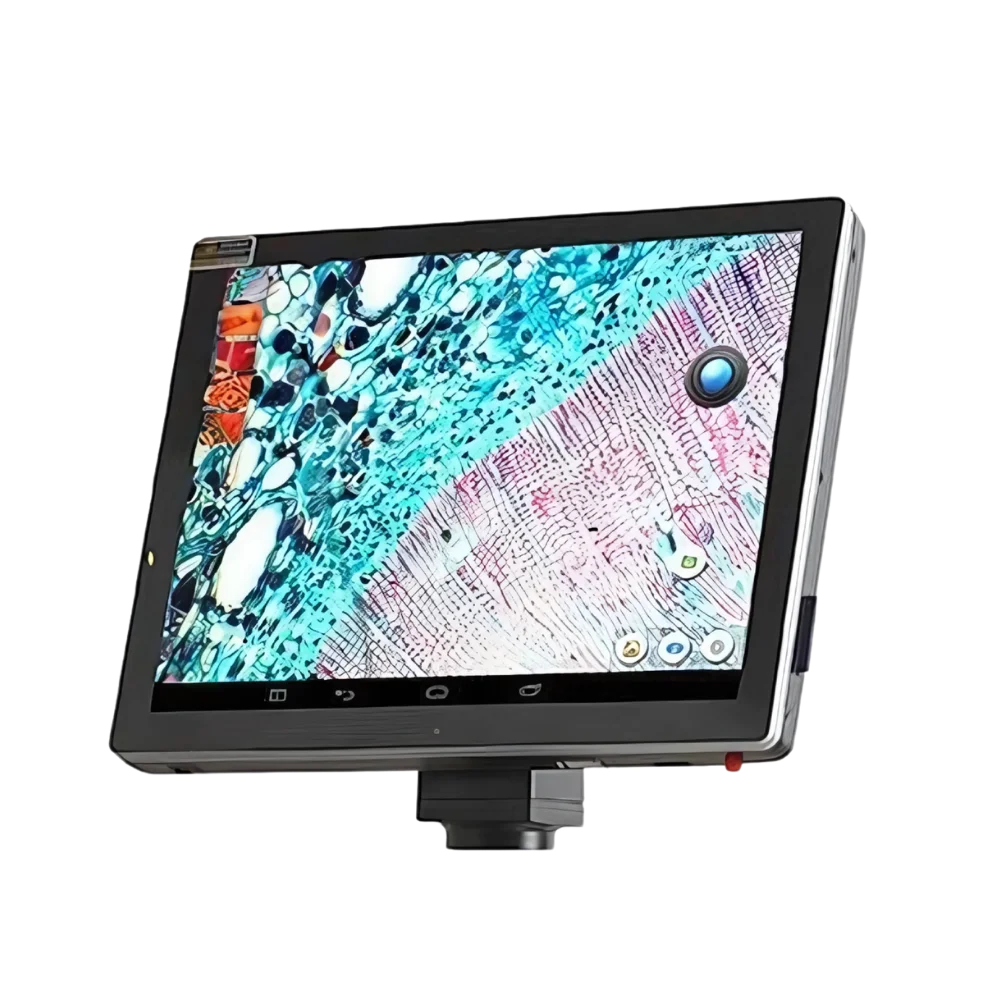

| LCD Screen | 8.0 inch TFT touch screen |
| Output | USB 2.0, HDMI |
| Operating system | Android 4.2.2 |
| Software | Touch scope |
| Valid Pixel | 5.0 Mega pixel |
| Dimension | 380×380×750 mm |
| Net weight | 13 kg |
| Gross weight | 14 kg |
| Power supply | 85 V to 265 V universal power supply |
Features
Applications
Digital microscope has wide and promising applications in the fields of bacteriology, cytology, botany, medical research field to study the details of the specimen on LCD screen.
Lab Expo digital microscopes allow you to observe samples without straining your eyes. They have coarse and fine focusing settings to provide clear, crisp photos. They include built-in LCD panels for high-resolution photos. They have LED lighting with intensity control. They have unlimited optical systems and may plan achromatic targets. They support Android and have USB connectivity. They feature sophisticated software for analysis and documentation. Our digital microscopes use modern technology to enable precise and fast sample analysis.
