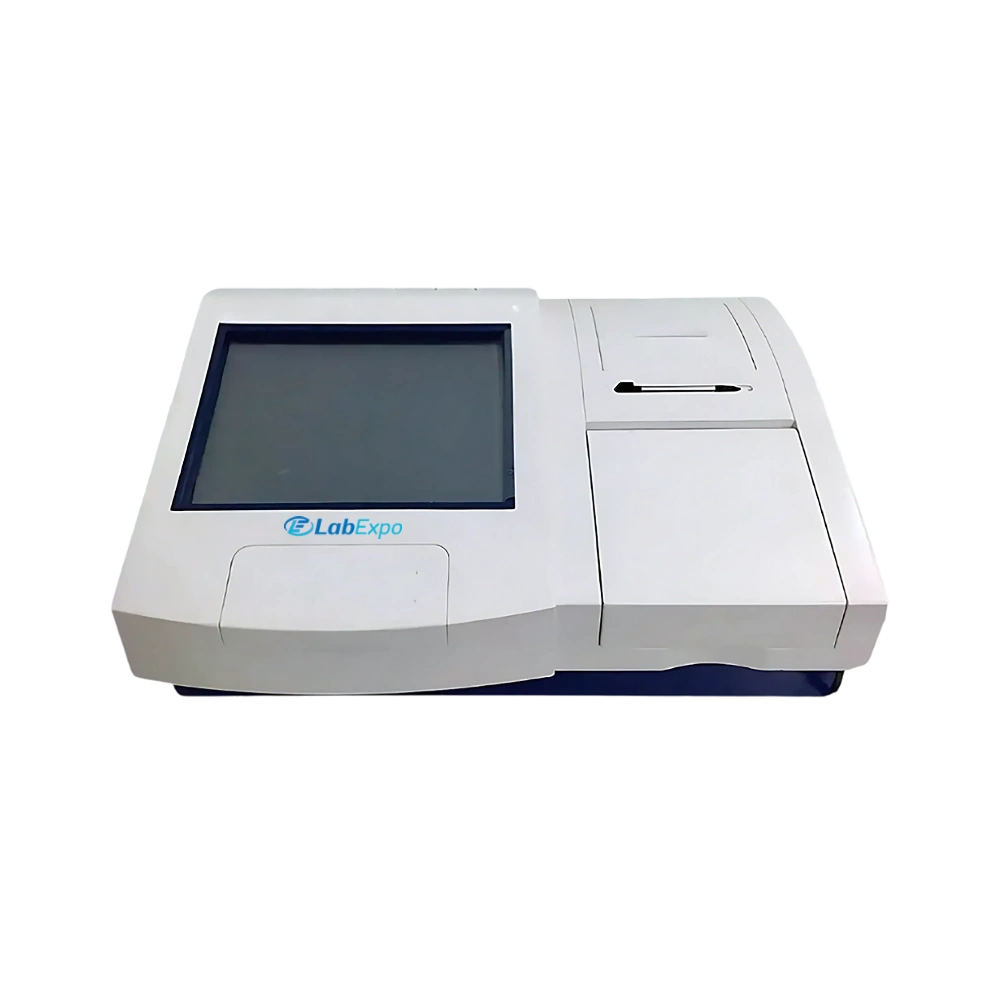

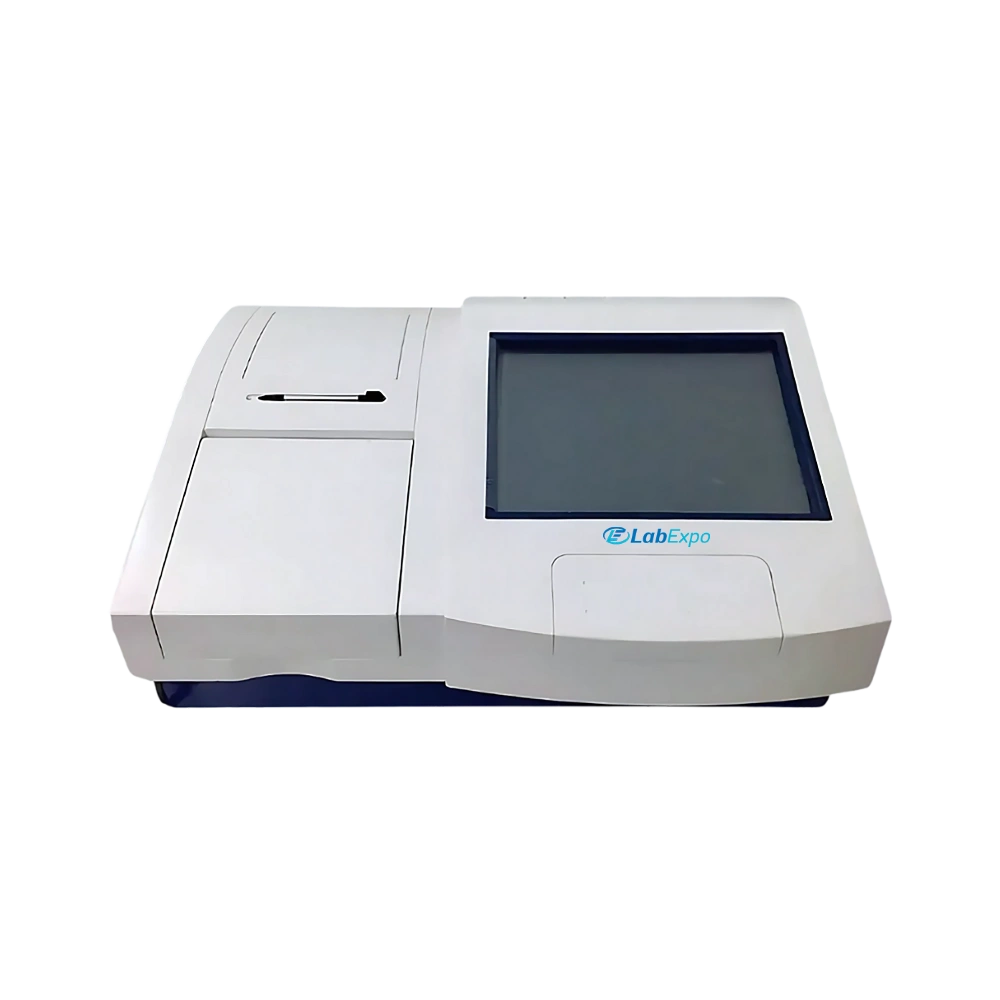

Microplate Reader 96-MPR101 supports 48 and 96-well plates and covers a wavelength range from 400 to 850 nm. It can perform up to 12 different tests per plate, particularly for ELISAs. offers a flexible plate layout accommodating Blanks, Standards, Samples, Reference, and QC. It features an auto plate centering system and lamp adjustment. It measures single or dual wavelength. Our microplate reader can store 20 million test data and 500 test projects.
Specifications
| Plate Type | 48/96-well plate |
| Wavelength Range | 400 to 850 nm |
| Standard Wavelength | 405, 450, 492, 630 nm |
| Additional Filters | Filter wheel for up to 8 filters |
| Resolution | 0.001 Abs |
| Single Wavelength Reading Speed | ≤ 3s |
| Dual Wavelength Reading Speed | ≤ 6s |
| Reading Range | 0.000 to 4.000 Abs |
| Accuracy | ± 0.008 Abs |
| Reproducibility | ≤ 0.2 % |
| Stability | ± 0.003 Abs |
| Shaking | Linear shaking, 3 speeds |
| Printer | Built-in thermal printer, optional external printer |
| Light Source | 8V/50W controlled tungsten halogen lamp |
| Detector | Silicon photodiode |
| Interface Connection | DVI, UGA, Network interface, USB, Audio interface, RS-232 |
| Power Supply | 100 to 240 V, 50 to 60 Hz |
| Overall Dimension | 460 × 350 × 197 mm |
| Gross Weight | 10 Kg |
Features
Applications
Our microplate reader is widely used for immunoassays (ELISA), enzyme assays, Bradford assays, proliferation assays, and toxicity studies. It is vital for clinical, research, and quality control applications because of its sophisticated data evaluation and adaptable capabilities.
Lab Expo offers modern microplate readers that can read both 48 and 96-well plates. They have a wide range and can monitor both single and multiple wavelengths. They have an optical system and automatic plate centering for precise placement. They have automatic light adjustment and calibration features. These handle a variety of test formats and offer reliable memory for storing large amounts of data. They use complete ELISA reading software. Our Microplate Readers are precise, efficient, and versatile.
