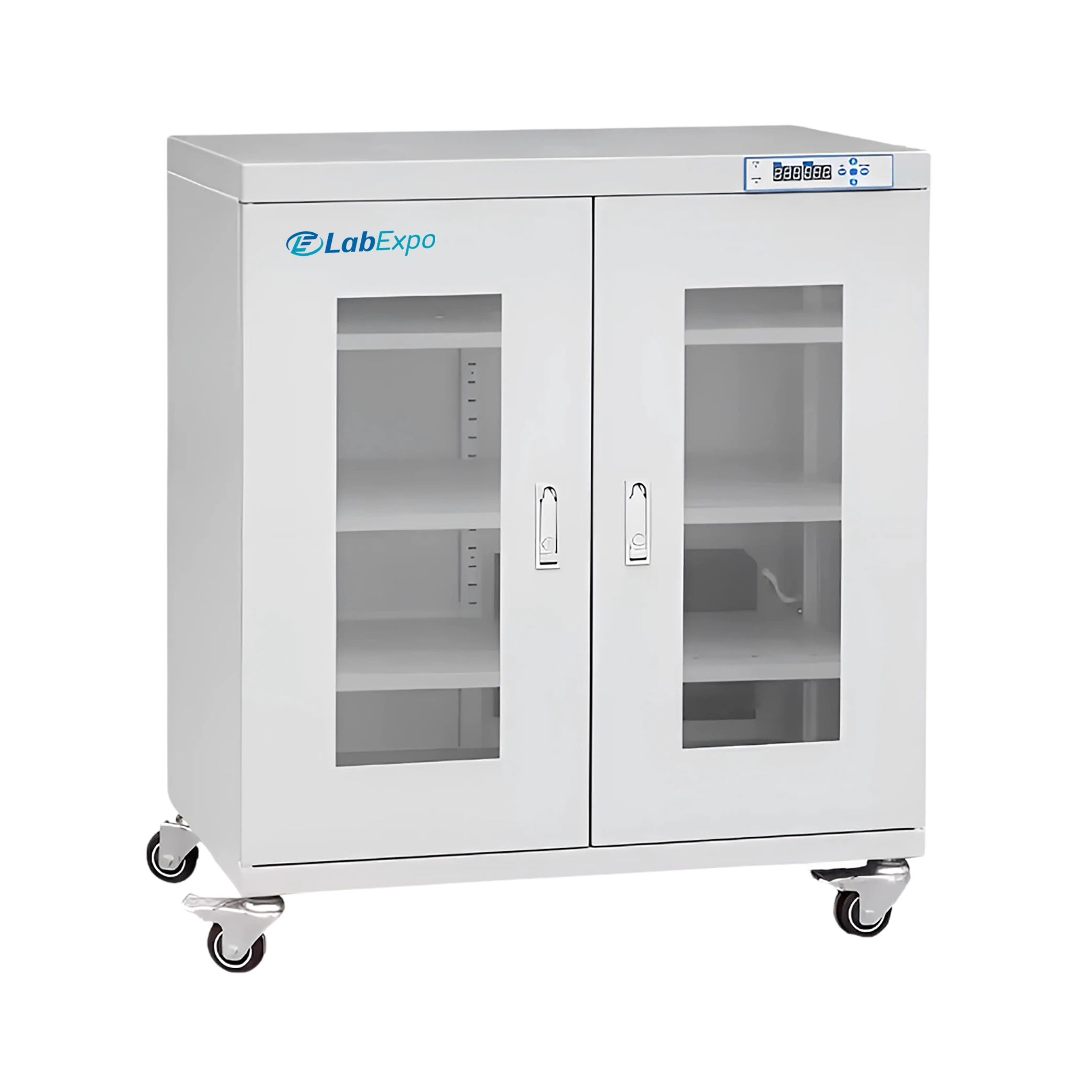

Dry Cabinet LE-DC106 offers a 435L capacity for low humidity storage of moisture-sensitive devices. It features a 10 to 20% adjustable humidity range and high precision sensors. Integrated LED controller enables real-time monitoring with high accuracy. Built-in with 1.2mm thickness galvanized steel that ensures durability. Our Dry Cabinet is suitable for electronic and semiconductor industries, automobiles, research institutes and universities.
Specifications
| Capacity | 435L |
| Humidity | 10 to 20% RH |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 3 |
| Maximum Load per Shelf | 80 Kg |
| Power Consumption | 8W |
| Interior Dimension | 898 × 572 × 848mm |
| Exterior Dimension | 900 × 600 × 1010mm |
| Net Weight | 59 Kg |
| Gross Weight | 82 Kg |
Features
Applications
Function Implementation SMT and PCB storage 10–20% RH environment preventing moisture absorption before assembly Semiconductor device protection Stable ultra-dry chamber for sensitive components Automotive and aerospace parts storage Controlled humidity reducing corrosion and oxidation risk Research laboratory preservation Data-logged humidity monitoring for quality verification Industrial inventory control 435 L organized storage with ≤30 min recovery after door cycle
Catalog
1: Which industries commonly use the LE-DC106 for low-humidity storage?
It is widely used in electronics, semiconductors, automotive, aerospace, and SMT industries.
2: Which material ensures the cabinet’s structural durability?
It is built with 1.2mm thick galvanized steel for long-lasting performance.
3: Which feature helps maintain settings after a power outage?
The memory function automatically restores the previous configuration without manual resetting.
4: Which component provides long-term dehumidification without replacements?
A multi-porous molecular sieve acts as a regenerable desiccant.
5: Which added security feature protects stored components?
It includes an anti-theft function for safeguarding valuable items.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
