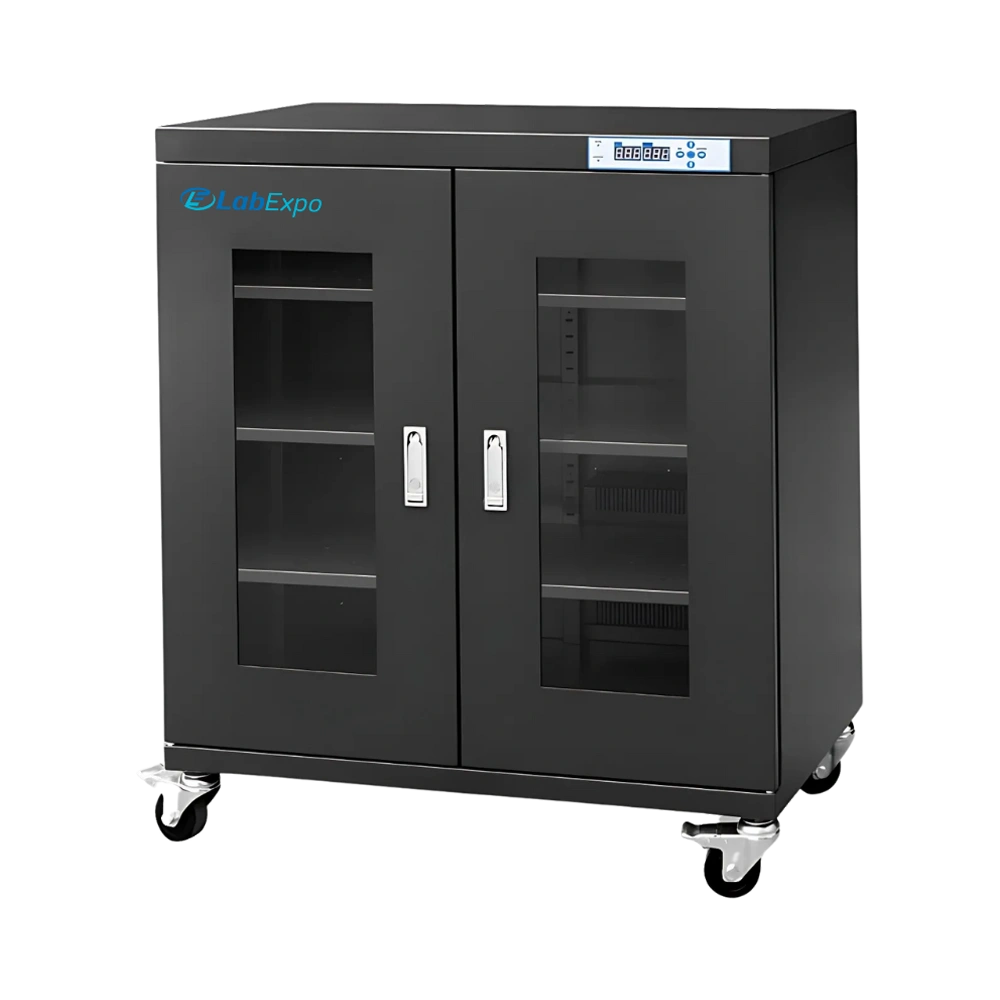

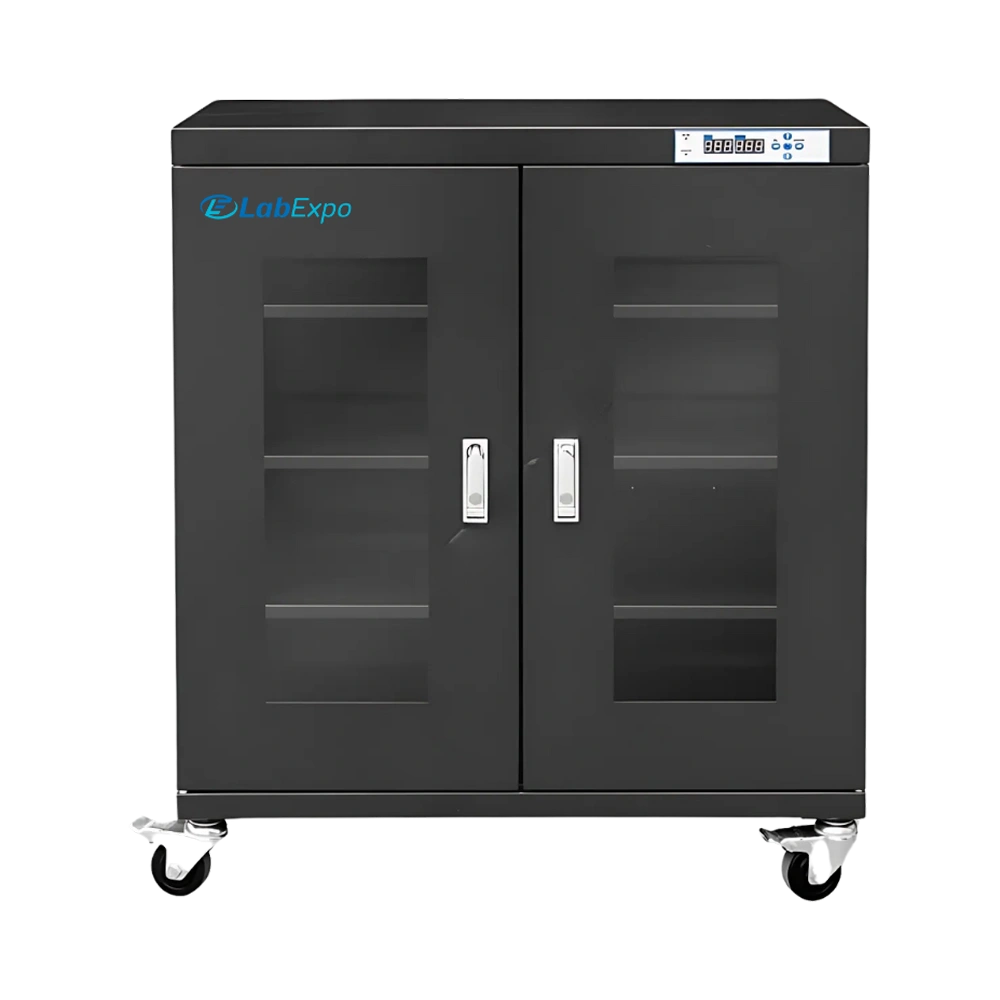

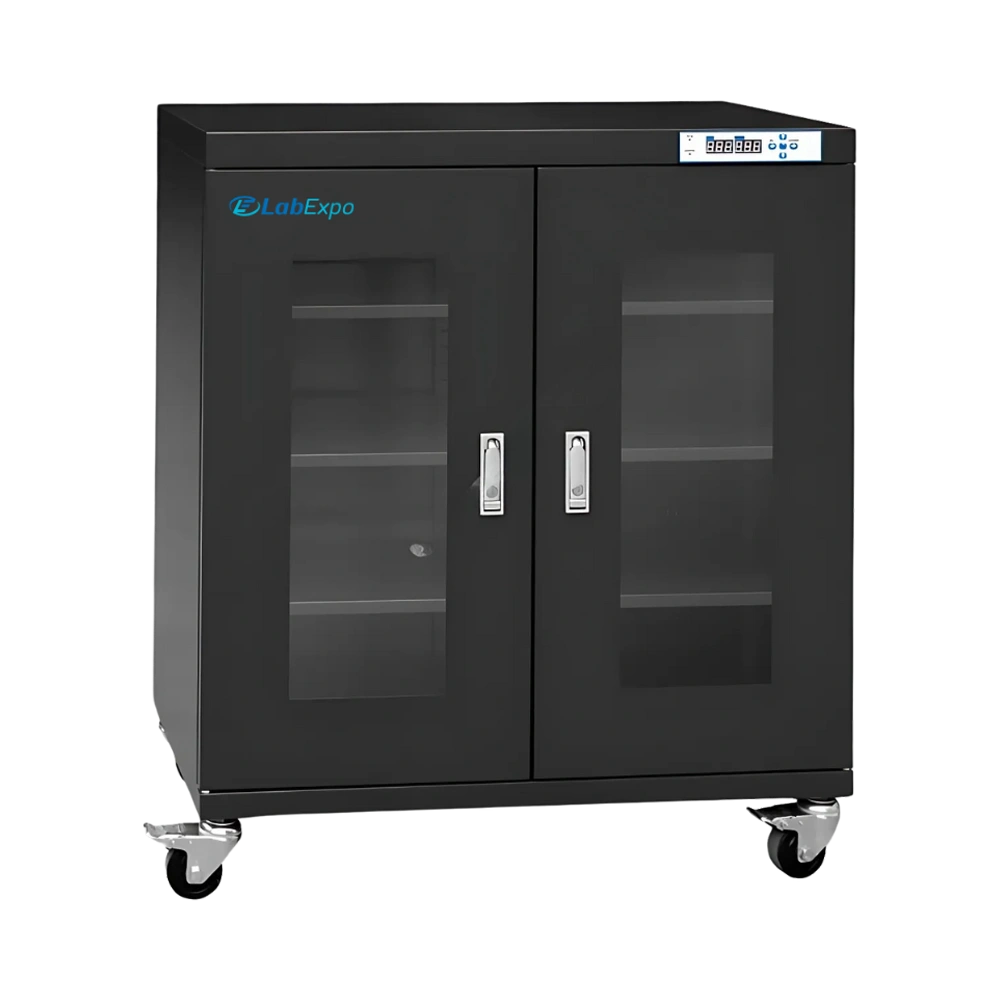

Dry Cabinet LE-DC304 ensures static-safe storage with a 435L capacity and three shelves. Built-in humidity control system allows users to freely set RH levels between 10% to 20%. Integrated memory function automatically retains settings after power failure. Incorporated 3.2mm tempered glass window provides clear internal visibility. Our Dry Cabinet is suitable for storage of electronic components, automotive parts, aerospace, and SMT.
Specifications
| Capacity | 435L |
| Humidity | 10% to 20% RH |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 3 |
| Maximum Load per Shelf | 80 Kg |
| Power Consumption | 8W |
| Interior Dimension | 898 × 572 × 848mm |
| Exterior Dimension | 900 × 600 × 1010mm |
| Net Weight | 59 Kg |
| Gross Weight | 82 Kg |
Features
Applications
Function Implementation SMT component storage 10–20% RH environment preventing moisture absorption before assembly Automotive electronics preservation Stable low-humidity chamber reducing corrosion risk Aerospace part protection Controlled ultra-dry storage for precision materials PCB and IC handling Static-safe cabinet maintaining consistent internal conditions Research and QA use Real-time monitored humidity with ≤30 min recovery
Catalog
1: Which industries benefit most from this storage cabinet?
These cabinets are widely used in electronics, aerospace, SMT production, and automotive sectors where precise low-humidity storage is essential.
2: How does the cabinet ensure long-term protection of stored items?
Their built-in humidity control system maintains a constant 10% to 20% RH, preventing corrosion, oxidation, and moisture-related damage.
3: Can users rely on it during sudden power failures?
Yes, they are equipped with a memory function that automatically restores previous settings once the power is back.
4: What makes the cabinet both functional and user-friendly?
It is designed with a 3.2mm tempered glass window for clear visibility, three adjustable shelves, and durable ESD-safe construction.
5: Why is this model ideal for bulk storage?
Our Dry Cabinet provides a large 435L capacity with each shelf supporting up to 80 kg, making it suitable for heavy and sensitive materials.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
