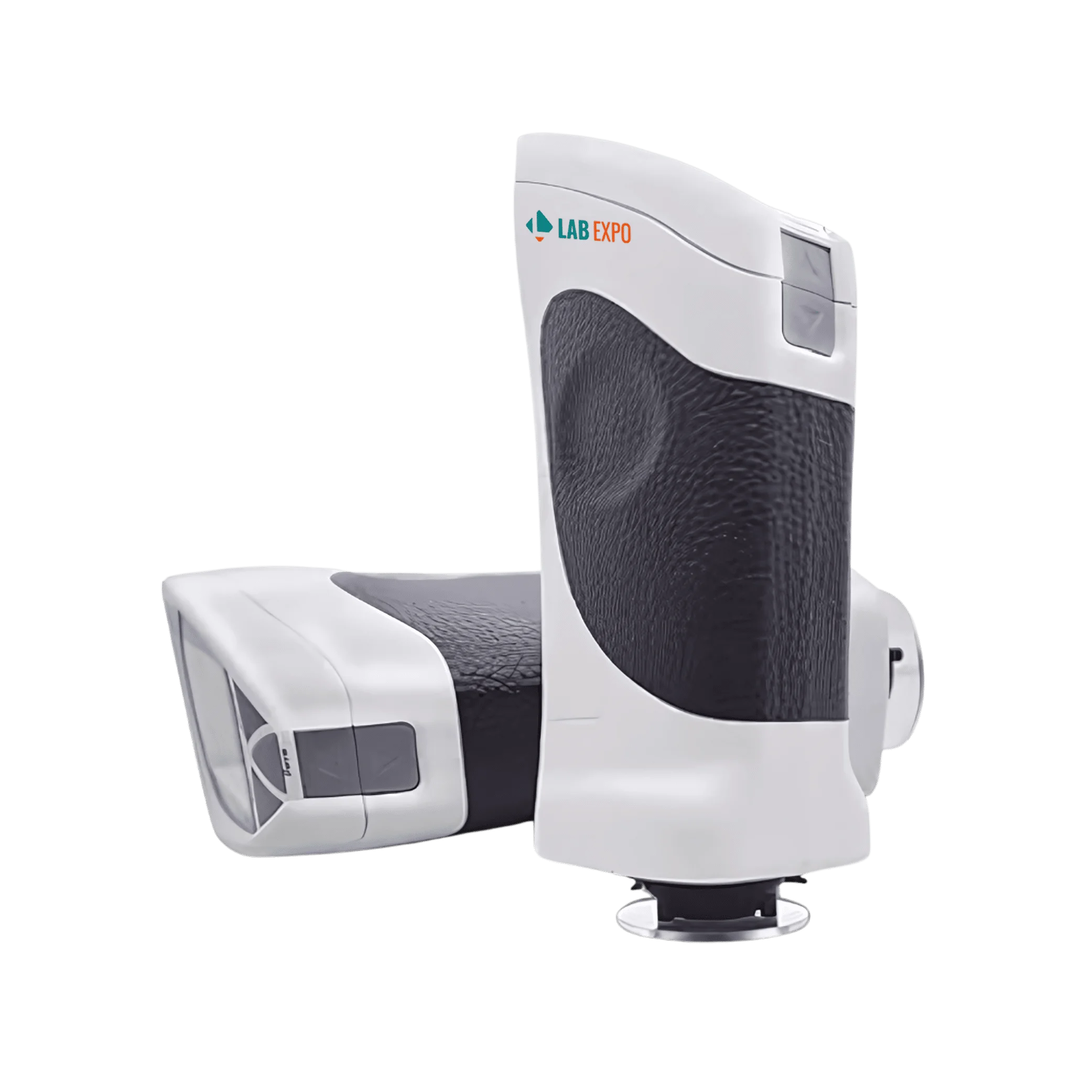

Spectral Colorimeter 700-SCM100 covers a 400-700 nm range with a 10 nm spectral resolution for precise color analysis. Its ergonomic leather design enhances grip, while a large storage capacity supports easy data management. This high precision colorimeter uses advanced spectral measurement technology to ensure accurate color readings. Our spectral colorimeter offers mass storage for up to 100 measurement targets and 200 data groups, ensuring efficient data management.
Specifications
| Wavelength | 400 to 700 nm |
| Spectral Resolution | 10 nm |
| Working Temperature | 5 to 45 °C, relative humidity 80 % or below (at 35 °C), no condensation |
| Illumination | Di / 8 (diffusion illumination, 8° viewing), SCI |
| Illumination Light Source | CLED |
| Size of Integrated Sphere | 40 mm, Alvan diffused reflection surface coating |
| Measuring Time | 2 s |
| Measurement Caliber Size | 11 mm |
| Optional Measurement Caliber Size | 4 mm, 6 mm, 15 mm |
| Repeatability | Standard deviation ΔE × ab 0.08 (when a white calibration plate is measured 30x at 10 second interval after calibration) |
| Observe Angles | 2° and 10° |
| Light Source | A, C, D50 & D65 |
| Display | Chromaticity value (L × a × b, L × C × h）, ΔE value, pass / fail, color tendency, average, generate test report |
| Color Difference Formula | ΔE × ab, ΔE × CH |
| Color Space | CIE - L × a × b, L × C × h, reflectance |
| Data Storage | 100 targets and 200 samples |
| Storage Temperature | (-25 to 55 °C), relative humidity 80 % or below (at 35 °C), no condensation |
| Measurement Indices | Nil |
| Screen | Panchromatic True Color Screen |
| Light Source Lifetime | 5 years, 1.5 million times |
| Camera Attachment | Without camera |
| Sensor | Sensor array |
| Battery | Rechargeable Lithium battery |
| Power Supply | 8.4 V / 2000 Mah, adaptor DC 12 V |
| Dimension | 77 × 86 × 210 mm |
| Weight | 550 g |
Features
Applications
Function Implementation Storage facilities ±0.08 standard deviation ΔE supports repeatable color measurements Research laboratories 10 nm spectral resolution enables precise color analysis Quality control centers 400-700 nm wavelength range covers a broad color spectrum Color matching applications 2 s measuring time ensures fast color evaluation Material testing facilities 5 to 45 °C working temperature range accommodates various materials
Standard Accessories
Adapter
Color management software
USB cable
Black/White calibration tube
Protective cover
Portable bag
Electronic cable charts
Optional Accessories
Micro printer
Lab Expo Spectral Colorimeter supports precision color measurement workflows where spectral accuracy and repeatable data capture are required for quality evaluation and analysis. This spectral colorimeter operates with multi-source diffused illumination and defined viewing geometry to maintain consistent colorimetric results. Digital controls manage calibration, measurement, and data grouping, while onboard display and USB data transfer ensure controlled operation and precise color analysis for routine laboratory and industrial use.
