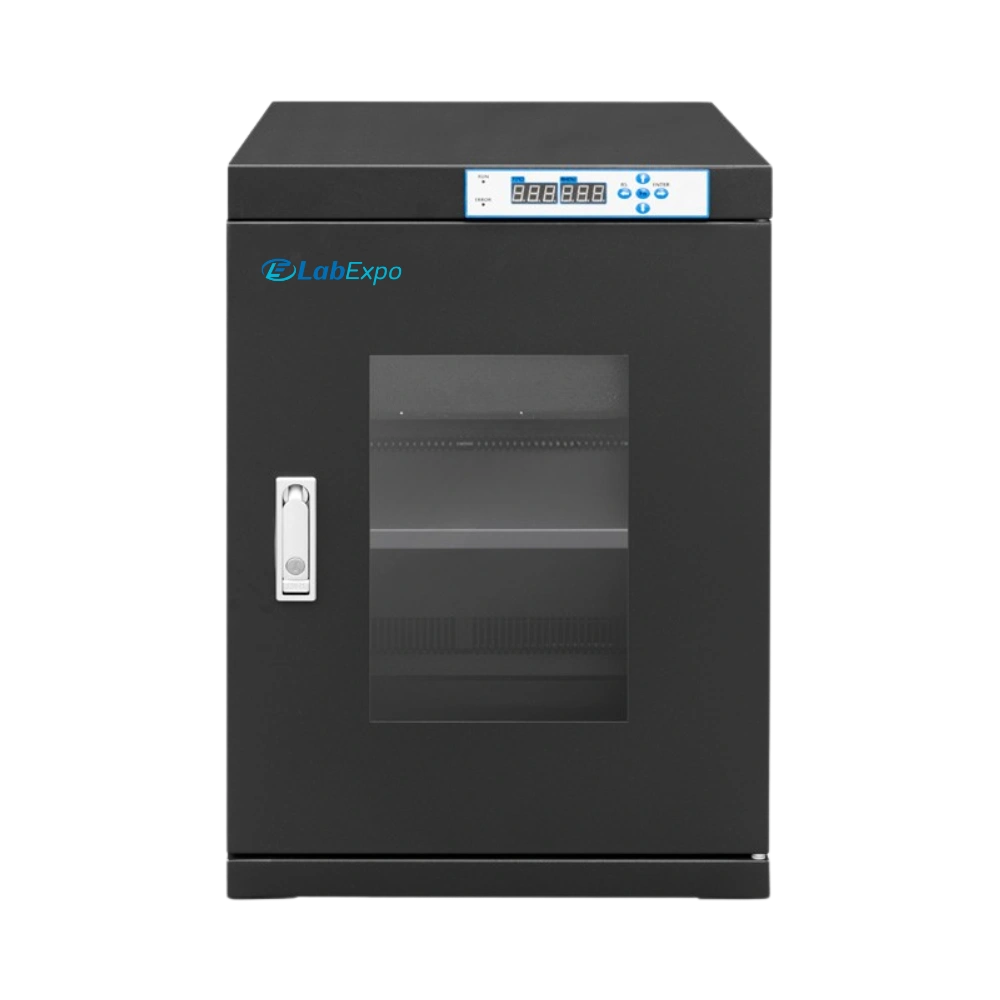

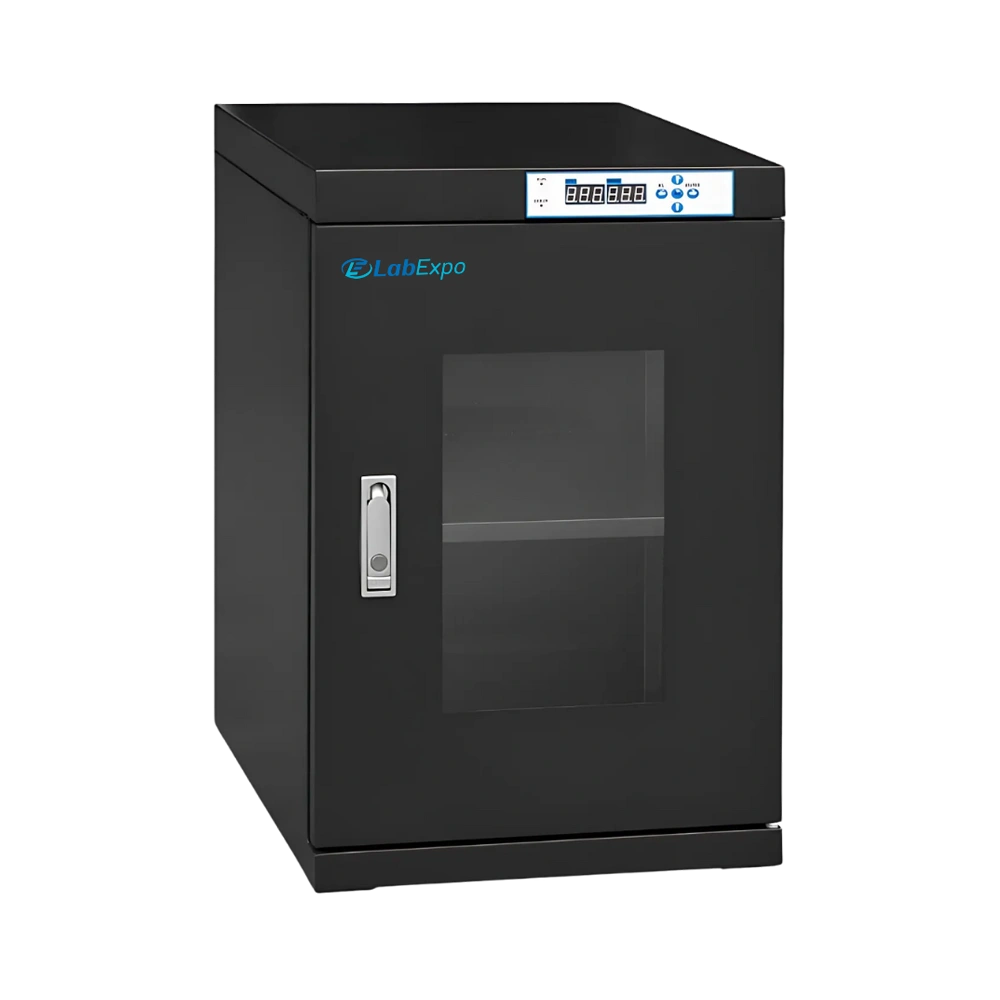

Dry Cabinet LE-DC307 is a compact 98L ESD safe unit designed for ultra-low humidity storage below 10% RH. Built-in automatic dehumidification system ensures continuous control without manual adjustments. Integrated with a 3.2mm high intensity tempered glass window for better observation. Incorporated memory function automatically memorizes the last setting value after power off. Our Dry Cabinet is ideal for storing electronics and optical fibers.
Specifications
| Capacity | 98L |
| Humidity | Less Than 10% RH |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 1 |
| Maximum Load per Shelf | 50 Kg |
| Power Consumption | 8W |
| Interior Dimension | 446 × 372 × 598mm |
| Exterior Dimension | 448 × 400 × 688mm |
| Net Weight | 20 Kg |
| Gross Weight | 31 Kg |
Features
Applications
Function Implementation Electronic component preservation <10% RH environment preventing moisture-induced failures Optical fiber storage Stable ultra-dry chamber minimizing condensation risk Semiconductor manufacturing support Static-safe cabinet maintaining controlled humidity conditions R&D laboratory use Real-time monitored storage with logged RH tracking
Catalog
1: How does this cabinet ensure long-term reliability?
These units use a multi-porous molecular sieve desiccant and data logging system to provide stable, long-lasting humidity control.
2: What kind of components can be safely stored inside?
Their design makes them ideal for electronic parts, optical fibers, semiconductor devices, and sensitive R&D materials.
3: Is this model energy-efficient for continuous use?
They consume only 8W of power, making them efficient for laboratories and production environments with 24/7 operation needs.
4: What makes the cabinet user-friendly?
It features an automatic dehumidification system that requires no manual adjustment, ensuring convenience for operators.
5: How does this cabinet enhance observation of stored items?
Our Dry Cabinet comes with a 3.2 mm high-intensity tempered glass window, allowing users to clearly view stored components without opening the door.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
