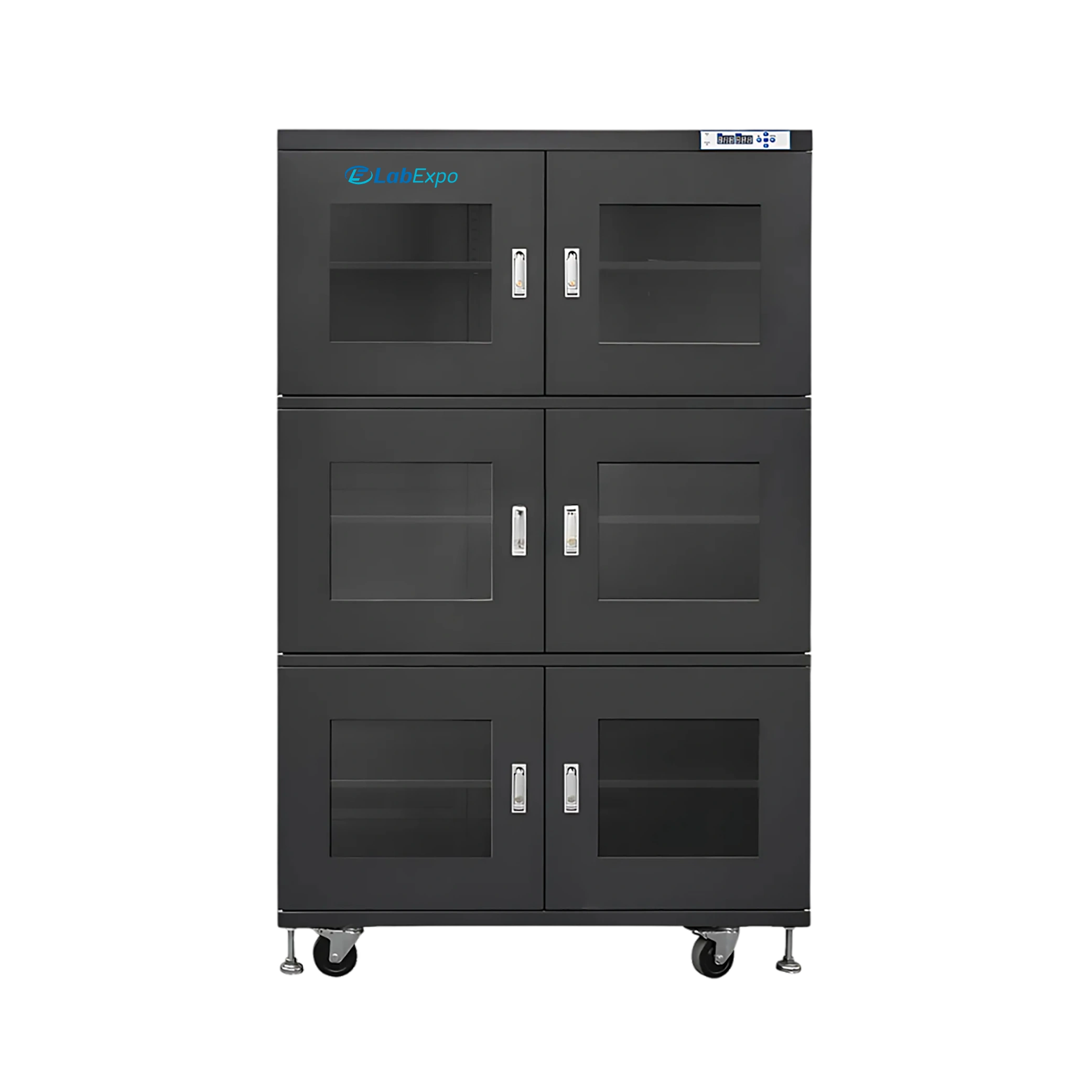

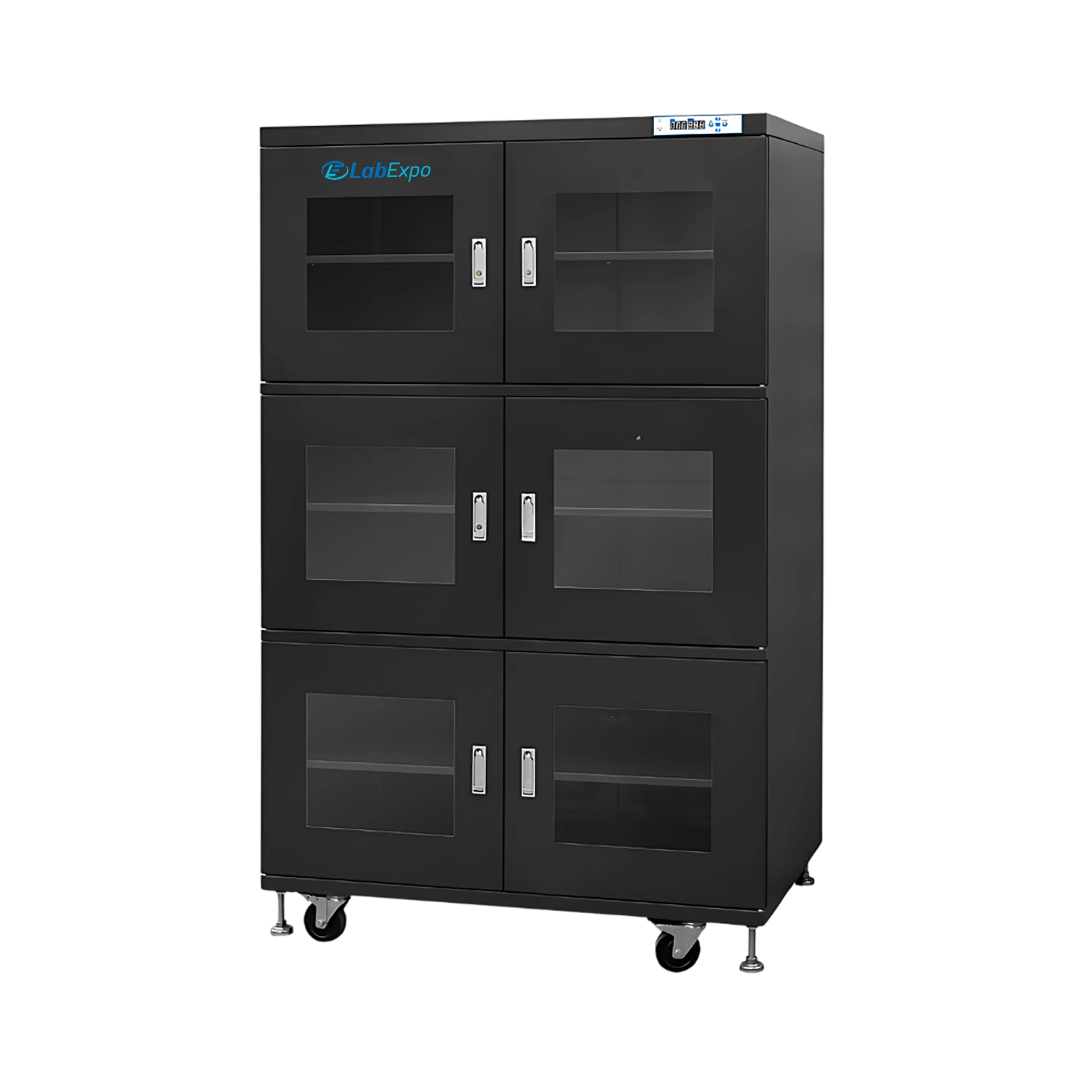

Dry Cabinet LE-DC401 is an ESD safe low humidity storage unit with a large 1436L capacity. Built-in automatic dehumidification technology maintains RH level below 10%. Integrated memory function retains setting after power failure, enhancing operational convenience. Incorporated 4A molecular sieve drying unit enables automatic regeneration without replacement. Our Dry Cabinet is suitable for storage of SMT elements, PCB boards, IC packages, SMD tapes, reel & tapes, crystals and optical lenses.
Specifications
| Capacity | 1436L |
| Humidity | Less Than 10% RH |
| ESD Type | Yes |
| Recovery Time | Maximum 30 min After Open Door 30 Seconds Then Closed |
| Ambient Temperature | 25℃ |
| No of Shelves | 5 |
| Maximum Load per Shelf | 100 Kg |
| Power Consumption | 20W |
| Interior Dimension | 1198 × 682 × 1723mm |
| Exterior Dimension | 1200 × 710 × 1910mm |
| Net Weight | 144 Kg |
| Gross Weight | 189 Kg |
Features
Applications
Function Implementation SMT and SMD material storage <10% RH environment preventing moisture absorption before assembly PCB and IC package preservation Stable ultra-dry chamber reducing delamination and defects Reel and tape management Large-capacity organized storage for production components Crystal and optical lens protection Controlled low humidity minimizing surface degradation Electronics manufacturing support 1436 L static-safe cabinet with ≤30 min humidity recovery
Catalog
1: How does the memory function add reliability to this cabinet?
Their memory system automatically recalls the last set parameters after a power failure, ensuring uninterrupted protection for stored items.
2: Which type of storage needs does this large-capacity cabinet fulfil?
These cabinets are designed to protect bulk quantities of SMT elements, ICs, reels, crystals, and optical lenses under ultra-low humidity conditions.
3: Why is this model preferred for high-volume electronic storage?
They feature a spacious 1436L capacity with five shelves, each supporting up to 100 kg, making it suitable for heavy-duty storage requirements.
4: What makes the dehumidification system highly efficient?
It uses a 4A molecular sieve drying unit with automatic regeneration, eliminating the need for frequent maintenance or replacement.
5: Why is this cabinet recommended for critical industries?
Our Dry Cabinet combines ESD safety, precise humidity regulation, and large-volume storage, making it ideal for electronics manufacturing and R&D labs.
6: What is a Dry Cabinet and what is it used for?
A Dry Cabinet is a storage unit designed to maintain a low-humidity environment, ideal for preserving moisture-sensitive items such as laboratory samples.
7: How does a Dry Cabinet maintain precise relative humidity levels?
Dry Cabinets use advanced desiccant or dehumidification systems to absorb and remove moisture from the internal environment. These systems are controlled by digital sensors and microprocessors that constantly monitor and adjust RH levels.
8: How does the memory function improve operational ease?
It eliminates the need for manual reprogramming by automatically restoring previous settings when the cabinet is restarted, saving time and reducing human error.
9: What role do integrated sensors play in a Dry Cabinet?
Integrated sensors monitor environmental parameters such as relative humidity and temperature in real time, allowing the system to maintain optimal storage conditions for moisture-sensitive items.
10: Do these systems work in varying ambient conditions?
Yes, advanced dehumidification systems are designed to adapt to ambient temperature and humidity changes, maintaining internal relative humidity stability regardless of external fluctuations.
Lab Expo Dry Cabinet supports controlled low-humidity storage where moisture protection is critical for sensitive components and materials. This cabinet dry system operates with regulated dehumidification to maintain defined RH levels and prevent moisture-related degradation. High-sensitivity sensors provide real-time condition monitoring, while digital controls with memory functions ensure consistent settings. Robust sealing and durable build support uniform humidity control and stable, repeatable storage performance for continuous technical use.
