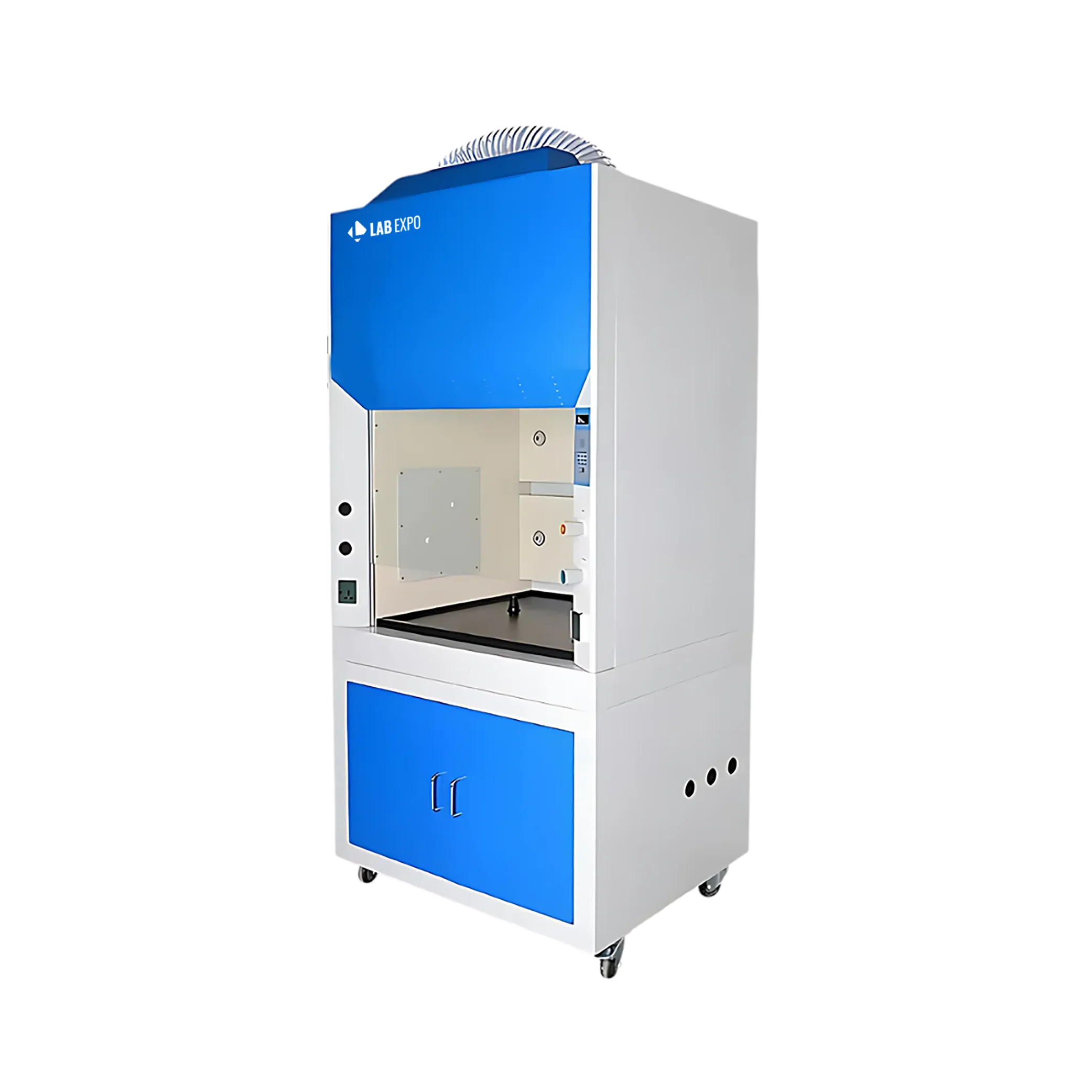

Ducted Fumehood 35-DTF100 manufactured by Lab Expo has a sash opening height of 520 mm and a working height of 850 mm presenting safety and excellent performance features. It is the ducted type of fume hood that removes toxic gases to the outside of the working environment. The fumehood material is highly authentic and is resistant to acid and base having weak strength.
Specifications
| Exterior Size(W × D × H) | 1040 x 800 x 2200 mm |
| Interior Size(W × D × H) | 820 x 670 x 730 mm |
| Maximum Opening | 520 mm |
| Fluorescent Lamp | 8 W x 1 |
| Work Surface Height | 850 mm |
| Exhaust Duct | PVC 4 meters, φ 300 mm |
| Noise | ≤ 60 dB |
| Pipe Strap | 1 pcs |
| Power Supply | 220 V / 50 Hz; 220 V / 60 Hz; 110 V / 60 Hz |
| Power Consumption | 400 W |
| Package Size(WxDxH) | 1190 x 990 x 1690 mm |
| Gross Weight | 286 kg |
Features
Applications
Function Implementation High-containment labs 400 W powers exhaust system for toxic gas removal Industrial chemistry ≤ 60 dB noise level enables quiet operation Research facilities 850 mm work surface height supports ergonomic working Quality control labs 520 mm maximum opening facilitates easy access Acidic environment labs Chemically resistant materials withstand weak acid and base exposure
Standard Accessories
UV lamp × 2
Water tap × 1
Water sink × 1
,LED fluorescent lamp × 1
Base cabinet × 1
2 Waterproof sockets: 500 W
4 meters PVC exhaust duct × 1,Gas tap × 1, Pipe strap × 1
Optional Accessories
Carbon filter
Lab Expo Ducted Fumehoods support hazardous chemical handling where full exhaust containment and controlled airflow are required to protect personnel and the laboratory environment. The system operates with ducted air extraction using built-in blowers and adjustable airflow control to remove fumes effectively. Chemically resistant phenolic work surfaces, durable interior panels, and steel build ensure long-term use, while microprocessor-based monitoring, alarms, and safety functions maintain controlled, continuous containment performance.
