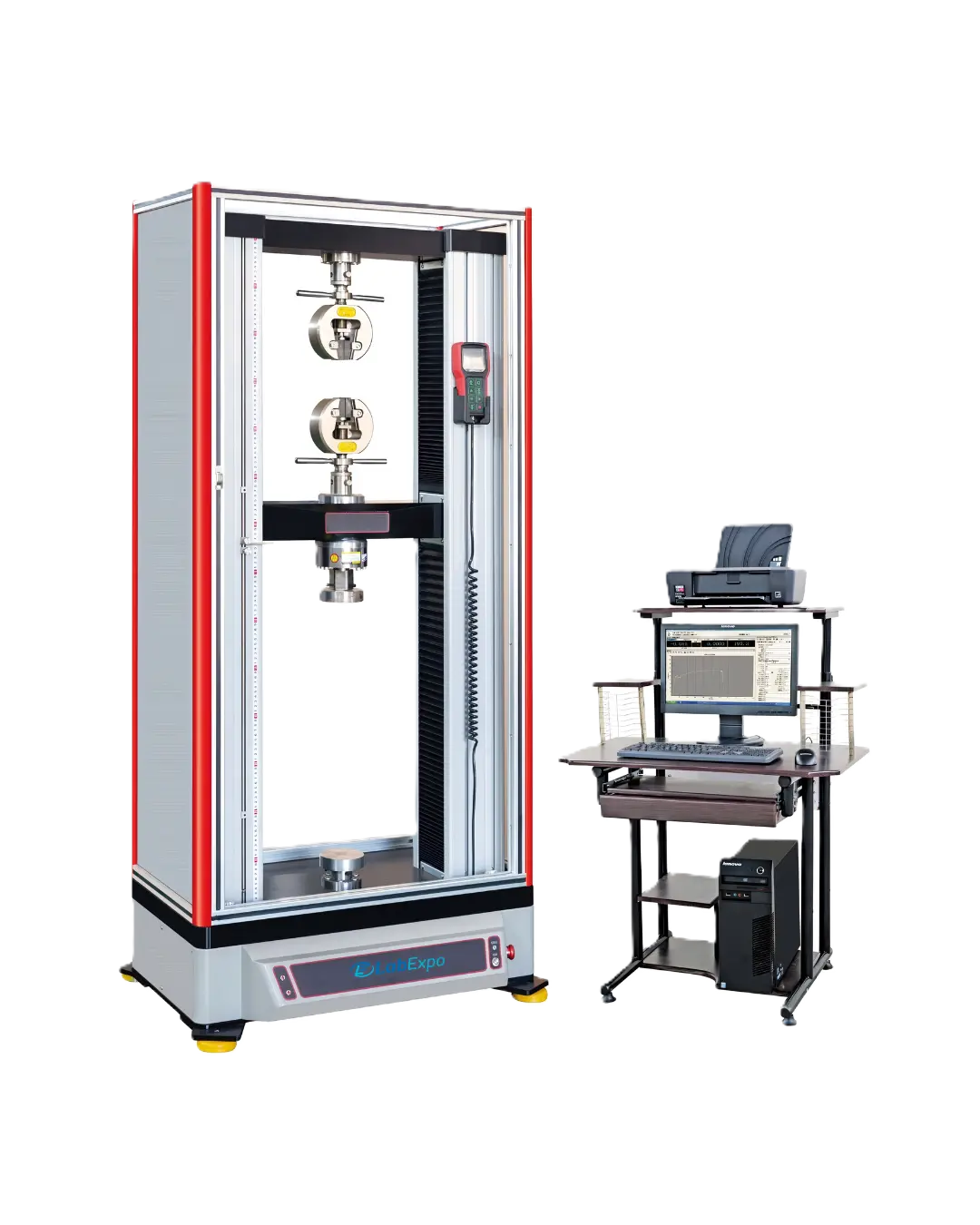

Electrochemical Testing Machine LE-ETM102 offers a load capacity of 10 kN to test on various materials with high precision. It maintains a testing load accuracy within ±0.5% for precise measurement. Equipped with a digital screen for display of test parameters and results. Built with feature to stop operation if the change in test force exceeds the specified value. Our Tester ensures reliability, and safety for comprehensive material testing applications.
Specifications
| Load Capacity | 10 kN |
| Calibration Standard | Class 0.5 |
| Testing Load Accuracy | ± 0.5% |
| Testing Load Range | 0.4% to 100% FS |
| Load Resolution | 1/500000 FS |
| Deformation Measuring Range | 0.2% to 100% FS |
| Deformation Accuracy | ≤ ±0.5% |
| Deformation Accuracy | 1/500000 FS of the max deformation |
| Test Control Mode | Three Closed Loop Control: Stress, Strain and Displacement |
| Displacement Accuracy | Within ± 0.5% of the value |
| Displacement Resolution | 0.04 μm |
| Constant Force Control Range | 0.001% to 5% FS/s |
| Constant Force Control Accuracy | When the rate is < 0.05% FS/s → accuracy is within ±2% of the set value; |
| Cross Head Speed Range | 0.001 to 1000 mm/min |
| Cross Head Speed Accuracy | Within ± 0.5% of the value |
| Testing Space (Cross Head Travel) | 1100 mm |
| Max. Tensile Testing Space | 770 mm |
| Test Width | 450 mm |
| Power Consumption | 1kW |
| Power Supply | AC220V ± 10%, 50 Hz/60 Hz |
| Dimensions | 850 × 550 × 1824 mm |
| Weight | 420 kg |
Features
Applications
Electrochemical Testing Machine LE-ETM102 is widely used for tensile, compression, bending, and shear testing of metals, polymers, composites, and other engineering materials in research laboratories, quality control, and industrial production.
Standard Accessories
Wedge action tensile grip
Round Jaw
Flat Jaw
Compression test fixture
Load cell
AC Servo motor
Reducer gear
Full closed loop controller
Test Software and Backup U disk
Hand control box
Computer
Printer
Optional Accessories
Three-point Bending Fixture
Bottom Cabinet
Safety Shield
Electronic Extensometer
Long Travel Extensometer
Lab Expo Electromechanical Universal Testing Machine have different load capacities from small tests to larger samples. They are equipped with high-precision load cells and extensometers, ensuring accurate measurements. They have advanced software for data acquisition and test management, enhancing its functionality. These provide precise control over test speed and force, ensuring consistent and accurate results. Our testing machine has automatic data analysis providing real-time results.
