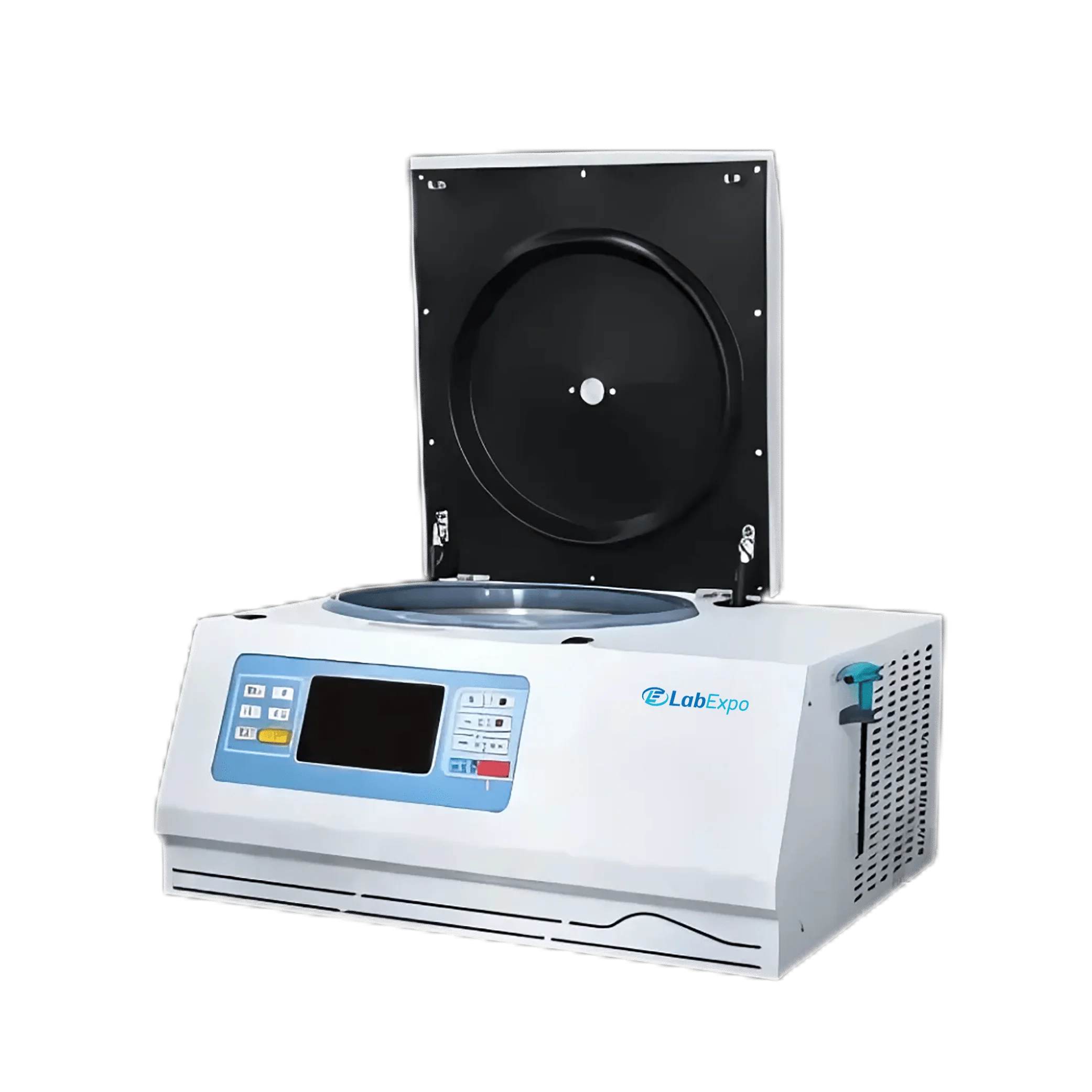

High Speed Refrigerated Centrifuge 02A-HRC109 offers a maximum speed of 25,000 rpm, enabling rapid and efficient sample processing. It operates at a temperature range from -20℃ to 40℃, making it ideal for temperature-sensitive applications. Its ergonomic structure features a low opening height and a one-press lid closure for effortless operation. Our centrifuge is powered by an AC frequency conversion brushless motor, which ensures smooth, reliable performance with minimal maintenance.
Specifications
| Max Speed | 25000 rpm |
| Temp Range | -20℃ to 40℃ |
| Max RCF | 50803 × g |
| Max Capacity | 6× 100 ml |
| Temp Accuracy | ±1.0℃ |
| Timer | 1 s to 99 h 59 min 59 s |
| Revolutions/min | ±10 r/min |
| Noise Level | ≤ 62dB (A) |
| Rotor Automatic Identification | Yes |
| Voltage | AC 220 ± 22 V, 50 Hz, 15 A |
| Power | 1.5KW |
| Dimension (W × D × H) | 730 × 660 × 400 mm |
| Weight | 118 kg |
Features
Applications
Function Implementation High-speed stratification 25000 rpm enables rapid separation of dense components Cold sample processing Controlled temperature range stabilizes sensitive materials Parallel small-volume runs 6-position capacity supports batch tube handling Repeatable workflows Programmable settings maintain consistent parameters Thermal stability during runs ECO refrigeration maintains internal cooling accuracy
Rotor Selection
Rotor Name | Capacity | Max Speed (r/min) | Max RCF (×g) |
Angle rotor 01 | 12×1.5/2.0ml (titanium alloy) | 25,000 rpm | 44,720 ×g |
Angle rotor 02 | 24×1.5/2.0ml | 23,000 rpm | 50,803 ×g |
Angle rotor 03 | 12×5ml | 20,000 rpm | 27,100 ×g |
Angle rotor 04 | 12×10ml | 19,000 rpm | 32,529 ×g |
Angle rotor 05 | 48×1.5/2.0ml | 19,000 rpm | 39,149 ×g |
Angle rotor 06 | 6×50ml (round bottom) | 16,500 rpm | 27,622 ×g |
Angle rotor 07 | 8×50ml (round bottom) | 16,000 rpm | 28,549 ×g |
Angle rotor 08 | 6×50ml (Conical/round bottom) | 15,000 rpm | 25,356 ×g |
Angle rotor 09 | 12×15ml (conical bottom) | 14,000 rpm | 22,241 ×g |
Angle rotor 10 | 6×100ml | 13,500 rpm | 22,209 ×g |
Lab Expo Refrigerated Centrifuge supports temperature-controlled separation workflows where high-speed centrifugation and active cooling are required to protect sample integrity. This cooling centrifuge operates with microprocessor-regulated speed and refrigeration to maintain defined temperatures during runs. Digital displays manage speed, time, and RCF, while electronic lid locking and protections against overspeed, overheating, and imbalance ensure controlled, repeatable centrifugation for demanding laboratory operations.
