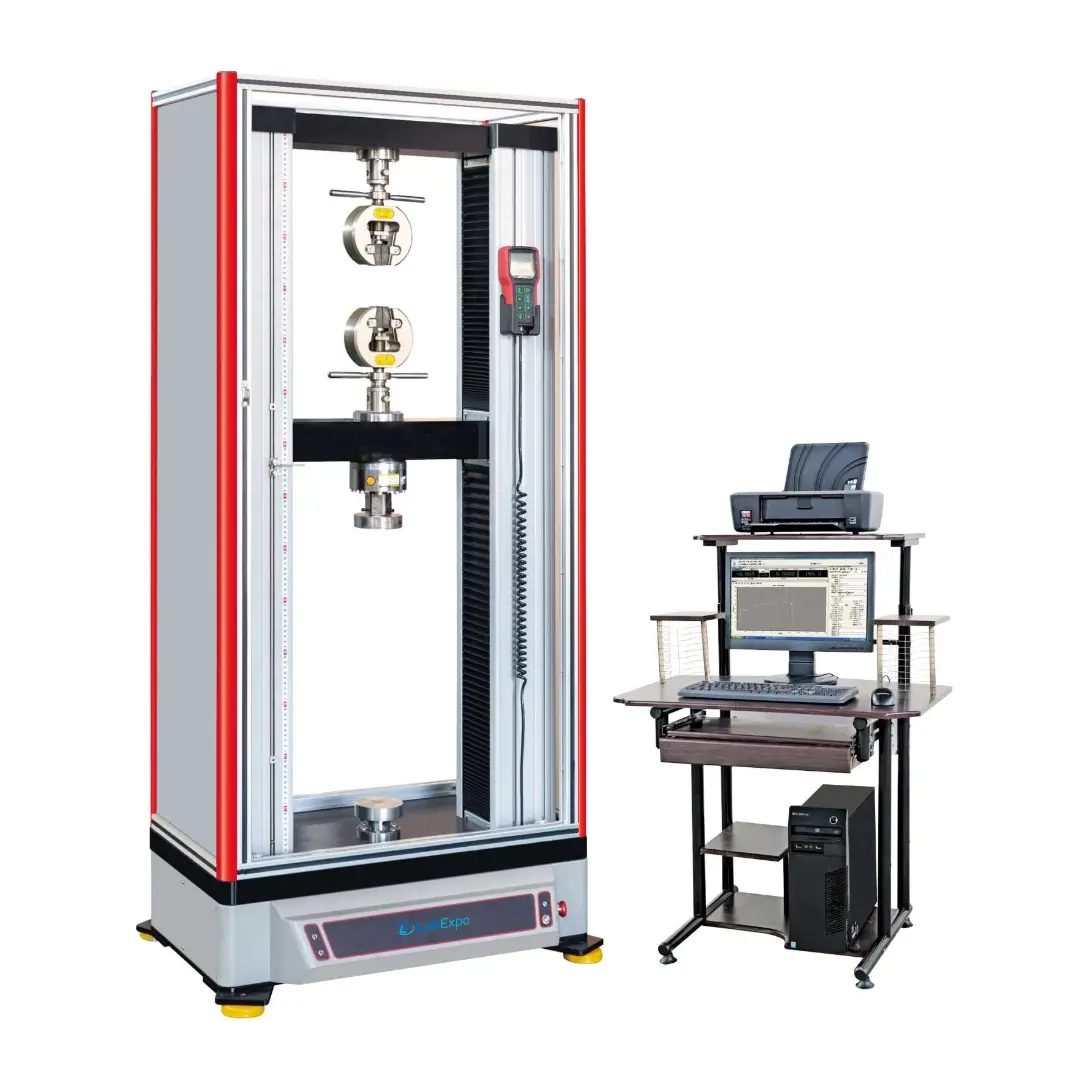

Electrochemical Testing Machine LE-ETM103 designed with 20 kN load capacity ensures accurate and reliable material testing performance. It features a testing load accuracy of ±0.5% providing exact and consistent measurement results. Equipped with three closed-loop control modes for stress, strain, and displacement to deliver accurate testing results. Our Electrochemical Testing Machine is suitable for tensile, compression, bending, and fatigue testing.
Specifications
| Load Capacity | 20 kN |
| Calibration standard | Class0.5 |
| Testing Load Accuracy | ±0.5% |
| Testing Load Range | 0.4 % to 100% FS |
| Load Resolution | 1/500000FS |
| Deformation Measuring Range | 0.2 % to 100 % FS |
| Deformation Accuracy | ≤±0.5% |
| Deformation Resolution | 1/500000FS of max deformation |
| Test Control Mode | Three closed loop control, stress, strain and displacement |
| Displacement Accuracy | Within ±0.5 %of the value |
| Displacement Resolution | 0.04μm |
| Constant Force Control Range | 0.001% to 5% FS/s |
| Constant Force Control Accuracy | ±2% at rate <0.05% FS/s |
| Constant Deformation Control Range | 0.005 to 5% FS/s |
| Constant Deformation Control Accuracy | ±2% at rate <0.05% FS/s |
| Crosshead Speed Range | 0.001 to 1000mm/min |
| Crosshead Speed Accuracy | ±0.5% of the value |
| Testing Space | 1100 mm |
| Max. Tensile Testing Space | 770 mm |
| Test width | 450 mm |
| Power supply | 1kW, AC220V±10%, 50 Hz/60 Hz |
| Dimensions | 850 × 550 × 1824 mm |
| Weight | 420 kg |
Features
Applications
Electrochemical Testing Machine LE-ETM103 is widely used for mechanical testing of materials through tensile, compression, bending, and fatigue tests, supporting quality control and laboratory research.
Standard Accessories
Wedge action tensile grip
Round Jaw
Flat Jaw
Compression test fixture
Load cell
AC Servo motor
Reducer gear
Full closed loop controller
Test Software and Backup U disk
Hand control box
Computer
Printer
Optional Accessories
Non-metallic three point Bending Fixture
Extensometer
Protection Cover with Grid
Lab Expo Electromechanical Universal Testing Machine have different load capacities from small tests to larger samples. They are equipped with high-precision load cells and extensometers, ensuring accurate measurements. They have advanced software for data acquisition and test management, enhancing its functionality. These provide precise control over test speed and force, ensuring consistent and accurate results. Our testing machine has automatic data analysis providing real-time results.
