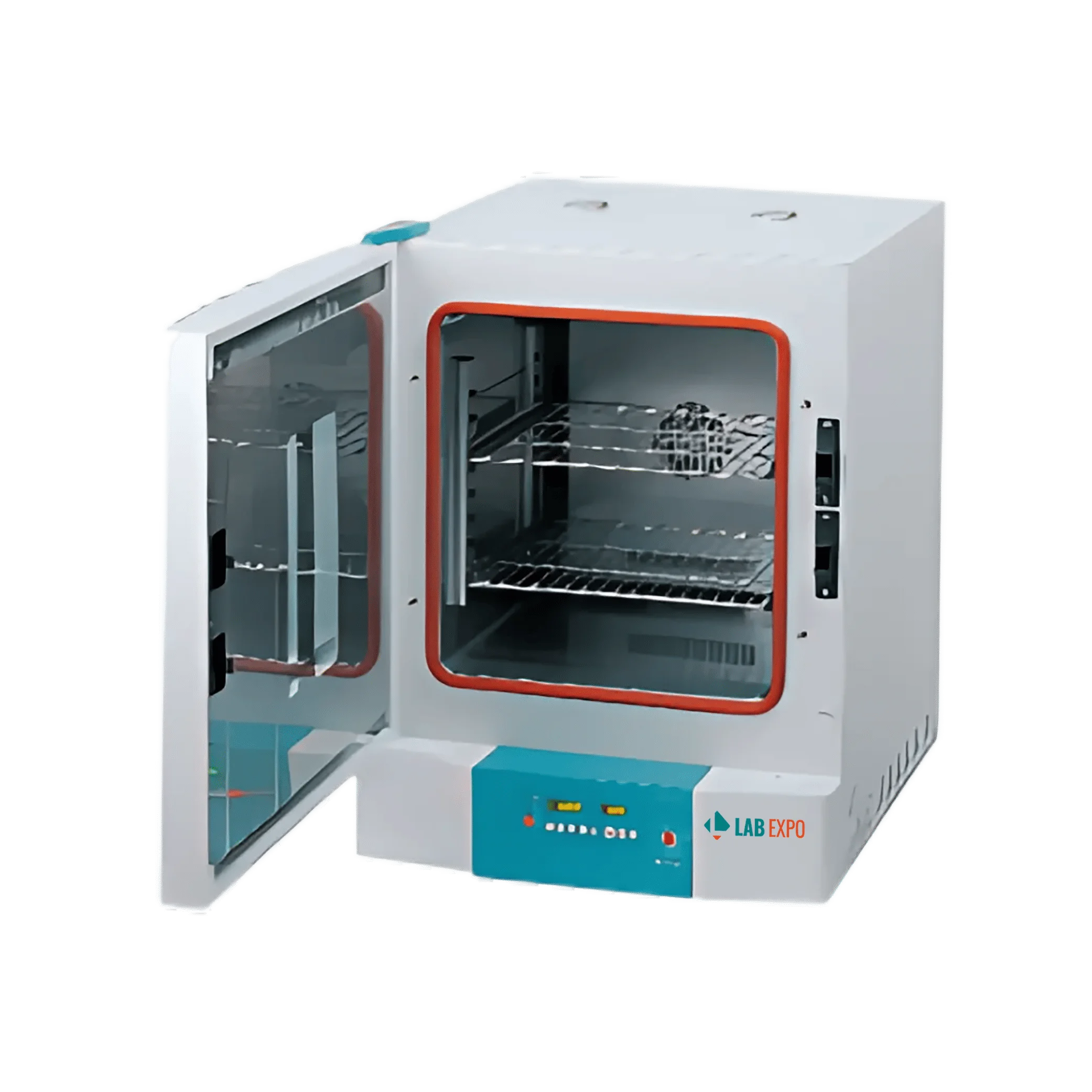

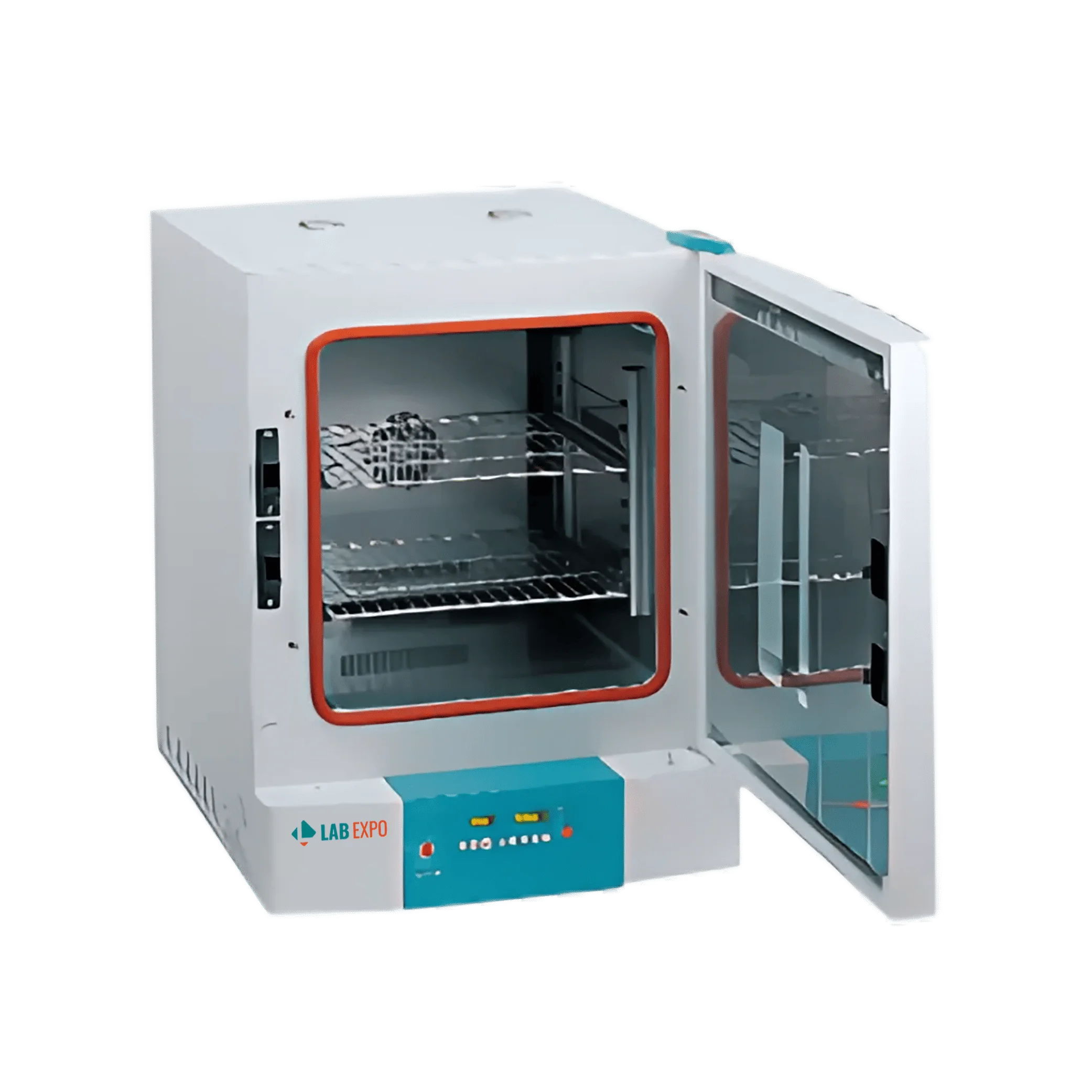

Forced Convection Oven 45-FCO101

45-FCO101 Forced Convection Oven delivers an effective drying performance especially suitable for sample with high moisture content. This laboratory oven provides optimal air circulation, temperature uniformity and brief heat up times. This device is specifically designed for applications that require less temperature uniformity than any other convection type oven.

Specifications

Chamber Volume (ltrs) 102Ltrs
Temperature Range (°C) Amb. +10 to 250
Temperature Fluctuation at 100°C ±0.6
Variation at 100°C ±1.3
Internal Dimension (w×d×h) 480*410*520mm
External Dimension (w×d×h) 657*692*870mm
No of Wire Shelves (standard/max) 2/11
Net Weight 63
Electrical Requirements 6.1A

Features

  • Microprocessor PID control/ Temperature Calibration/ Automatic tuning
  • Forced air convection generated by noiseless and powerful sirocco fans ensures optimal air circulation
  • Temperature uniformity and short heat up time is ensured
  • Fan speed control by an analog dial prevents powdered samples from blowing away
  • Adjustable dual slide vents for inner vapour circulation
  • Intuitive control panel with bright LED display
  • Dual wait on/off timer modes
  • Convenient pre-setting function for three most commonly used temperature settings
  • Rounded inner chamber corners for easy cleaning and optimal airflow
  • Corrosion resistant incoloy sheath heating element and stainless-steel interior
  • Threefold tempered glass window provides clear inside view of the chambers
  • RS-232 interface for external control and data collection
  • Keypad lock function prevents accidental changes during operation
  • Automatic power run after interruption
  • Over temperature and over current protection
  • Audible and visible door alarms
  • Innovative design guarantees maximum thermal protection
  • No exposed heating elements located inside the chamber to ensure maximum user safety
  • Low noise during operation
  • Consistent air circulation and heat uniformity
  • Low energy consumption for reduced operating costs
  • Fan speed and air exchange rates are adjustable
  • User programmable alarm set points
  • Cleanroom design with minimal joints and crevices is easy to clean

Applications

These ovens are used in medical, clinical and many other laboratory functions.

Catalog

Forced Convection Oven 45-FCO101 Catalog

Related Models Of Forced Convection Oven

Our Forced Convection Oven features a large volume providing ample space to accommodate a high number of samples. These oven has precise temperature control with digital settings for accuracy and stability. They maintain uniform heat throughout the chamber ensuring that all samples are exposed to the same conditions. These oven also allow fan speed adjustment to optimize airflow and heating for different types of samples. Our oven's insulated construction helps retain heat, improving energy efficiency and reducing operational costs.
