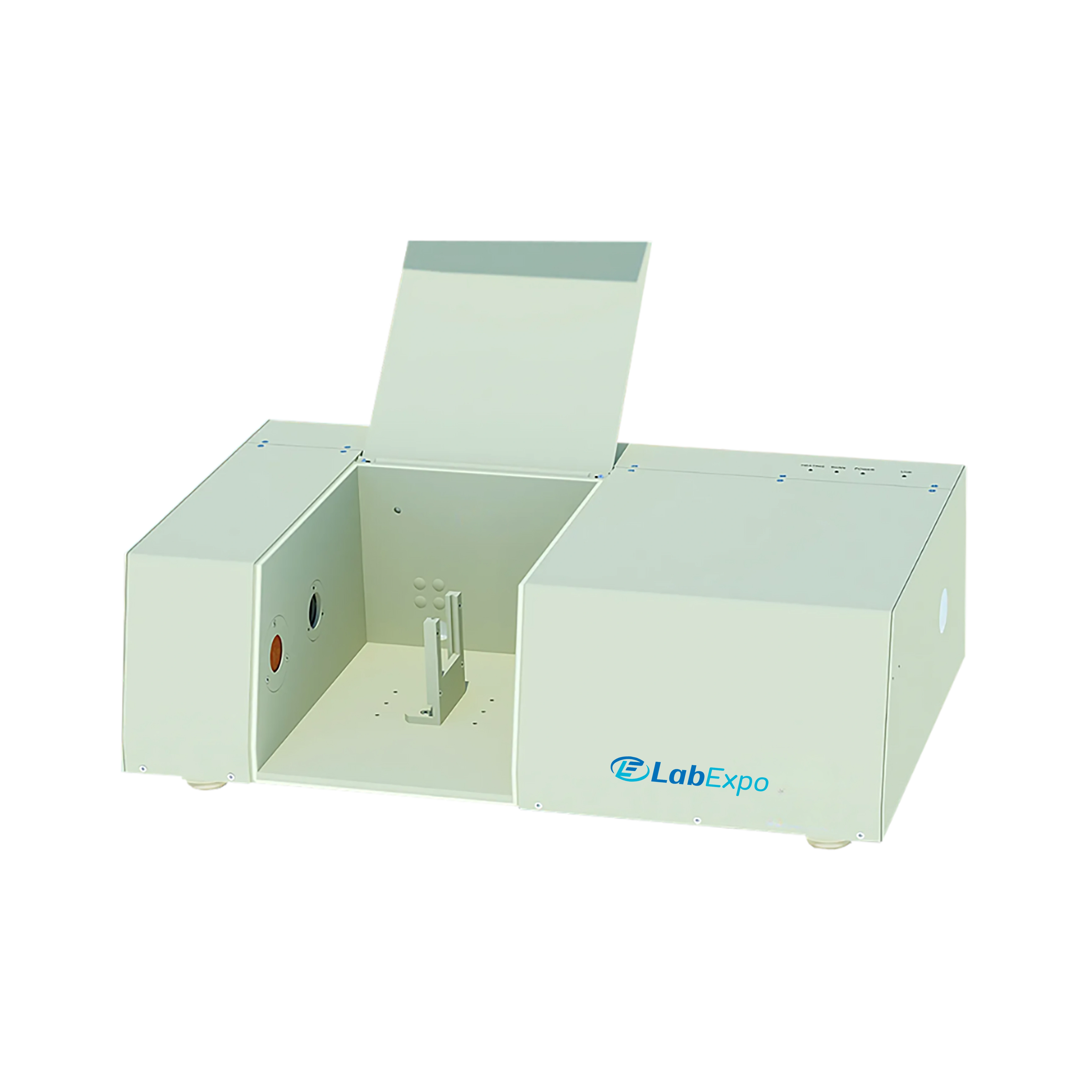

FTIR Spectrometer LE-FTI101 offers a wide spectral range of 350 to 7800 cm⁻¹ to enable comprehensive analysis across the mid-infrared region. It operates with a scanning speed of 2 mm/s to deliver consistent measurements. Equipped with an air-cooled ceramic infrared light source for long-lasting performance. Integrated with DLATGS detector to provide high sensitivity. Our FTIR Spectrometer ensure high accuracy, stability, and efficiency for precise operation.
Specifications
| Spectral Range | 350 to 7800cm⁻¹ (Mid-Infrared Region) |
| Resolution Ratio | Better than 1.0 cm⁻¹ |
| Wave Number Accuracy | 0.01 cm⁻¹ |
| Signal-to-Noise Ratio (SNR) | 45,000:1 (P-P value, at ~2100 cm⁻¹, 4 cm⁻¹ resolution, 1 min data collection) |
| Detector | DLATGS |
| Light Source | Air-Cooled Ceramic Infrared Light Source |
| Beam Splitter | 60 mm, Multi-Layer Coated KBr with Moisture-Proof Coating |
| Laser | VCSEL Laser |
| Scanning Speed | 2 mm/s |
| Baseline Straightness | ≤ 0.1% T |
| Aperture Ratio | 1/3.2 |
| Sample Beam Diameter | 10 mm |
| Beam Diameter | 30 mm |
| Interferometers | Automatic calibration |
| Environmental Temperature | 15 to 28 ℃ |
| Relative Humidity | < 65% (non-condensing) |
| Cleaning Function | Yes |
| Data Transmission | USB 2.0 |
| Operating System | Windows 10 and above |
| Working Voltage | AC220V, DC12V, 40W |
| External Dimensions | 590 × 390 × 190 mm |
| Sample Room Size | 200 × 260 × 160 mm |
| Weight | 26 kg |
Features
Applications
FTIR Spectrometer LE-FTI101 is used for material identification, chemical analysis, quality control, environmental monitoring, pharmaceutical testing, food and agricultural analysis, and forensic investigations, offering accurate and sensitive measurements for solids, liquids, and gases.
Standard Accessories
Supporting English software
AC power adapter and cable
USB data cable
Standard calibration sheet (polystyrene)
1 set of supporting tools
Color changing silicone
Transmission test attachments
Reflection test attachments
Optional Accessories
Solid package accessory
Liquid package accessory
ATR accessory
