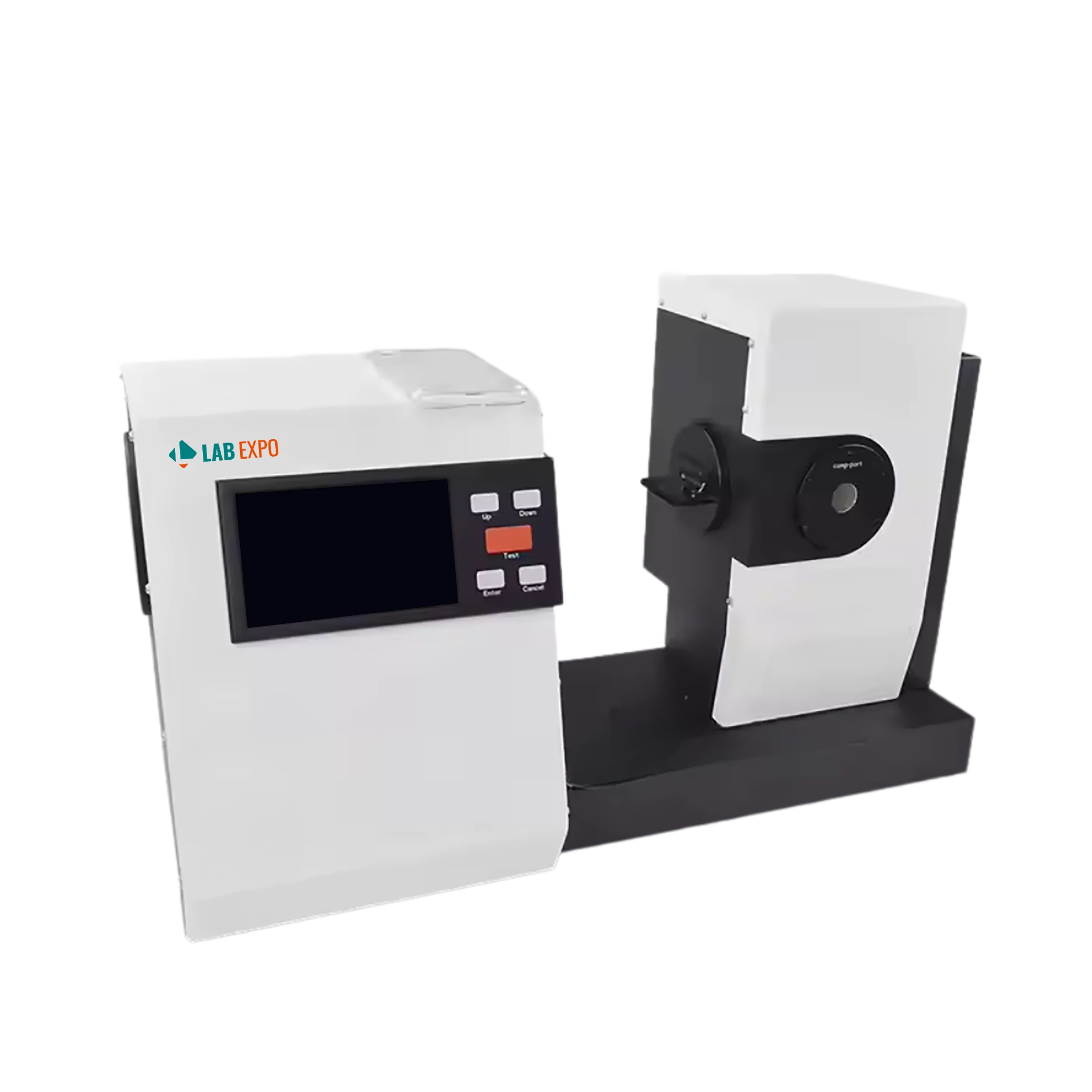

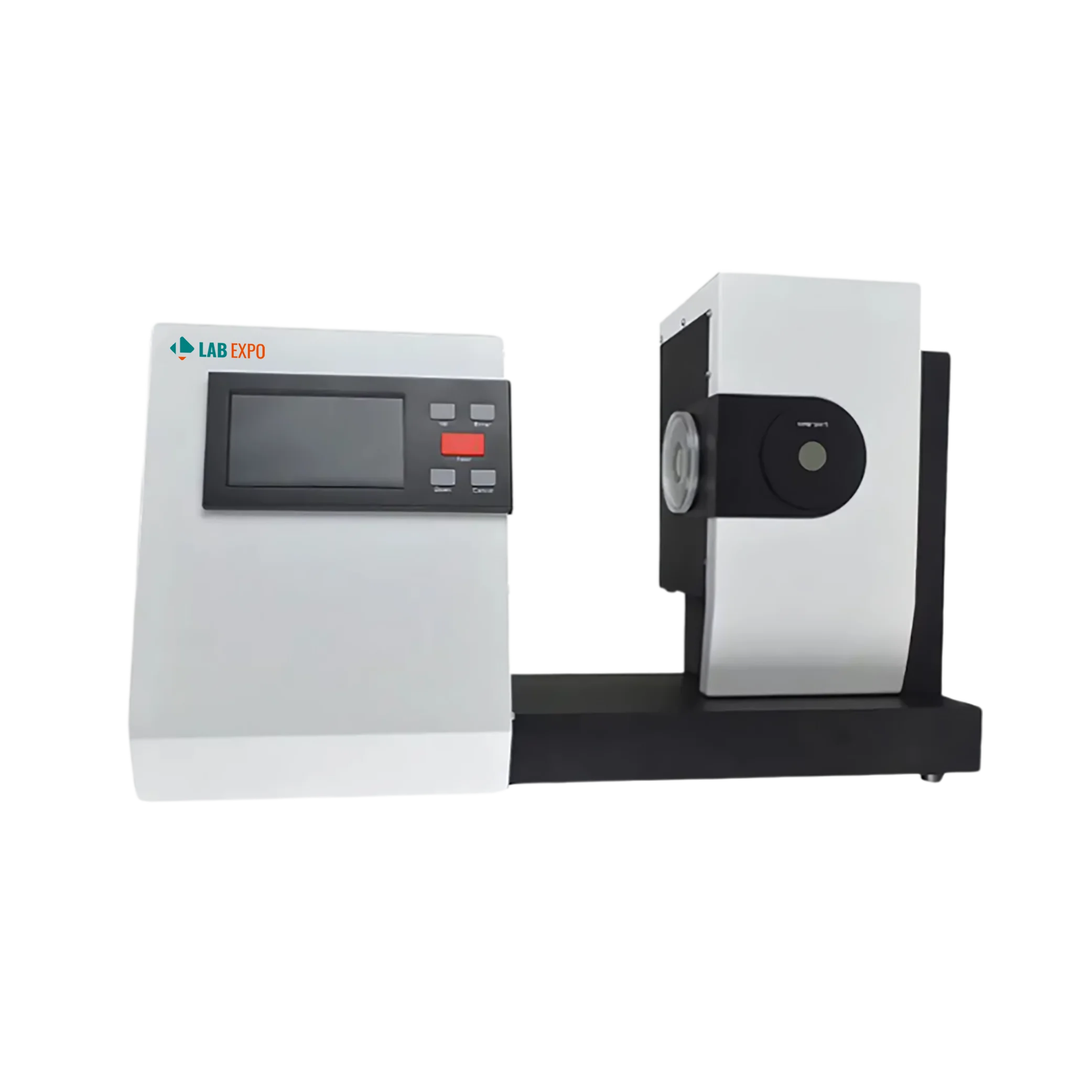

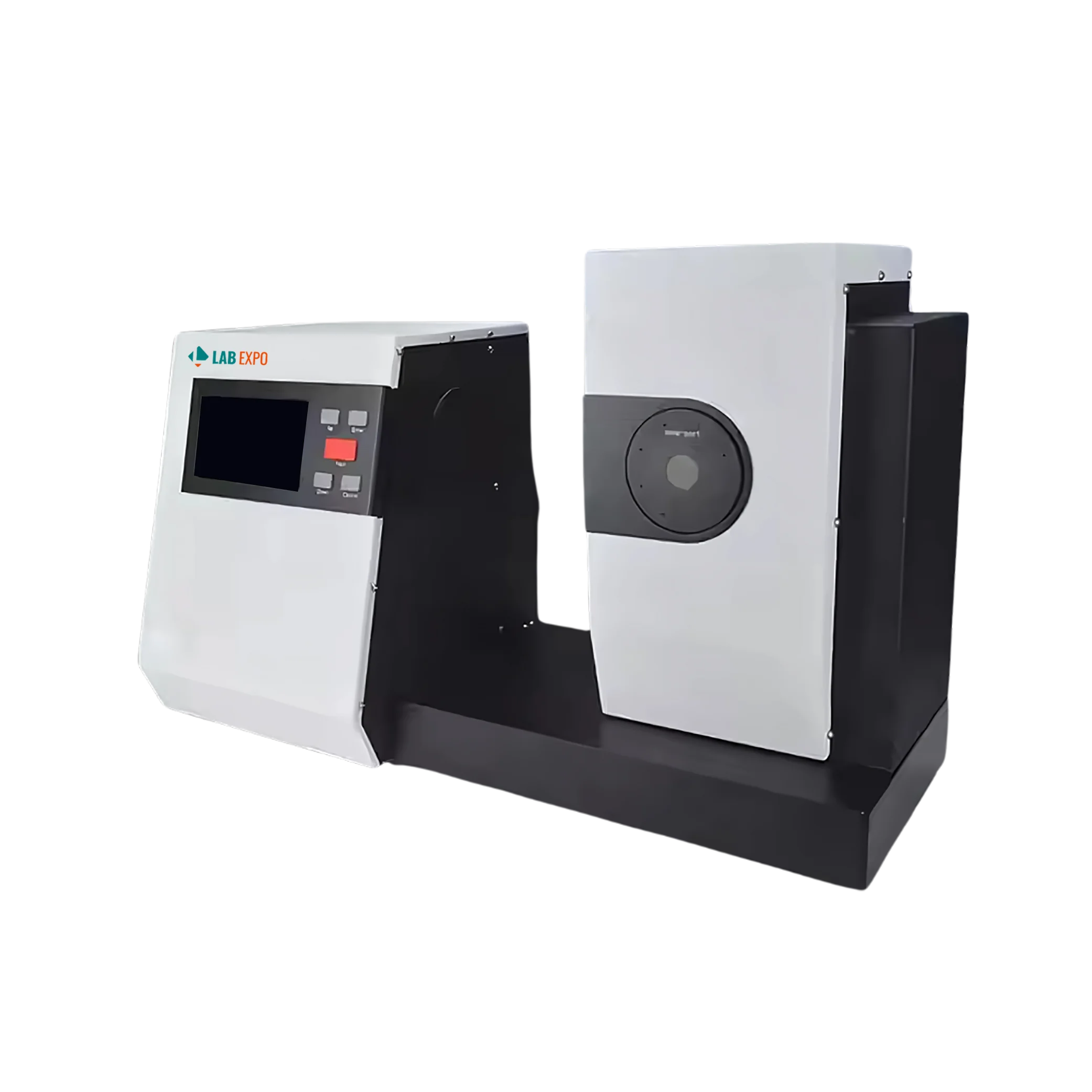

Haze Meter 165-HMT100 offers a measurement range of 0 to 100% with a haze resolution of 0.01%. It measures haze, transmittance, yellowness, and Whiteness index with precision. It features an open measurement area and supports vertical measurements. It is equipped with software for detailed analysis. Our haze meter ensures accurate results with transmittance compensation.
Specifications
| Measurement Area | 16.5 mm |
| Measurement Range | 0 to 100 % |
| Sample Port | 21 mm |
| Haze Resolution | 0.01 |
| Haze Responsibility | ≤ 0.1 |
| Sample Size | Thickness ≤ 150 mm |
| Working Temperature | 10 to 40 °C |
| Storage Temperature | 0 to 50 °C |
| Wavelength Range | 400 to 700 nm |
| Wavelength Interval | 10 nm |
| Light Source | CIE-A, CIE-C, CIE-D65 |
| Parameters | HAZE, Transmittance(T) |
| Spectral Response | CIE Luminosity function y |
| Geometry | 0/d |
| Display | 5.0-inch display |
| Memory | 20000 values |
| Interface | USB |
| Standards | ASTM D1003/D1044 & ISO13468/ISO14782 |
| Power Supply | 220 V with power cable |
| Dimension | 598 × 247 × 366 mm |
Features
Applications
Function Implementation Quality Control Labs 0 to 100 % measurement range enables accurate haze assessment Research Environments 0.01 haze resolution supports precise transmittance measurements Industrial Testing ASTM D1003/D1044 & ISO13468/ISO14782 standards compliance ensures reliable results Clinical Settings 10 to 40 °C working temperature range allows for stable operation Material Analysis 400 to 700 nm wavelength range enables comprehensive spectral analysis
Catalog
Lab Expo Haze Meters are designed for precise haze measurement in transparent and translucent materials, supporting optical clarity evaluation across varied applications. Multiple light sources ensure consistent readings under different test conditions, while the touchscreen interface enables controlled operation. Broad sample compatibility, integrated data storage, and robust build make these instruments suitable for routine quality control and analytical research workflows.
