Horizontal Autoclave 26-HAC502
Product1
Product2
Product3

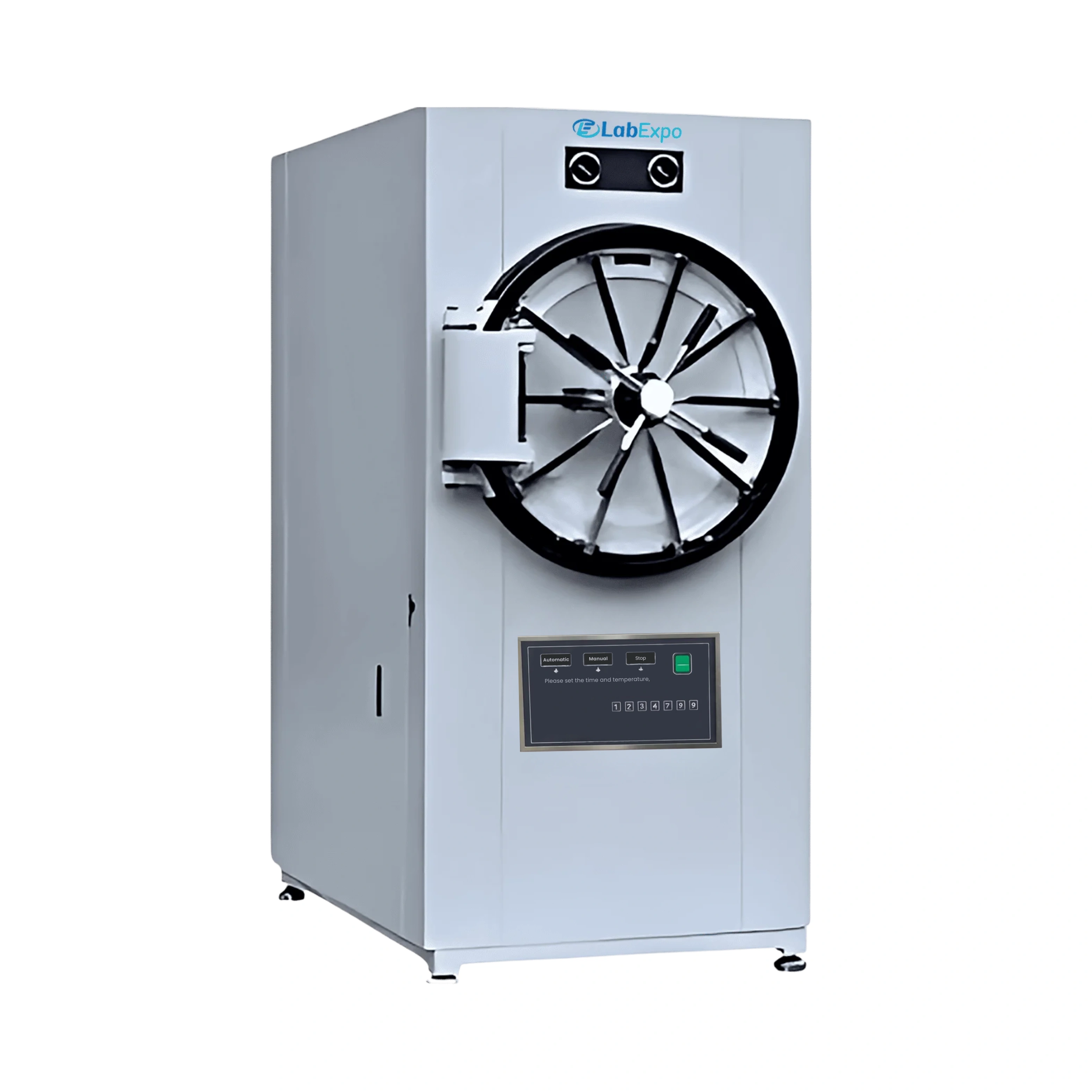

Horizontal Autoclave 26-HAC502

Horizontal Laboratory autoclave is 280 Liters a microprocessor controlled automatic autoclave. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to the high pressure and temperature maintained. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.

Specifications

Capacity 280 L
Sterilization Temperature 134 °C
Sterilization Pressure 0.22 Mpa
Timer Range 0 - 99 minutes
Heat Average ≤ ± 2 ℃
Chamber Dimensions ( Φ × D ) 600 × 1000 mm
Product Dimension ( L × W × H ) 1520×910×1900mm
Net Weight 462 kg
Gross Weight 570 kg
Power Supply 12 kW / 380 V 50 Hz

Features

  • Computer-controlled system with LCD interface for real-time monitoring of operating parameters
  • Pressure-regulated steam sterilization operating up to 0.22 MPa
  • High-temperature sterilization capability supporting cycles up to 134 C
  • Pressure-interlocked door locking system preventing access until chamber pressure falls to 0.027 MPa
  • Self-inflating leak-proof chamber design to maintain sterilization integrity

Applications

FunctionImplementation
Media SterilizationCulture media used in aseptic preparation processes
Instrument SterilizationSurgical and laboratory instruments resistant to high temperature and pressure
Medical Material ProcessingDressings and intravenous equipment
Component SterilizationRubber closures and glass equipment components
Aseptic Workflow SupportSterilization of heat- and pressure-tolerant items used in aseptic techniques

Catalog

Horizontal Autoclave 26-HAC502 Catalog

Related Models Of Horizontal Autoclave

Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
