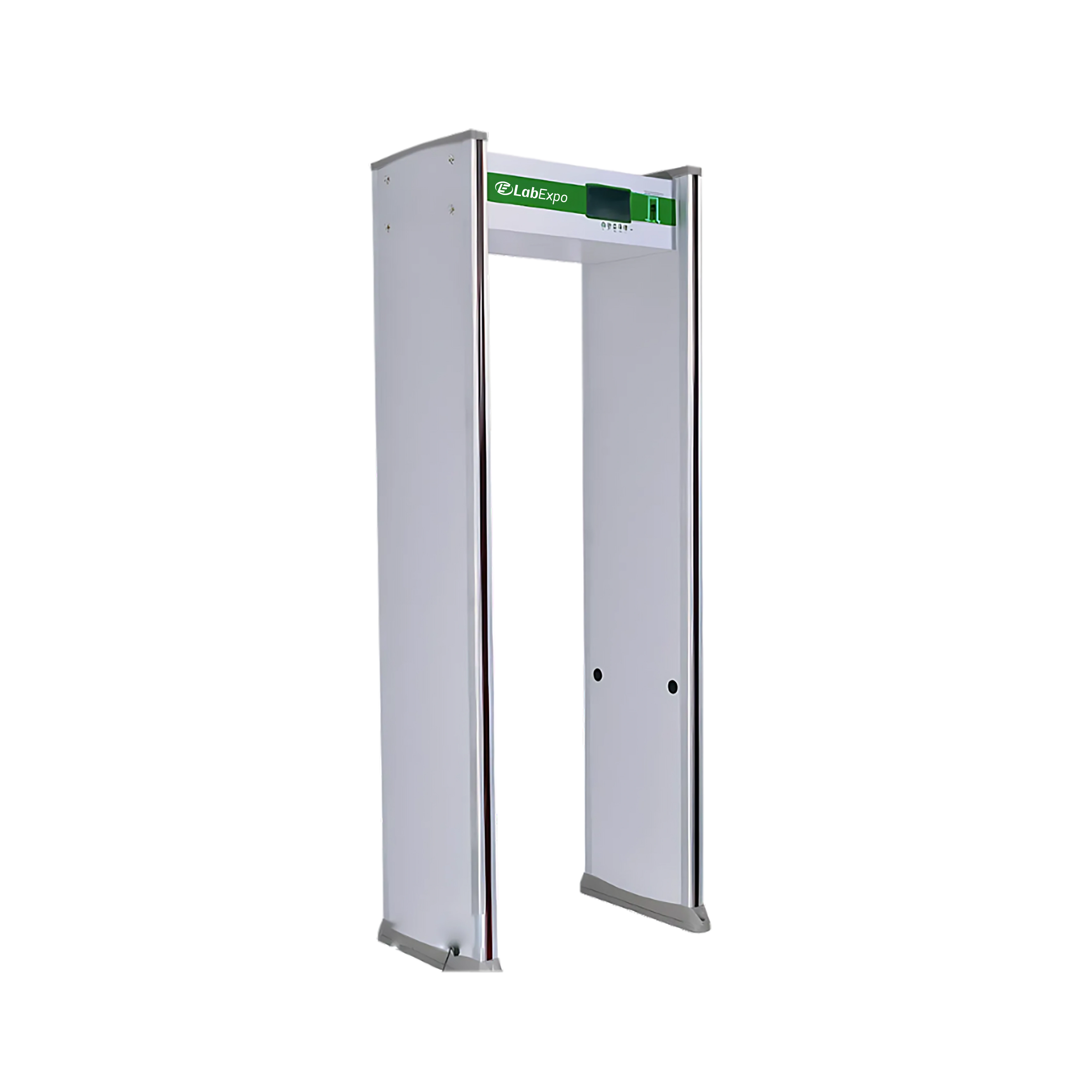

Walk-through Metal Detector LE-WMD205 is designed with 33 detection zones for accurate identification of metal objects. It offers a 7-inch LCD screen for clear visual display and easy monitoring during screening operations. Equipped to scan up to 60 people per minute, it supports fast and efficient security screening. Built-in detection accuracy ensures object identification at different body heights and angles. Our Walk-through Metal Detector is suitable for applications in airports, schools, stadiums, courts, and government buildings.
Specifications
| Space | Outdoor Use |
| Detection Zones | 33 |
| Operation Methods | Remote Control and Keyboard Control |
| Working Environment | -20°C to 45°C |
| Sensitivity Adjustment | Level 0 to 300 |
| High Sensitivity | Can Detect a Clip |
| Low Sensitivity | Detects Big Metal Articles such as Knives, Guns, Copper, Aluminium and Zinc(More than 150g) |
| Anti-Shock | Shock Proof to avaoid False Alarms |
| Intelligent Traffic and Alarm Counters | Calculates Traffic Flow and Resultant Alarms |
| Tamper-Proof | Operation Program Protected by Password |
| Weather-Proof Level | IP65 |
| Technology | DSP and Module Construction |
| Display | 7-inch LCD Screen |
| Power Consumption | 12 W |
| Power Supply | AC 215V to 230V, 50/60 Hz |
| Outer Frame Dimension | 2200 × 760 × 600 mm |
| Inner Frame Dimension | 2000 × 760 × 600 mm |
| Dimension | 226 × 635 × 205 mm |
| Packaging Dimension | 750 × 395 × 250 mm |
| Net Weight | 40 Kg |
| Gross Weight | 45 Kg |
Features
Applications
Walk-through Metal Detector LE-WMD205 is suitable for screening at airports, schools, stadiums, courthouses, government buildings, correctional facilities, corporate offices, exhibition centers, and large public events.
Lab Expo Walk-through Metal Detector offers reliable and accurate detection of concealed metallic threats. They ensure high throughput with minimal false alarms for smooth and secure access control. These detectors are equipped with multi-zone detection capabilities to pinpoint the exact location of metallic objects. Their user-friendly interface and real-time alerts support quick decision-making by security personnel. Our Walk-through Metal Detector is ideal for enhancing safety at airports, government buildings, schools, and event venues.
