Horizontal Autoclave 26-HAC601

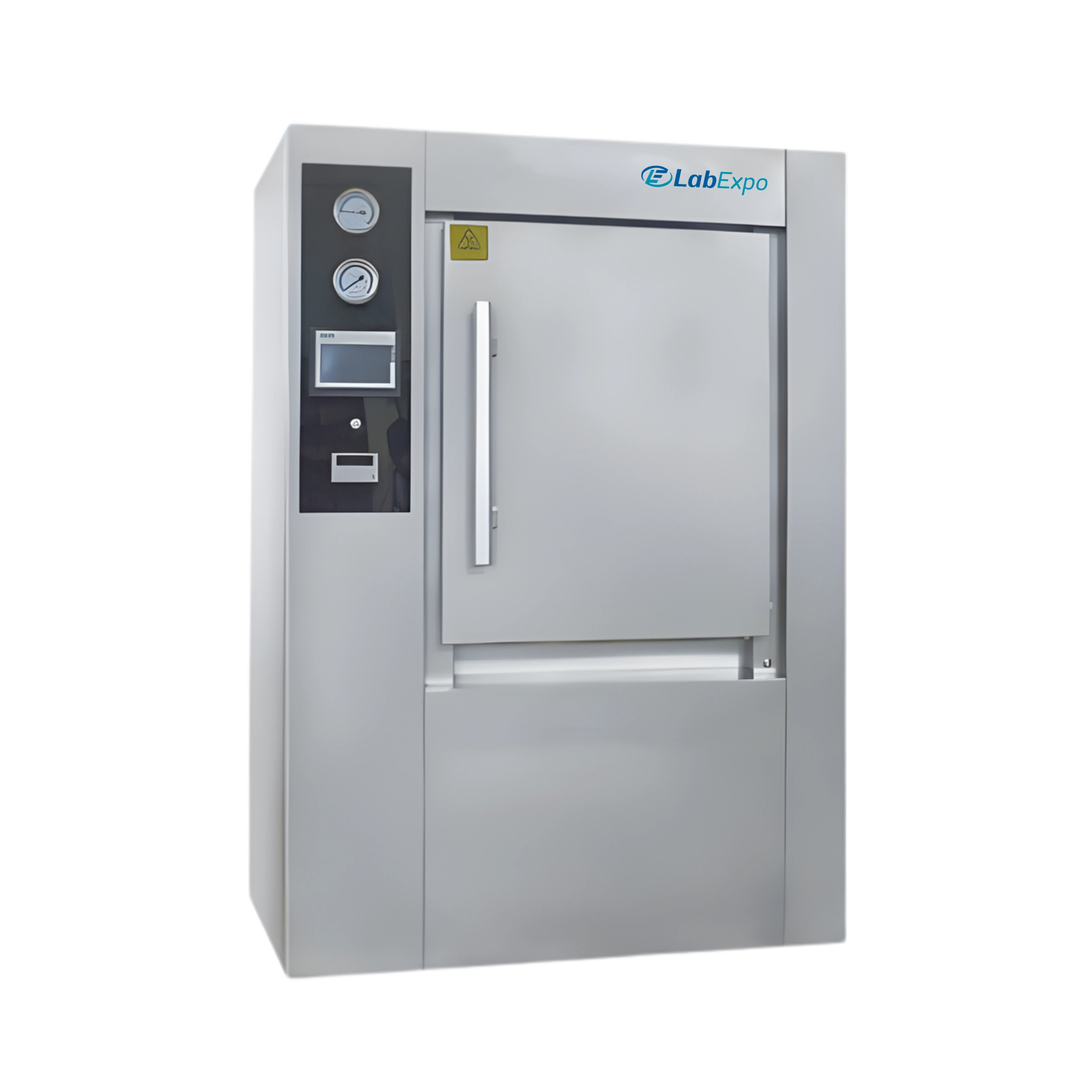

Horizontal Autoclave 26-HAC601

Horizontal Laboratory autoclave is a 360 Liters pulse vacuum single door autoclave. With a maximum working temperature of 138 °C it effectively sterilizes media, liquids and waste to be discarded. High quality insulation and air sealed structure makes it efficient for large scale sterilization. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.

Specifications

Capacity 360 L
Sterilization Temperature 138 °C
Sterilization Pressure 0.25Mpa
Steam Pressure and the Consumption 0.4 - 0.6 Mpa / 20 kg
Water Source Pressure and the Consumption 0.2- 0.3 Mpa / 150 kg
Compressed Air Pressure 0.6 - 0.8 Mpa
Inner Chamber Dimension ( L × W × H ) 1000 × 600 × 600 mm
Outer Dimension ( L × W × H ) 1300 × 1300 × 1700 mm
Net Weight 760 kg
Power Supply 26 kW

Features

  • LCD-based monitoring interface displaying live operating status and cycle parameters
  • Pressurized steam sterilization operation maintained at 0.22 MPa
  • Pressure-interlocked safety door preventing access until chamber pressure drops below 0.027 MPa
  • Self-inflating, leak-proof chamber architecture to sustain sealed sterilization conditions

Applications

FunctionImplementation
Culture Media ProcessingSterilization of growth media used in aseptic preparation
Instrument ReprocessingHeat- and pressure-compatible surgical and laboratory instruments
Medical Consumable HandlingDressings and intravenous delivery components
Glass Component TreatmentRubber stoppers and glass equipment parts
Aseptic System SupportSterilization of materials used in controlled sterile procedures

Catalog

Horizontal Autoclave 26-HAC601 Catalog

Related Models Of Horizontal Autoclave

Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
