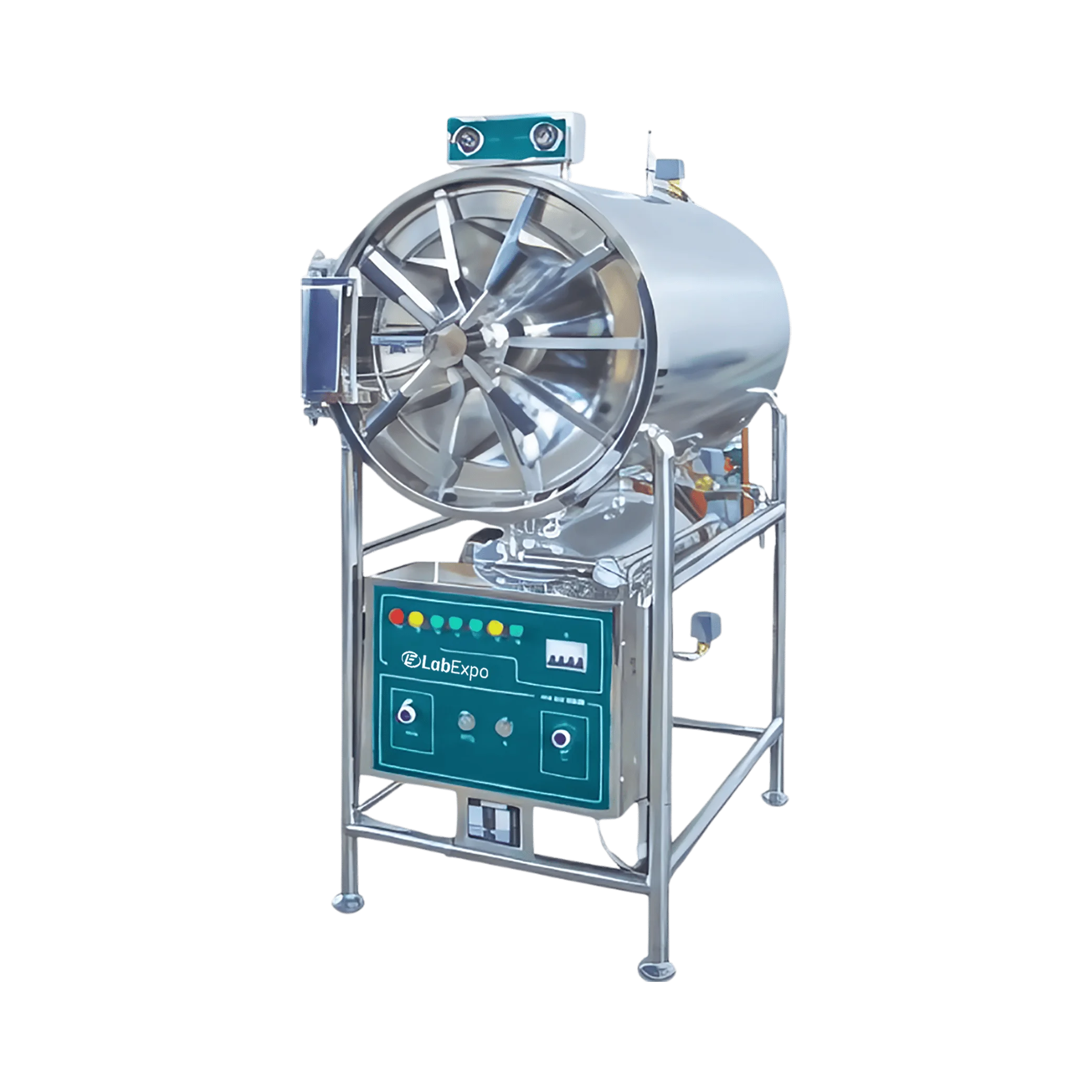

Horizontal Laboratory autoclave is a cylindrical oriented autoclave with a capacity of 150 Liters. Fully automatic computer controlled system with a sterilizing temperature of 134 °C and heat resistant silicon rubber to prevent steam leakage. Automatic open of jacket and chamber valve incase the door is opened during the operation to prevent damage to the unit. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure.
Specifications
| Capacity | 150 L |
| Sterilization Temperature | 134 °C |
| Sterilization Pressure | 0.22 Mpa |
| Timer Range | 0 - 60 minutes |
| Heat Average | ≤ ± 2 ℃ |
| Chamber Dimensions ( Φ × D ) | 440 × 1000 mm |
| Product Dimension ( L × W × H ) | 1400×600×1300mm |
| Net Weight | 240 kg |
| Gross Weight | 320 kg |
| Power Supply | 9 kW / 380 V 50 Hz |
Features
Applications
Function Implementation Media Sterilization Culture media preparation for aseptic laboratory procedures Instrument Sterilization Surgical and laboratory instruments compatible with high heat and pressure Medical Material Processing Dressings and intravenous equipment Component Sterilization Rubber closures and glass equipment parts used in aseptic techniques
Lab Expo Horizontal Autoclaves are applied in high-capacity sterilization workflows where large instrument loads require uniform steam distribution and controlled cycle execution. Each horizontal steam sterilizer operates using pressurized steam and is constructed from stainless steel to support continuous operation and corrosion resistance. Digital control systems regulate temperature, pressure, and cycle parameters, while integrated safety mechanisms support automated operation and controlled processing of large-volume loads.
