Horizontal Electrophoresis System LE-HES101
Product1
Product2
Product3
Product4

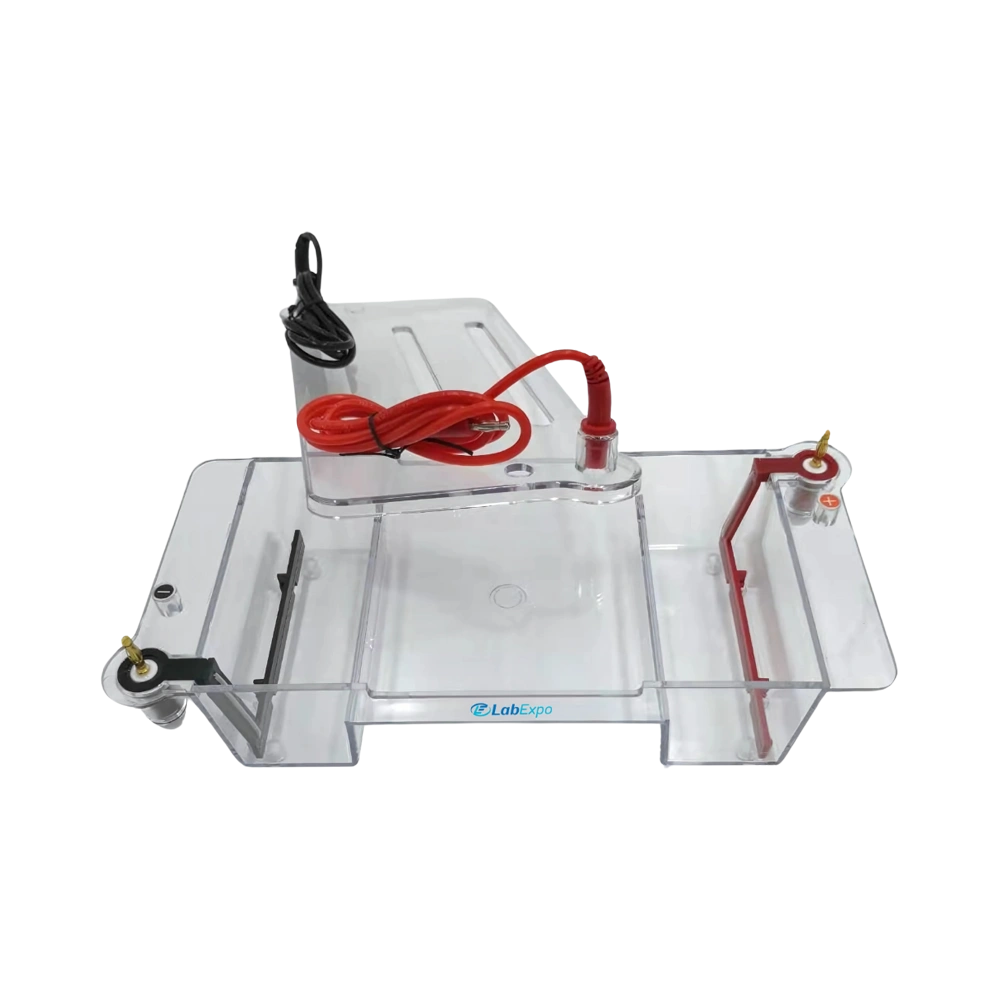

Horizontal Electrophoresis System LE-HES101

Horizontal Electrophoresis System LE-HES101 is equipped with a micro-computer processor for intelligent control for real-time parameter adjustments. Integrated LCD display provides clear readouts of voltage, current, and timing for accurate monitoring. Incorporated safety features and user-friendly interface make it suitable for educational settings. Built-in memory function, store the operation parameters. Our Horizontal Electrophoresis System is designed to identify, separate, prepare DNA, and measure its molecular weight.

Specifications

Number of Samples

2 to 100
Buffer Volume

650 ml
Comb Thickness

1.0mm, 1.5mm and 2.0mm
Comb

2+3 Wells (2.0mm)

6+13 Wells, 8+18 Wells

11+25 Wells
Gel Size

60 × 60mm

60 × 120mm

120 × 60mm

120 × 120mm
Dimension

310 × 150 × 120mm
Packing Dimension

360 × 200 × 200mm
Net Weight

1 Kg
Gross Weight

2 Kg

Features

  • Supports 2 to 100 samples for flexible DNA analysis
  • Multiple gel sizes up to 120 × 120 mm for varied applications
  • Comb thickness options 1.0 mm, 1.5 mm, 2.0 mm
  • Integrated microprocessor control with parameter memory
  • Transparent buffer tank with removable electrodes

Applications

FunctionImplementation
DNA separationGel electrophoresis for nucleic acid analysis
Molecular weight analysisBand migration determines fragment size
Sample preparationGel-based purification workflows
Genetic researchMulti-sample processing for experiments
Teaching laboratoriesVisual gel system for student training

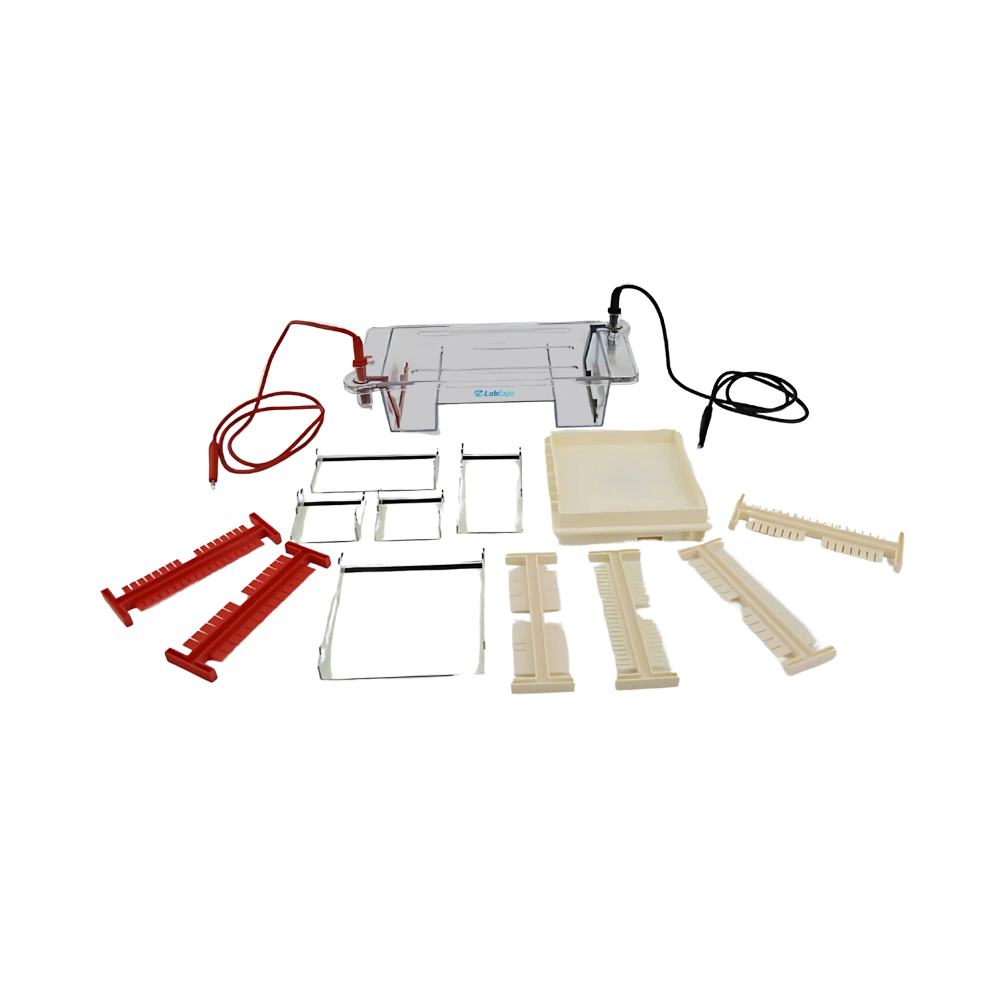

Standard Accessories

  • Main Tank Body and Buffer Tank - 1 Unit
  • Lid - 1 Piece
  • 25 and (11+11) Teeth Comb (1.0 mm) - 1 Piece
  • 13 and (6+6) Teeth Comb (1.5 mm) - 1 Piece
  • 18 and (8+8) Teeth Comb (1.5 mm) - 1 Piece
  • (3+2) and (3+3) Teeth Comb (2.0 mm) - 1 Piece
  • 18 and (8+8) Teeth Comb (1.0 mm) - 1 Piece
  • 13 and (6+6) Teeth Comb (1.0 mm) - 1 Piece
  • Gel Casting Device - 1 Piece
  • Gel Tray (60 × 60 mm) - 2 Pieces
  • Gel Tray (60 × 120 mm) - 1 Piece
  • Gel Tray (120 × 60 mm) - 1 Piece
  • Gel Tray (120 × 120 mm) - 1 Piece

Optional Accessories

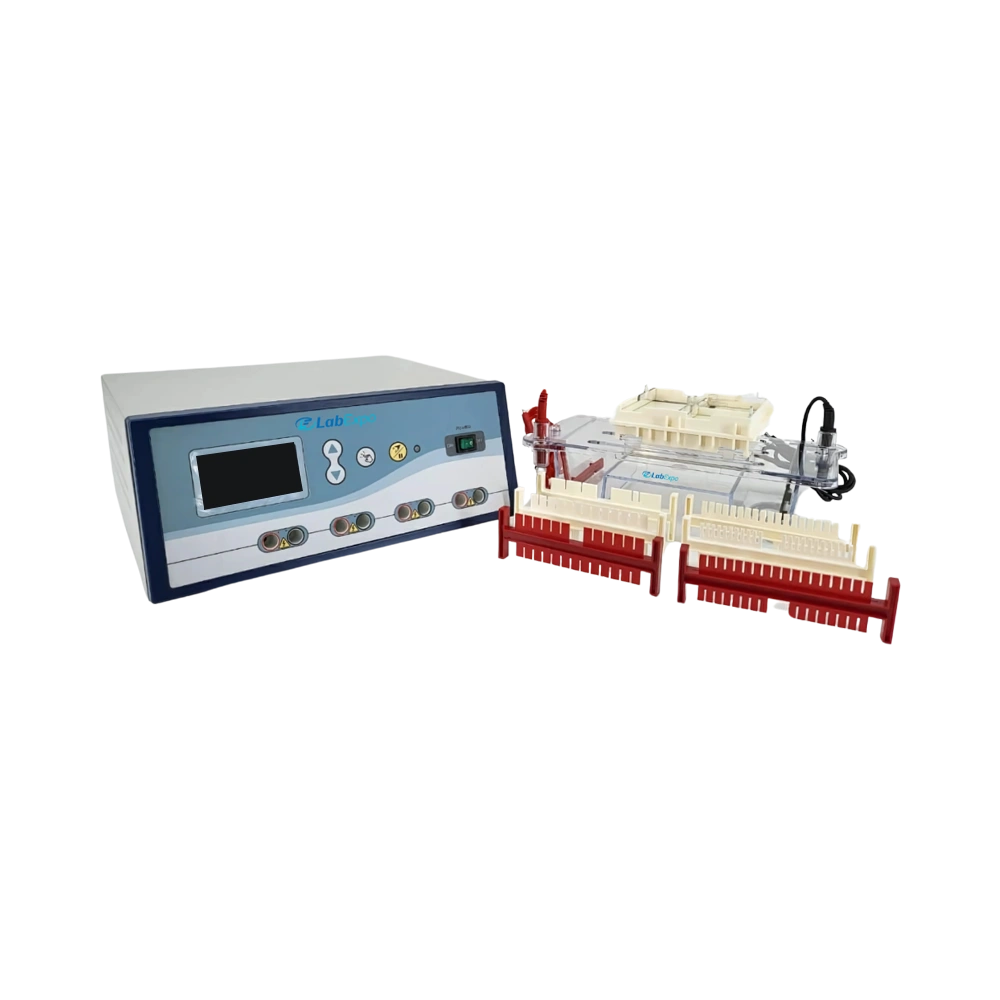

  • Power Supply Unit

Catalog

Horizontal Electrophoresis System LE-HES101 Catalog

Horizontal Electrophoresis System LE-HES101

Horizontal Electrophoresis System LE-HES101

Horizontal Electrophoresis System

Lab Expo Horizontal Electrophoresis Systems are developed for precise and stable horizontal gel electrophoresis across routine and advanced workflows. Intelligent control maintains consistent voltage and current, while digital displays support clear run monitoring. Robust build and intuitive interfaces ensure controlled operation, delivering accurate nucleic acid and protein separation for molecular biology, research, and diagnostic applications.
