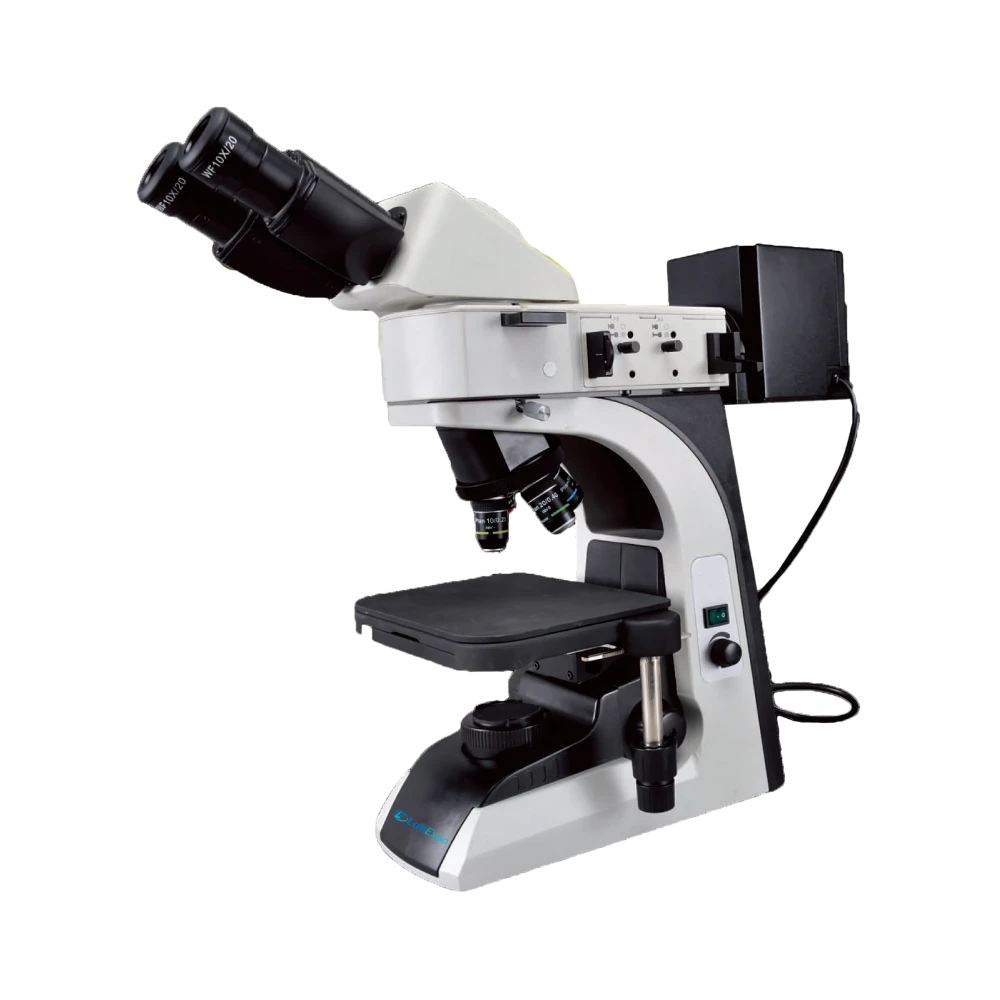

Metallurgical Microscope LE-MM405

Metallurgical Microscope LE-MM405

Metallurgical Microscope LE-MM405 is designed to support reliable and accurate metallographic observation. It includes a powerful transmitted and reflected illumination system with kohler lighting. Equipped with bright field, dark field, and polarization observation modes for detailed imaging. Integrated structure supports stable performance in laboratory and industrial environments. Our Metallurgical Microscope is suitable for applications in industrial inspections, scientific research, and material analysis.

Specifications

Optical System

Infinite Optical System
Extra Wide Field Eyepiece

WF10X/20

WF10X/20 Eyepiece with Scale of Cross Hair
Infinite Plan Achromatic Objective

4X/0.10/∞/- LWD 20.7mm

10X/0.25/∞/- LWD 7mm

20X/0.4/∞/0 LWD 5mm

50X/0.75/∞/0 LWD 1.3mm
Viewing Head

Hinged Type Binocular Viewing Head, Inclined at 30°, Interpupillary 48 to 75mm
Kohler Incident Light

12V/50W Halogen Light, Center and Brightness Adjustable

Polarizer and Analyzer

Green, Gray Filter and Ground Glass
Focusing

Coaxial Coarse and Fine Adjustment, Fine Division 2μm, Moving Range30mm
Nosepiece

Backward Quadruple Nosepiece
Stage

Triplex Layer Mechanical Stage 230 × 150mm, Moving Range 78mm × 54mm

Features

  • Infinite optical system
  • Hinged type binocular viewing head
  • Backward quadruple nosepiece
  • Triplex layer mechanical stage
  • Coaxial coarse focusing

Applications

Metallurgical Microscope LE-MM405 is suitable for applications in industrial inspections, scientific research, and material analysis.

Standard Accessories

  • Micrometer scale 0.01mm

Catalog

Metallurgical Microscope LE-MM405 Catalog

Related Models Of Metallurgical Microscope

Lab Expo metallurgical microscopes are intended to inspect, identify, and study metal and alloy structures. They have trinocular heads for easy vision. They have high-point, wide-field eyepieces for thorough observation. They offer improved coaxial coarse and fine focusing adjustments with vertical objective movement. They provide strong and clean illumination using halogen bulbs. They include quintuple nosepieces and infinity plan achromatic targets. Our metallurgical microscopes provide precise and dependable investigation of metallographic materials.
