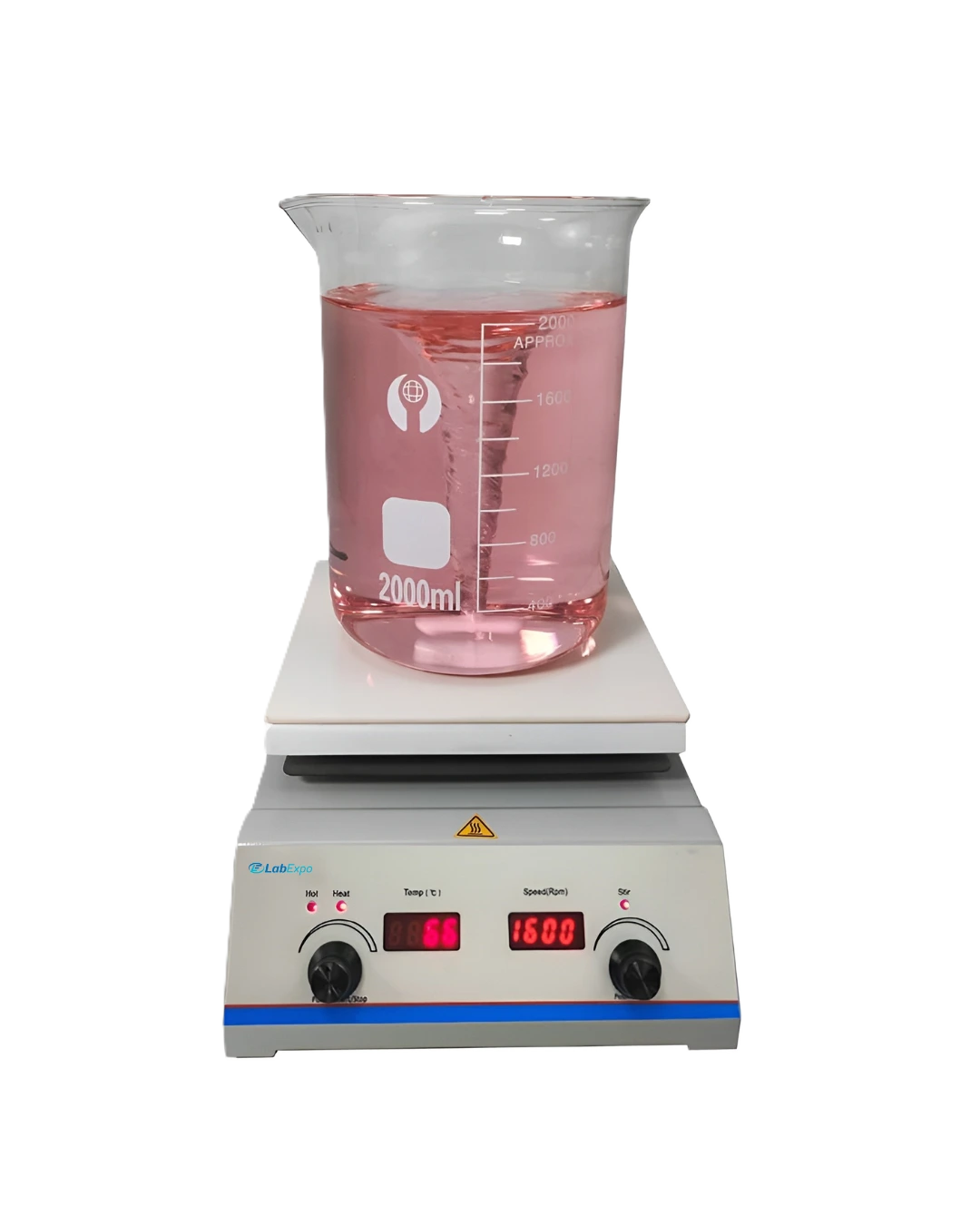

Hot Plate Magnetic Stirrer LE-HPS104 comes with a large 178 × 178 mm ceramic plate for uniform temperature distribution. It offers an adjustable stirring speed from 150 to 1600 rpm for both gentle and vigorous mixing. Built to withstand standard lab conditions with IP21 protection standards. Designed with analog dials to allow straightforward adjustment of parameters. Our Hot Plate Stirrer combines powerful performance, precise control, and reliable safety features.
Specifications
| Plate Diameter | 178 × 178 mm |
| Temperature Setting Range | 35 to 500 °C |
| Heating Range (Plate) | 35 to 500 °C |
| Heating Range (Solution) | 35 to 200 °C |
| Temperature Stability | ±0.5 °C |
| Plate Material | Ceramic |
| Plate Heating Resolution | 1 °C |
| Solution Heating Resolution | 0.1 °C |
| Hot Warning | Yes |
| Number of Stirring Positions | 1 |
| Stirring Capacity | Up to 10 L |
| Speed Range | 150 to 1600 rpm |
| Stir Bar Length Range | 25 to 60 mm |
| Overheat Alarm | Yes |
| Operation Ambient Temp. | 5 to 40 °C |
| Relative Humidity (Max) | 80% |
| Protection Class | IP21 |
| Frequency | 50 / 60 Hz |
| Power Consumption | 900 W |
| Power Supply | 110 to 130 V / 200 to 240 V |
| Dimensions | 192 × 293 × 100 mm |
| Weight | 3.5 kg |
Features
Applications
Hot Plate Magnetic Stirrer LE-HPS104 is commonly used in chemical, biological, pharmaceutical, and academic laboratories, where it supports applications such as solution preparation, sample digestion, reagent mixing, and controlled heating processes.
Optional Accessories
PT1000 External Temperature Sensor
Lab Expo offers Hot Plate Magnetic Stirrer combines efficient heating and powerful stirring in a single compact unit. Their variable speed range allows users to adjust stirring from gentle agitation to vigorous mixing. They are compatible with a wide range of stir bar sizes. Their IP21 protection rating ensures safe operation under standard laboratory conditions. Our Magnetic Stirrer provides excellent durability, chemical resistance, and efficient heat transfer.
