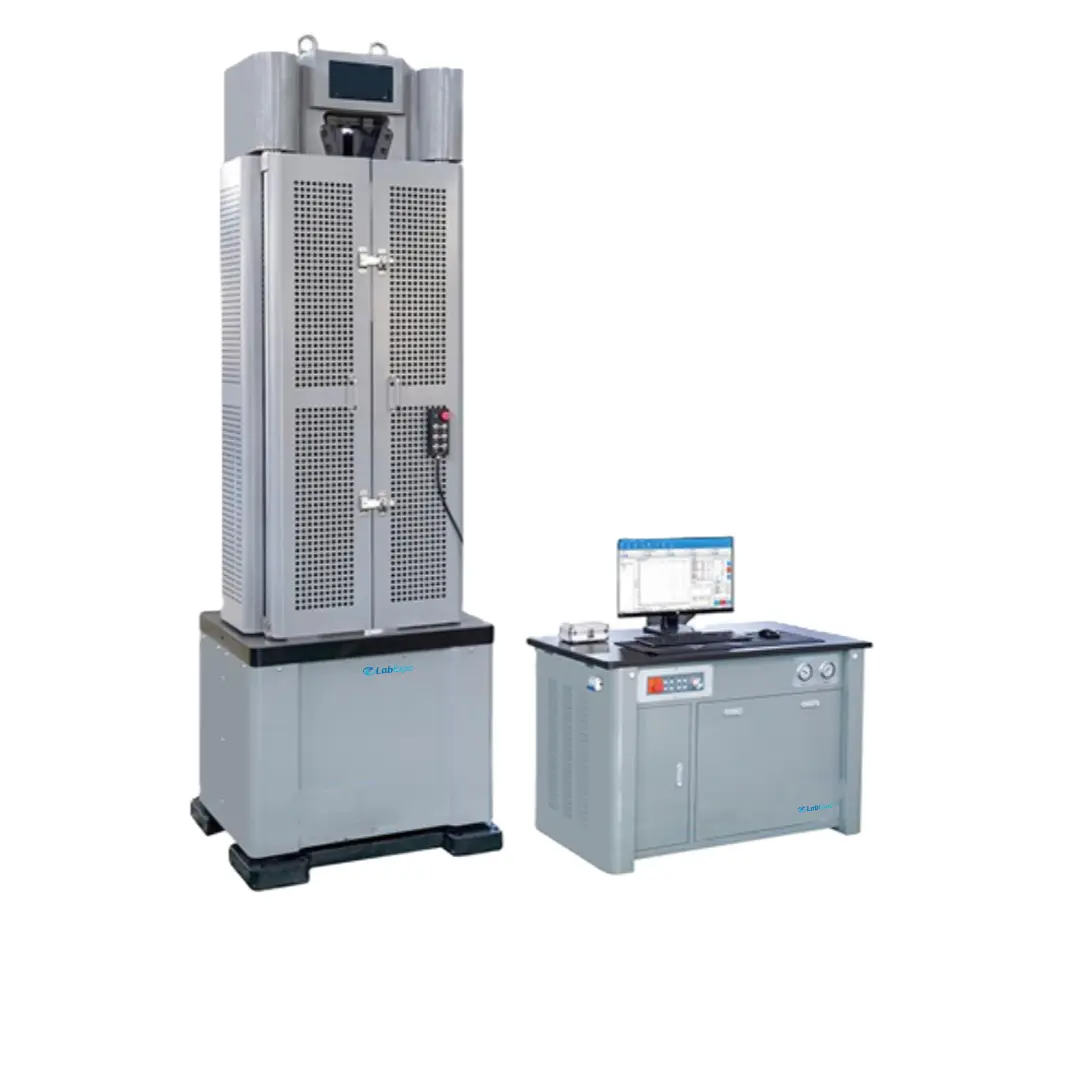

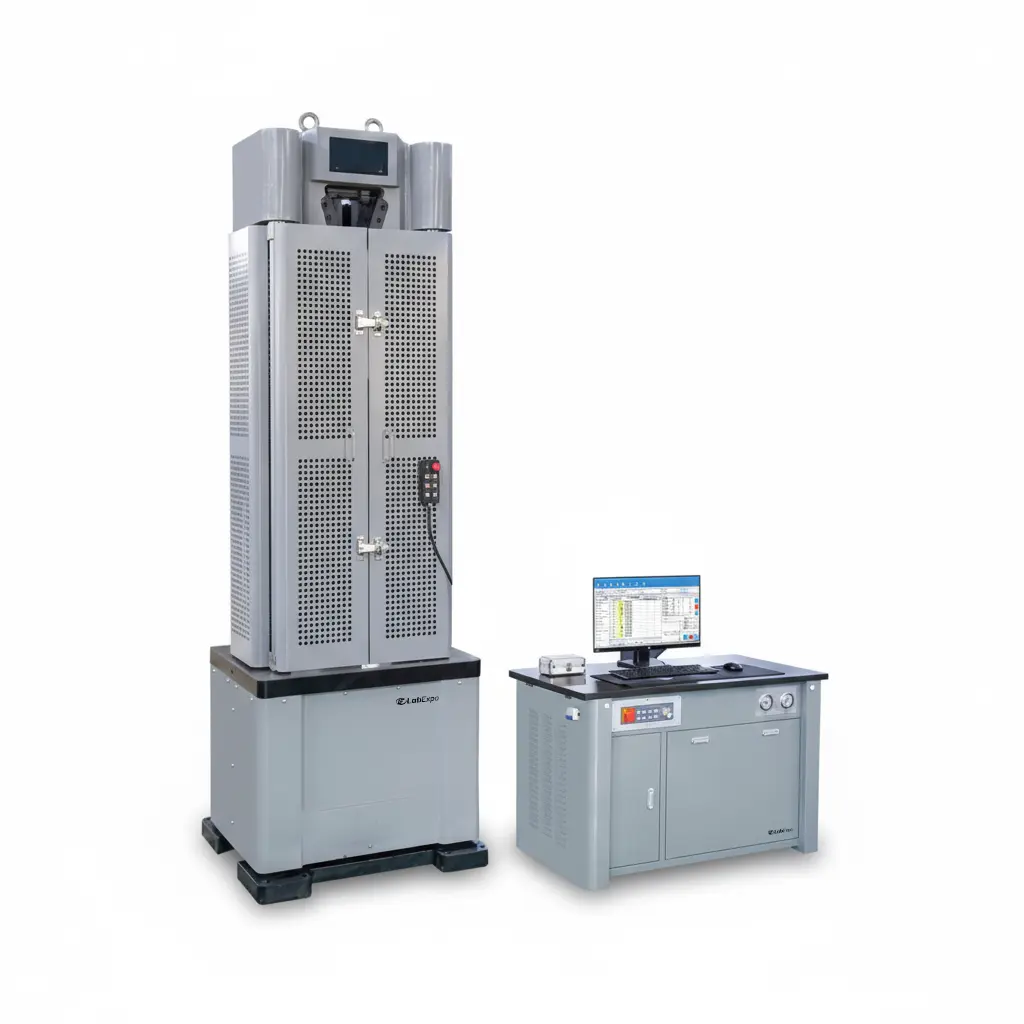

Hydraulic Universal Testing Machine LE-HUT102 is designed with a 600 kN maximum load, providing consistent performance for material tests. It features a load resolution of 1/500,000 of full scale, delivering highly accurate measurements for mechanical testing. Built-in tensile and compression spaces, along with column spacing, allow flexibility for strength and durability tests. Our Hydraulic Universal Testing Machine is suitable for metal tension, concrete compression, and structural assessments.
Specifications
| Number of Columns | 6 (4 columns and 2 screws) |
| Load Capacity | 600 kN / 60000 kgf |
| Calibration Standard | ISO7500 |
| Calibration Class | Class 0.5 |
| Testing Load Accuracy | ±0.5% |
| Load Measuring Range | 1% to 100% FS |
| Load Resolution | 1/500,000 of FS |
| Displacement Measurement Resolution | 0.0025 mm |
| Displacement Measurement Accuracy | ≤±0.5% of Indicating Value |
| Deformation Measuring Range | 1% to 100% FS |
| Deformation Resolution | 1/±500000 FS of the Max Deformation |
| Deformation Accuracy | ≤±0.5% of Indicating Value |
| Overload Protection | ≥5% of Full Range |
| Max. Tensile Testing Space | 800 mm |
| Max. Compression Testing Space | 650 mm |
| Column Centre Space | 500 mm |
| Column Diameter | Φ62 mm |
| Max. Piston Stroke | 250 mm |
| Piston Diameter | Φ180 mm |
| Cross Beam Adjustment Max Speed | About 220 mm/min |
| Cross Beam Motor Power | 0.4 KW |
| Operating Temperature | 0 to +38° C (+32 to +100° F |
| Humidity Range | 10% to 90% non-condensing |
| Max. Pressure | 25 MPa |
| Max. Oil Pump Flow | 4 L/min |
| Main Oil Pump Motor Power | 2.2 KW |
| Oil Tank Capacity | 60 L |
| Clamping Mode | Built-in Wedge Type Hydraulic Automatic Clamping |
| Jaws Overall Dimensions | 90 × 90 mm |
| Round Specimen Clamping Range | Φ10 to Φ26 mm Φ26 to Φ45 mm |
| Flat Specimen Clamping Thickness | 0 to 30 mm |
| Compression Plate Dimensions | Φ160 mm |
| Power Consumption | 2.75 kW |
| Power Supply | 3 phase, AC 380 V±10%, 50 Hz |
| Load Frame Dimension | 760 × 690 × 2060 mm |
| Oil Power Dimension | 1000 × 600 × 780 mm |
| Weight | 1839 kg |
Features
Applications
Full digital controlData processing supportsMulti controlling channelsTest standardMulti measurement units
Standard Accessories
Hydraulic Servo Oil Power
Hydraulic Wedge Auto Action Tensile Grip
Round Jaws
Flat Jaws
Compression Test Fixture
Spoke Load Cell
Displacement Sensor
Electronic Extensometer
Hydraulic Servo Valve
SUN Plug Valve
High-pressure Oil Pump
Motor
Monitoring System
Servo Controller
Test Software and Backup U disk
Hand Control Box
Pressure Monitor Meter
Computer
Printer
Foundation Bolt
Protective Cover
Optional Accessories
3-pint Bending Fixture
Shearing Grip
Our Hydraulic Universal Testing Machine can handle a wide range of loads from light to heavy making it ideal for diverse material testing. They use a hydraulic system to apply precise and consistent loads, offering better accuracy and higher capacity. These have advanced digital controls and a load cell to ensure accurate monitoring of test forces, displacement, and stress-strain data in real time. They integrate automatic data acquisition which enhances efficiency and minimizes human error during testing. Our testing machine is made of durable materials like stainless steel or alloy, ensuring long-lasting performance even in tough conditions.
