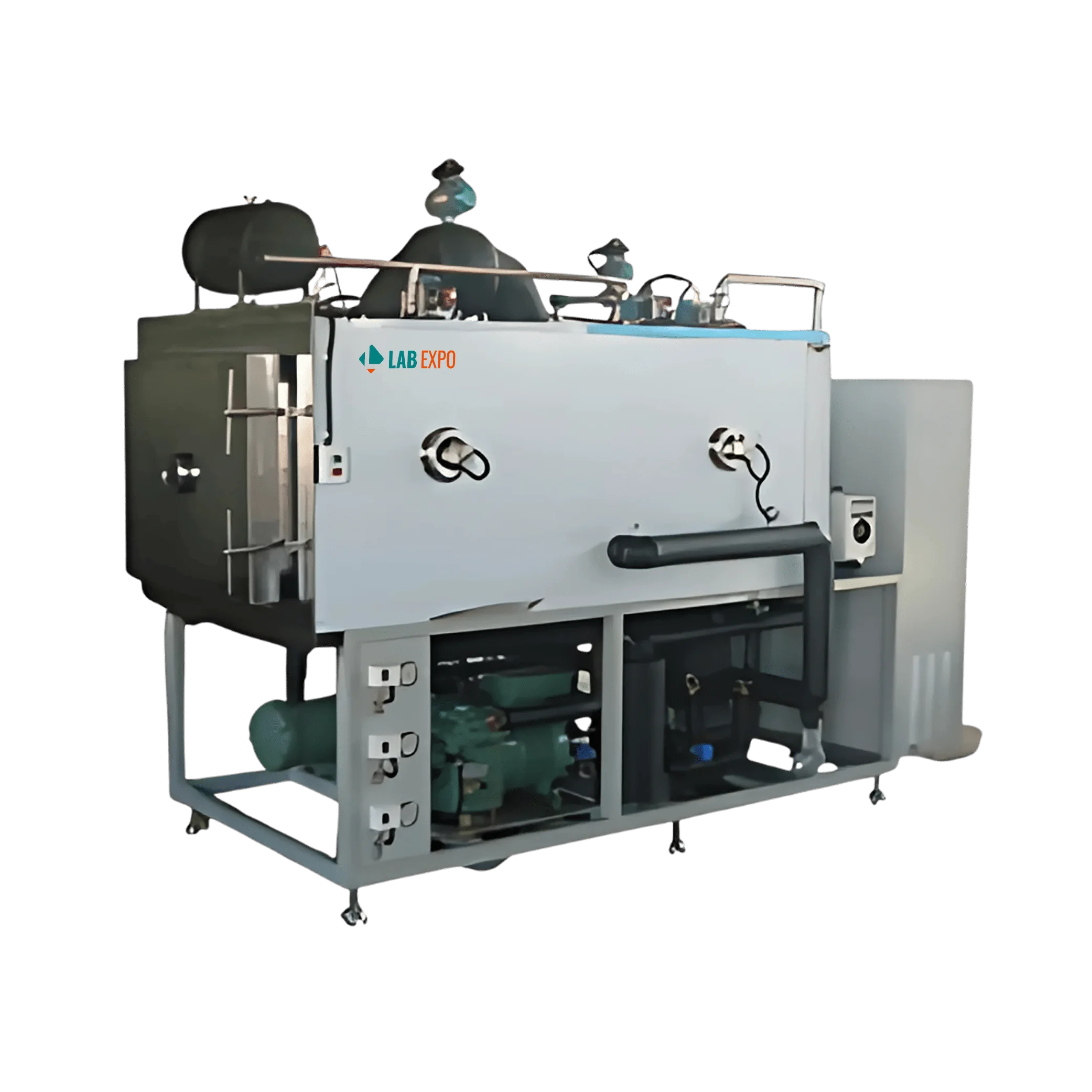

Large Scale Freeze Dryer is designed to handle lyophilization requirements for large scale production. Equipped with 60 kg condenser capacity and a temperature of -70 °C it increases the shelf life of the product without destroying the original structure. The temperature controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.
Specifications
| Condenser temperature | - 70 °C |
| Condenser capacity | 60 kg / 24 h |
| Freeze drying area | 4.4 m² |
| Bulk capacity | 60 L |
| Vial capacity Φ 12 mm | 28000 pieces |
| Vial capacity Φ 16 mm | 1500 pieces |
| Vial capacity Φ 22 mm | 8000 pieces |
| Shelves | 5 shelves |
| Shelves dimension | Φ 100 mm |
| Shelf temperature | -50 °C to 70 °C |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Power | 18 W |
| Dimensions | 3600 x 1300 x 2800 mm |
| Weight | 3500 kg |
Features
Applications
Function Implementation High-volume labs 60 kg/24h condenser capacity enables large-scale lyophilization Biological storage -70 °C condenser temperature preserves sensitive materials Industrial freeze drying 4.4 m² freeze drying area supports high-throughput production Pharmaceutical production 60 L bulk capacity facilitates large-scale product handling Research facilities -50 °C to 70 °C shelf temperature range allows for precise control
Lab Expo Large Scale Freeze Dryers support industrial lyophilization where high-capacity processing, shelf temperature control, and stable vacuum regulation are required for consistent product preservation. The system operates with temperature-controlled shelves and precision vacuum management to maintain controlled sublimation conditions. Digital monitoring manages temperature and pressure, while integrated alarms, nitrogen valves, and oil-return filtration ensure controlled operation and repeatable drying performance across extended production cycles.
