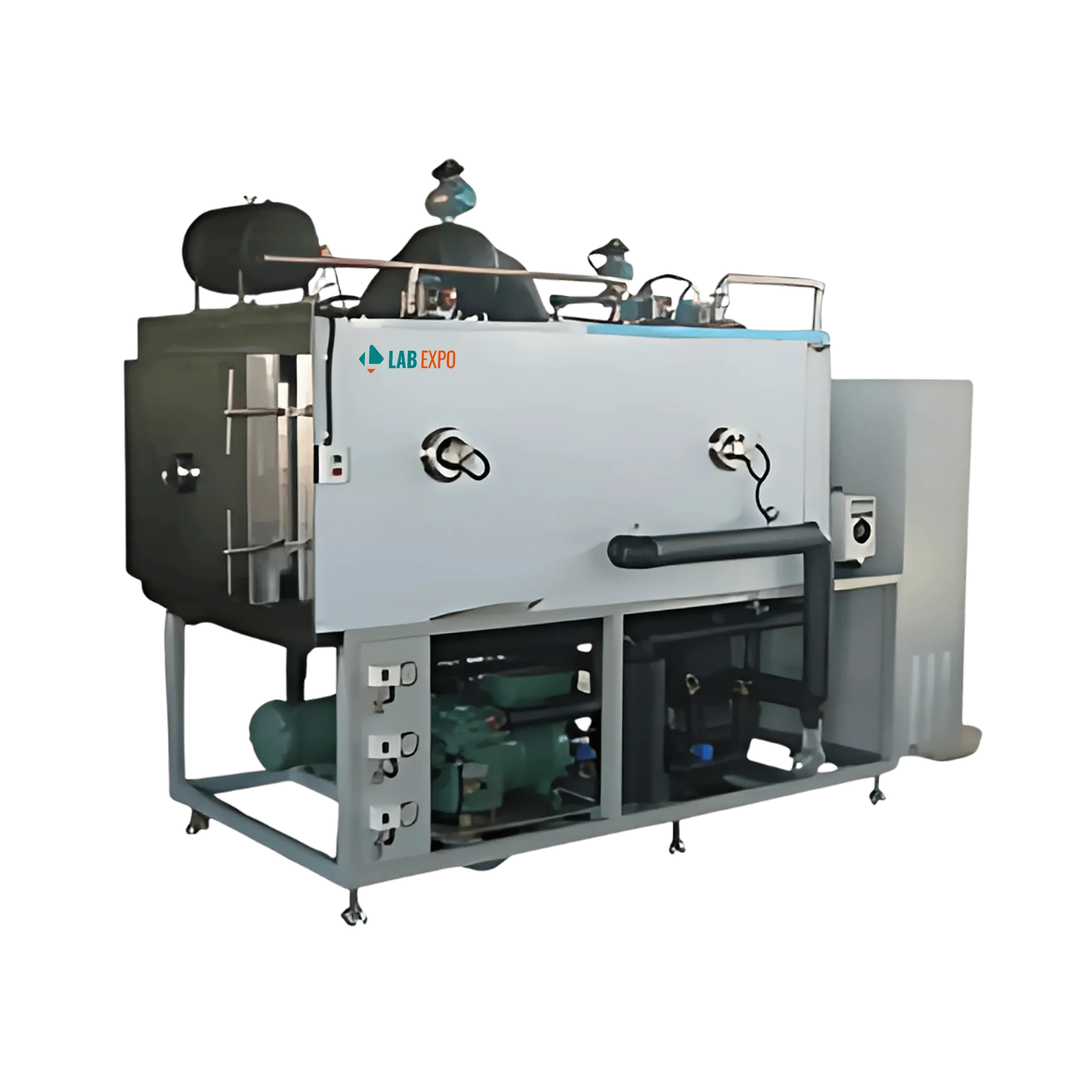

Large Scale Freeze Dryer is designed to handle lyophilization requirements for large scale production. Equipped with 80 kg condenser capacity and a temperature of -70 °C it increases the shelf life of the product without destroying the original structure. The temperature controllable shelves are designed for complete moisture removal and storage facilities of various biological materials. Precise vacuum control enables faster freeze drying and reproducible results.
Specifications
| Condenser temperature | - 70 °C |
| Condenser capacity | 80 kg / 24 h |
| Freeze drying area | 5.5 m² |
| Bulk capacity | 80 L |
| Vial capacity Φ 12 mm | 35000 pieces |
| Vial capacity Φ 16 mm | 24800 pieces |
| Vial capacity Φ 22 mm | 12700 pieces |
| Shelves | 6 shelves |
| Shelves dimension | Φ 100 mm |
| Shelf temperature | -50 °C to 70 °C |
| Final Vacuum | < 10 Pa |
| Voltage | 220 V / 50 Hz |
| Power | 18 W |
| Dimensions | 3800 x 1500 x 2900 mm |
| Weight | 4200 kg |
Features
Applications
Function Implementation High-volume labs 35000 vial capacity supports large-scale lyophilization Industrial freeze drying 80 kg condenser capacity enables 24-hour operation Research facilities -50 °C to 70 °C shelf temperature controls drying stages Pharmaceutical production 5.5 m² freeze drying area accelerates batch processing Clinical sample storage -70 °C condenser temperature preserves biological materials
Lab Expo Large Scale Freeze Dryers support industrial lyophilization where high-capacity processing, shelf temperature control, and stable vacuum regulation are required for consistent product preservation. The system operates with temperature-controlled shelves and precision vacuum management to maintain controlled sublimation conditions. Digital monitoring manages temperature and pressure, while integrated alarms, nitrogen valves, and oil-return filtration ensure controlled operation and repeatable drying performance across extended production cycles.
