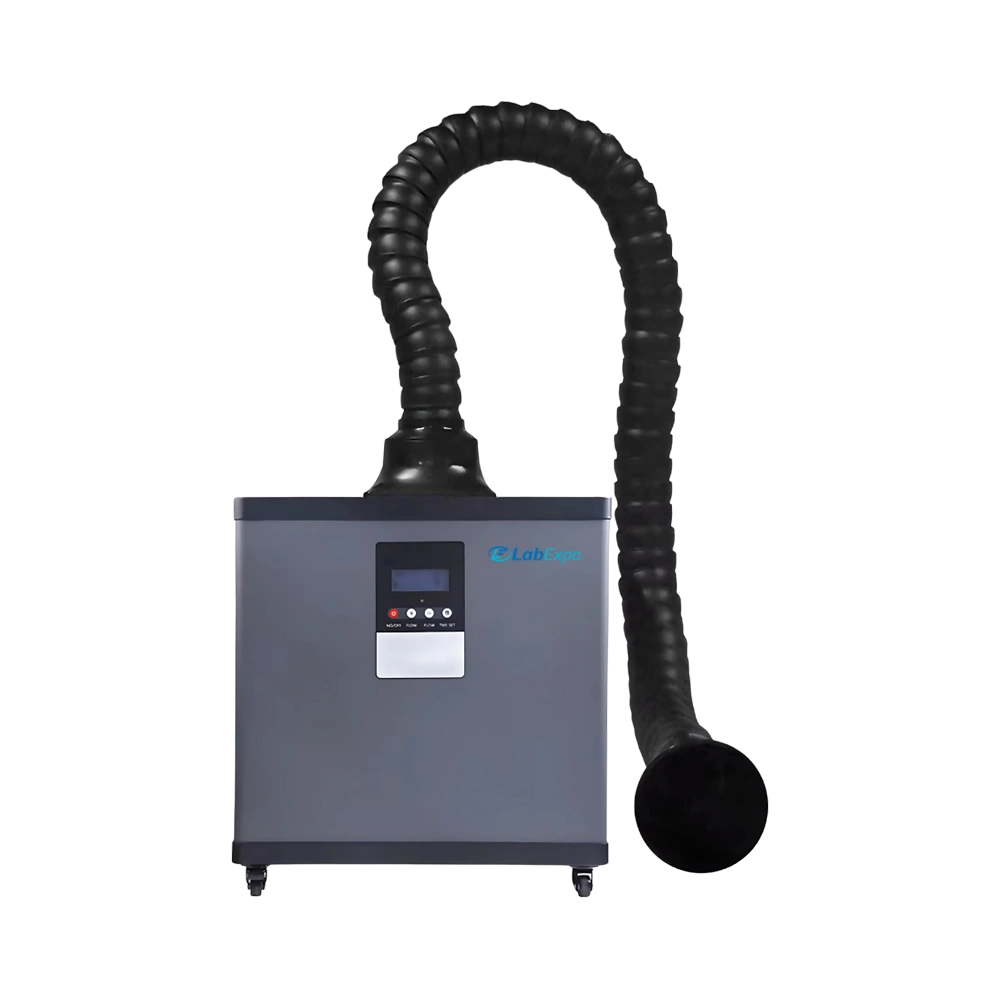

Laser Fume Extractor LE-LFE202 is a compact air purifying system with 99.97% at 0.3µm filter efficiency for the removal of smoke. It offers a DC brushless motor with high-speed operation with low noise levels. Equipped with a HEPA filter that effectively captures harmful particles generated during laser cutting and soldering. Integrated with adjustable airflow for flexible support across varied applications. Our Fume Extractor is ideal for ovens, soldering stations, and small laser marking setups, providing a clean and safe workspace.
Specifications
| Filtering Efficiency | 99.99% efficiency at 0.3 µm |
| Noise | Less than 60 dB |
| Cover type | Round silicone cover |
| Color | Black |
| Air Volume | 310 m³/h |
| Port | ∅75 mm × 1.3 m |
| Power Supply | 220 V 50 Hz |
| Power Consumption | 210 W |
| Dimension | 420 × 240 × 450 mm |
| Weight | 16 Kg |
Features
Applications
Function Implementation Laser cutting labs 310 m³/h air volume supports continuous fume removal Soldering stations 99.99% efficiency at 0.3 µm filtering captures harmful particles Small laser marking 210 W power consumption enables efficient operation Industrial laser engraving Less than 60 dB noise level minimizes disturbance Research facilities 220 V 50 Hz power supply supports stable performance
Optional Accessories
Primary filter
Middle filter
Main filter
1: What is the LE-LFE202 Laser Fume Extractor used for?
The LE-LFE202 is designed to efficiently extract and filter hazardous fumes, smoke, and airborne particles generated during laser cutting, engraving, and marking applications.
2: Is it compatible with all types of laser machines?
Yes, the LE-LFE202 is compatible with most CO?, fiber, and UV laser machines, by checking the airflow and port size for proper connection.
3: Can it handle continuous operation in industrial settings?
Yes, the unit is designed for robust, continuous use in production environments with consistent fume output.
4: Is it a low-noise machine?
Yes, the LE-LFE202 is designed with low noise levels, making it suitable for indoor use in labs, workshops, and offices.
5: Does it meet industrial safety standards?
Absolutely. The LE-LFE202 adheres to industry-standard regulations for air quality, safety, and emission control.
Lab Expo Laser Fume Extractor supports controlled emission capture where smoke, particulates, and gaseous byproducts must be removed during laser processing operations. This laser cutter fume extractor operates with high-suction airflow and multi-stage filtration, combining particulate capture and activated carbon adsorption to treat process fumes. Digitally managed airflow and quiet fan operation ensure stable extraction, while compact build enables flexible integration and consistent air purification for continuous cutting and engraving workflows.
