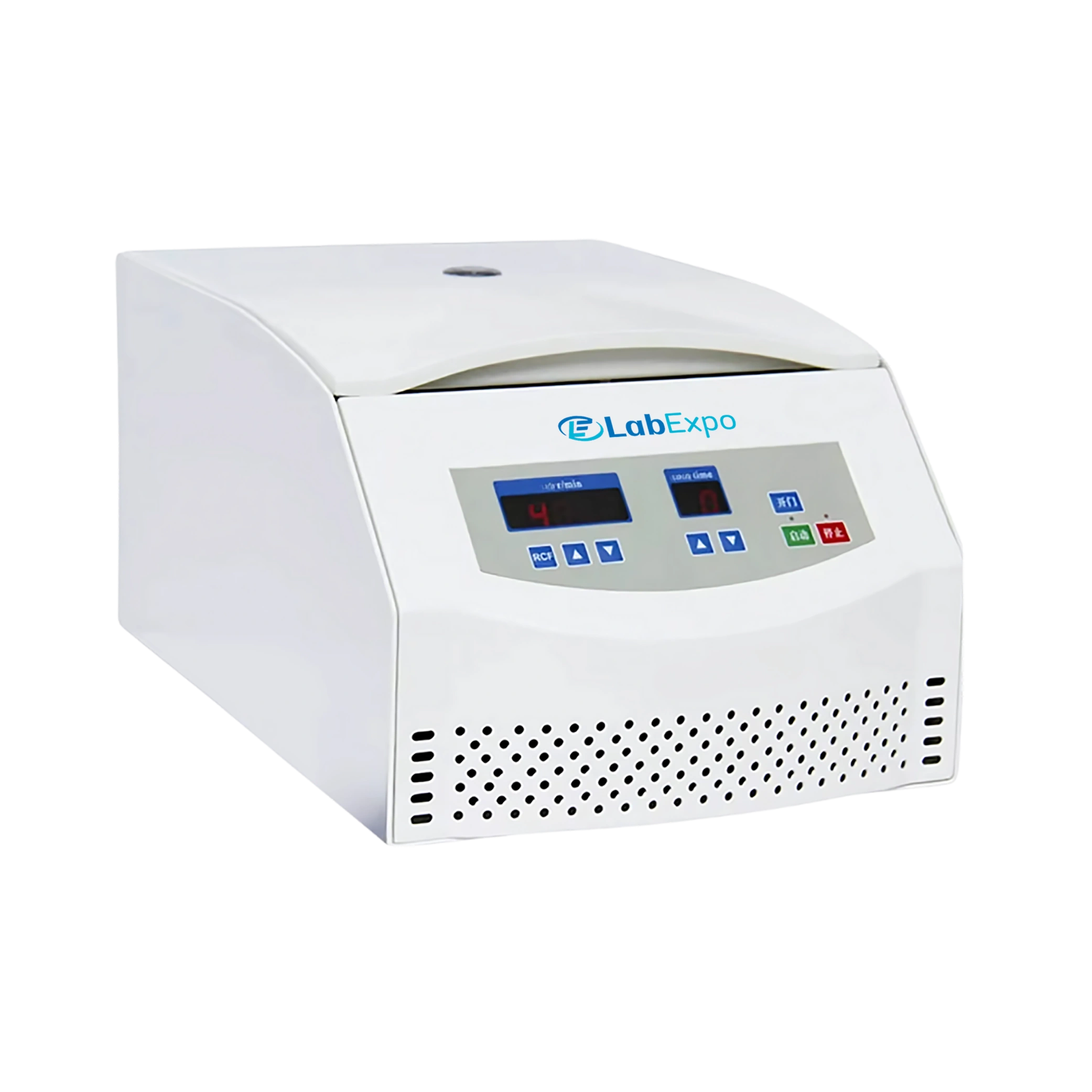

Low speed table-top centrifuge comes with large capacity for bulky samples. It runs on low noise, brushless DC motor, consisting of automatic rotor identification and is a must-have in the biological product, pharmaceutical industries. It has wide range of rotors which ensure easy and safe loading of the sample.
Specifications
| Max. speed | 5000rpm |
| Max. RCF | 4730×g |
| Max. Capacity | 4×800ml |
| Timer range | 0~99min |
| Speed accuracy | ±50r/min |
| Noise | ≤58dBA |
| Weight | 67kg |
| power supply | AC110/220V, 50-60Hz,10A |
| Dimension (HxWxD) | 685×500×405mm |
Features
Applications
Function Implementation Blood bank processing Separation of whole blood into plasma, serum, and cellular components Pharmaceutical production Clarification of bulk solutions during formulation and quality control Bioprocess workflows Harvesting cells and precipitates from large-volume cultures Industrial sample preparation Sedimentation of suspended particles in manufacturing analysis Research laboratory use Processing high-volume biological samples for downstream assays
Rotor Selection
| Rotor Name | Max. Speed (rpm) | Max. Capacity (ml) | Max. RCF (x g) |
| Swing rotor 01 | 4000 | 4 x 800 (Round Cup) | 3450 |
| Swing rotor 02 | 4000 | 4 x 500 (Round Cup) | 3380 |
| Swing rotor 03 | 4000 | 4 x 500 (Square Cup) | 3310 |
| Microplate rotor 01 | 4000 | 4 x 4 x 96 well | 2840 |
| 2 x 4 x 96 well | 2490 | ||
| 2 x 3 x 48 well | 2300 | ||
| Swing rotor 04 | 4000 | 4 x 40 x 7 | 3270 |
| 4 x 40 x 5 | 2890 | ||
| 4 x 18 x 10 | 3140 | ||
| Angle rotor 01 | 5000 | 12 x 15 | 3080 |
| Angle rotor 02 | 5000 | 6 x 50 | 2850 |
| Angle rotor 03 | 5000 | 4 x 50 | 2520 |
| Angle rotor 04 | 5000 | 4 x 100 | 2630 |
| Angle rotor 05 | 5000 | 24 x 15 | 3500 |
| Angle rotor 06 | 5000 | 12 x 50 | 3860 |
| Angle rotor 07 | 5000 | 6 x 100 | 3130 |
| Angle rotor 08 | 4000 | 12 x 100 | 2970 |
Adapter
Adapter for 800ml and 500ml bucket:
| Volume | 5ml | 7ml | 10ml | 15ml | 50ml |
| 800ml （Round Cup） | 23pcs/cup | 23 | 19 | 14 | 5 |
| 500ml （Round Cup） | 18pcs/cup | 18 | 14 | 9 | 3 |
| 500ml （Square Cup） | 20pcs/cup | 20 | 16 | 12 | 5 |
Lab Expo Low Speed Centrifuge supports routine separation workflows where controlled RCF, quiet operation, and safe daily use are required for consistent sample preparation. The system operates with microprocessor-regulated speed and time control and a brushless DC motor to maintain smooth, stable rotation. Digital monitoring manages run parameters, while a stainless steel chamber, electronic lid lock with emergency release, and programmable run storage ensure controlled, repeatable centrifugation outcomes.
