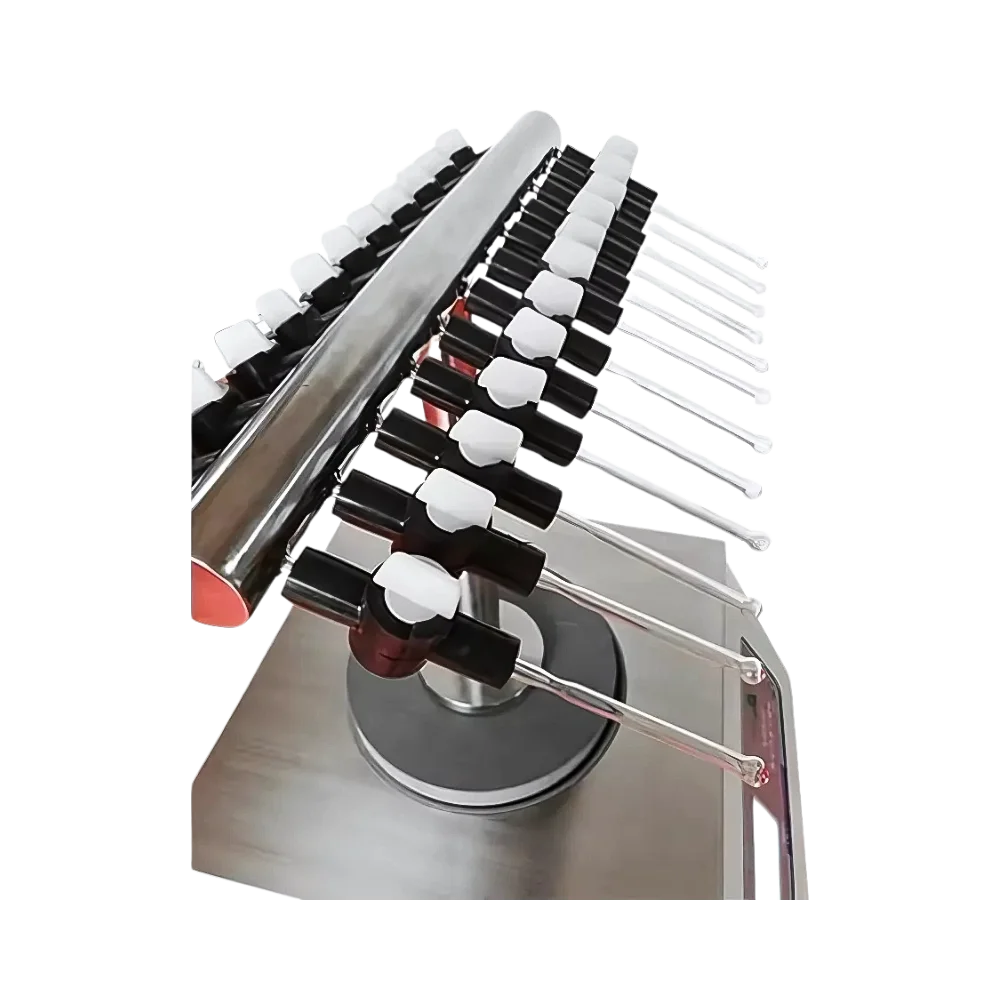

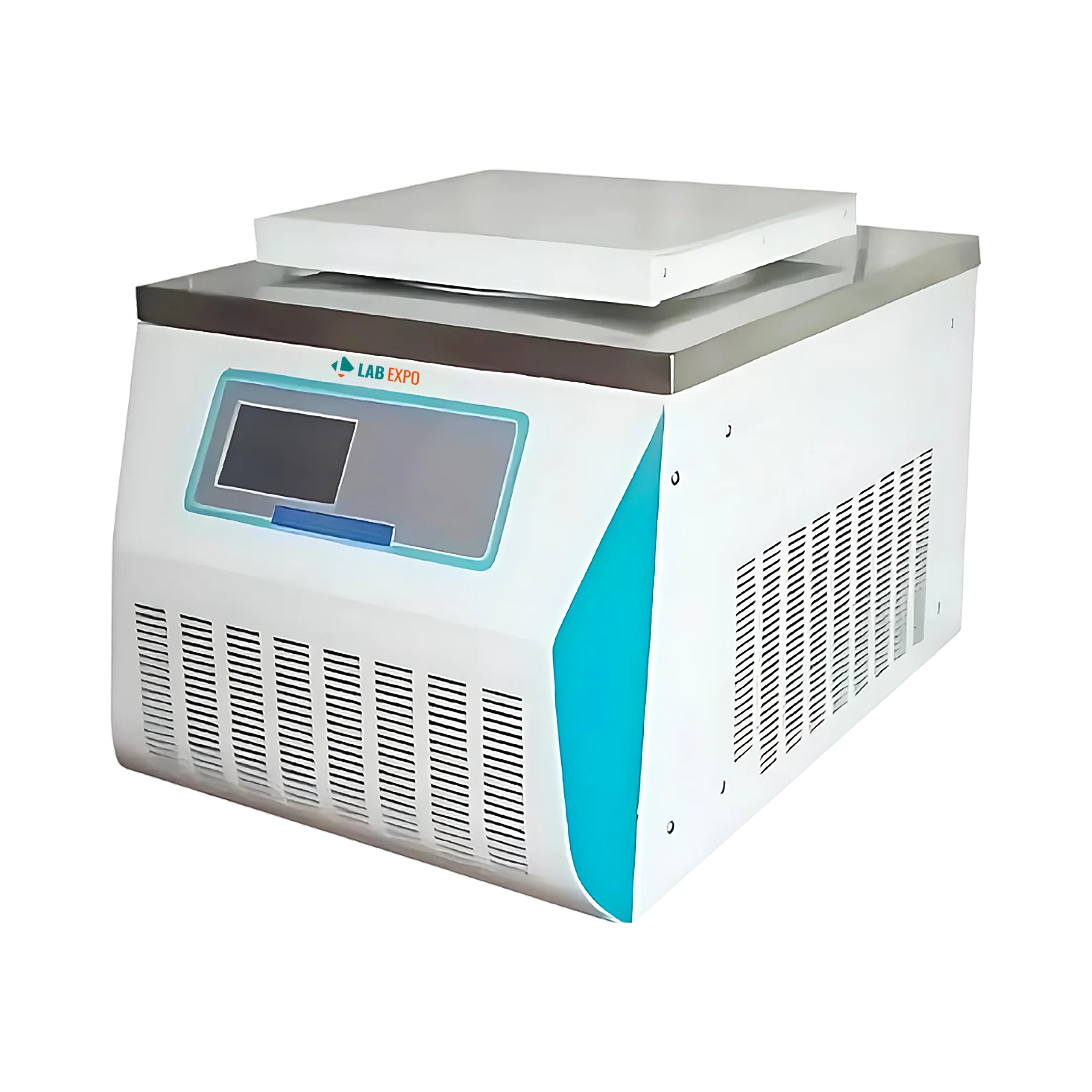

T-type Freeze Dryer is a compact table-top unit with 3 kg condenser capacity and condenser temperature options of either - 50 °C used for drying aqueous specimens . The T-type manifold accommodates 24 ampoules via the rubber adaptors. Built in oil mist filtration system and vacuum pump oil return device helps in maintenance of vacuum pressure and prevention of oil leakage.
Specifications
| Condenser temperature | - 50 °C |
| Condenser capacity | 3 kg / 24 h |
| Cold trap depth | 140 mm |
| Dimensions | 565 x 420 x ( 360 + 430 ) mm |
| Pumping rate | 2 L / second |
| T-frame size ( H x L ) | 430 x 480 mm |
| Display | LCD touch screen |
| Number of sealed valves | 24 pieces for 24 ampoules |
| Cold trap diameter | Φ 215 mm |
| Final Vacuum | < 5 Pa |
| Voltage | 220 V / 50 Hz |
| Weight | 70 kg |
Features
Applications
Function Implementation Low-temperature labs -50 °C condenser temperature enables drying of aqueous specimens High-capacity freeze drying 3 kg condenser capacity supports 24-hour operation Vacuum-intensive applications < 5 Pa final vacuum achieves precise dehydration control Small-scale research facilities 430 x 480 mm T-frame size accommodates limited bench space Rapid freeze drying cycles 2 L / second pumping rate facilitates efficient drying processes
Lab Expo Benchtop Freeze Dryers support efficient lyophilization where compact footprint, stable vacuum control, and precise low-temperature condensation are required for sensitive samples. The system operates with regulated refrigeration at defined condenser temperatures and controlled vacuum to maintain consistent sublimation conditions. Corrosion-resistant cold traps, transparent doors, and digital monitoring support controlled operation, while versatile manifold configurations enable repeatable, adaptable freeze-drying performance for routine laboratory workflows.
