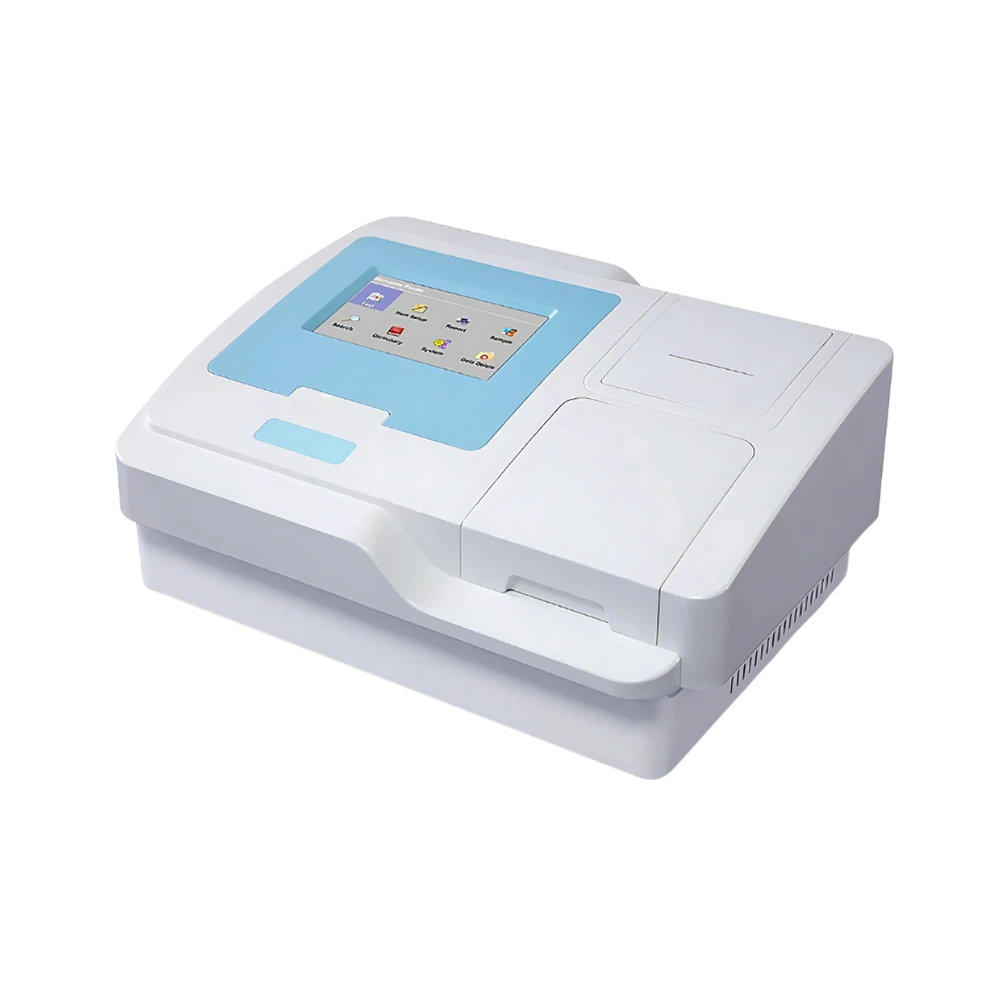

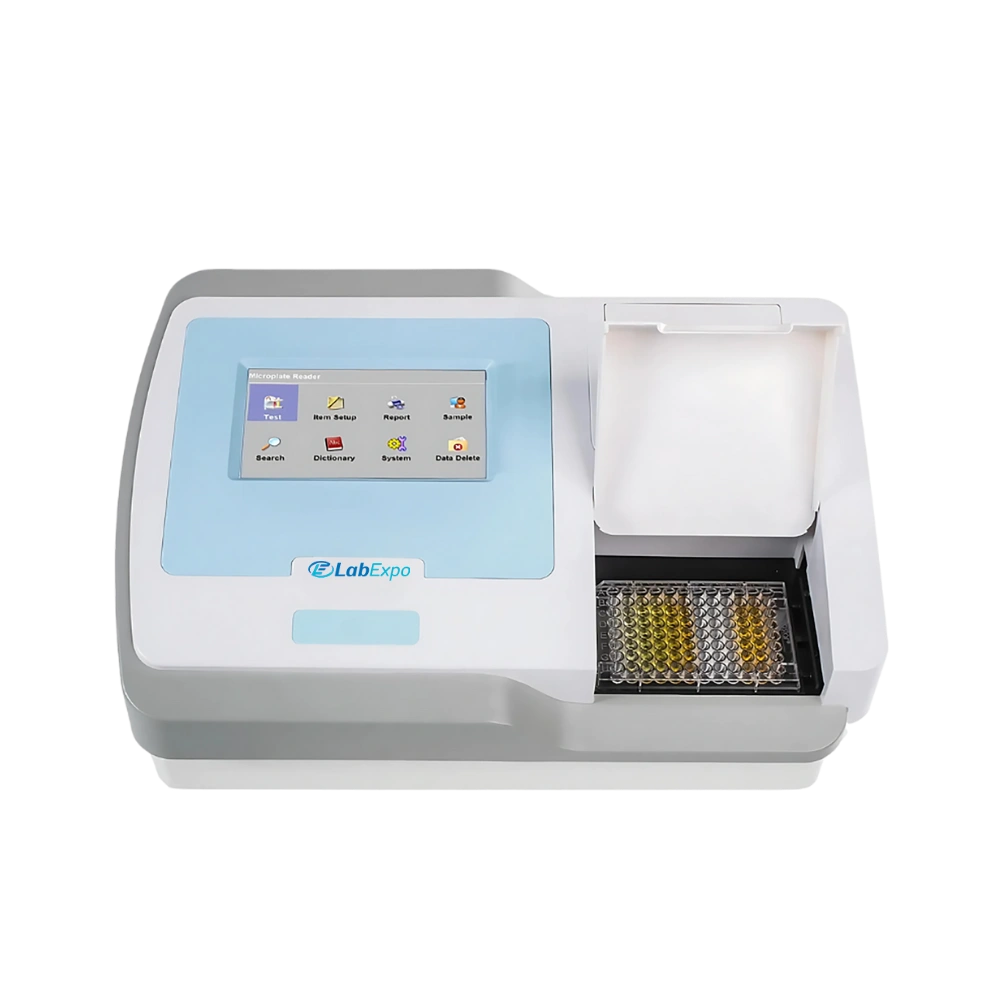

Microplate Reader LE-MR201 delivers fast and accurate performance using an 8-channel optic fiber scanning system. It analyses 96/48-well microplates and runs 12 different tests on a single plate. Equipped with a 7-inch touch TFT LCD screen for intuitive operation. Integrated stable memory stores up to 200,000 test data and 500 test projects. Our Microplate Reader is suitable for ELISA, enzyme tests, protein measurement, and other absorbance-based applications.
Specifications
| Microplate Type | 96/48 well plate |
| Wavelength Range | 400nm to 720nm |
| Photo Detector | Silicon Photodiode |
| Reading Range | 0.000~4.000A |
| Resolution | 0.001A |
| Accuracy | ±0.008A |
| Reproducibility | ≤0.2% |
| Stability | ±0.003A |
| Standard Filters | 405,450,492,630nm |
| Light Source | LED |
| Reading Speed | Single Wavelength ≤3s;Double Wavelengths 6s |
| Shaking | Linear Shaking, 3 speeds |
| Printer | Built-in Thermal Printer,optional external printer |
| Interface Connections | 2× USB A, 1×USB-B, 1× RS-232, 1×Printer |
| Power Supply | 100 to 240V, 50/60Hz |
| Dimension | 460 x 350 x 197 mm |
| Packaging Dimension | 600 x 360 x 460 mm |
| Net Weight | 8 Kg |
| Gross Weight | 12 Kg |
Features
Applications
Microplate Reader LE-MR201 is suitable for many enzymatic and colorimetric assays such as immunoassays, reporter gene assays, prottein quantification, DNA quantification etc.
Standard Accessories
Thermal Printing Paper- 1Pc
Dust Guard- 1Pc
Power Line- 1Pc
Touch Pen- 1Pc
Portable WIFI- 1Pc
USB Port Line- 1Pc
PC Software USB Disk- 1Pc
Fuses- 2Pcs
Optional Accessories
Incubator- 1Pc
Lab Expo offers modern microplate readers that can read both 48 and 96-well plates. They have a wide range and can monitor both single and multiple wavelengths. They have an optical system and automatic plate centering for precise placement. They have automatic light adjustment and calibration features. These handle a variety of test formats and offer reliable memory for storing large amounts of data. They use complete ELISA reading software. Our Microplate Readers are precise, efficient, and versatile.
