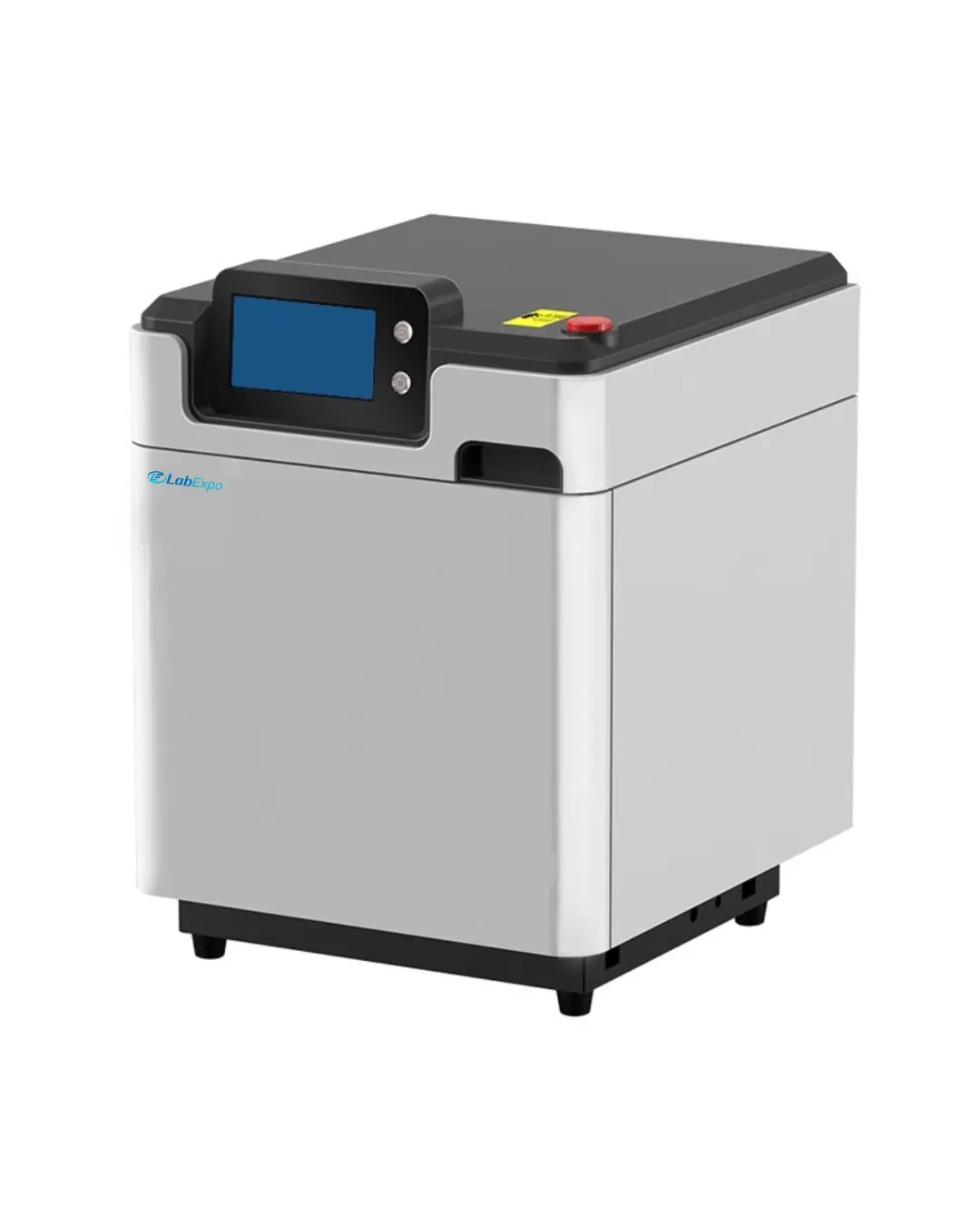

Microwave Digestion System LE-MDS102 offers 12 high-capacity vessels to enable efficient parallel sample processing. It supports precise temperature regulation from 50 to 400°C to meet the demands of complex sample matrices. Equipped with a corrosion-proof air blower to ensure rapid and safe exhaust. Our Microwave Digestion System delivers unmatched performance, reliability, and efficiency for modern analytical laboratories.
Specifications
| Vessel Quantity | 12 |
| Temperature Monitoring | Contactless IR Sensor |
| Temperature Controlling Range | 50 to 400℃ |
| Max. Working Temperature | 250℃ |
| Temperature Accuracy | ±0.1℃ |
| Pressure Monitoring | Contactless Pressure Sensor |
| Pressure Controlling Range | 0 to 15 MPa |
| Max. Working Pressure Range | 6 MPa |
| Pressure Accuracy | ±0.01 MPa |
| Vessel Volume | 100 mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° Continuous Rotation |
| Microwave Power | 0 to 1000W(Adjustable) |
| Cavity Volume | 35 L |
| Microwave Leakage | <5 mW/cm2 |
| Air Exhaust | High Power Corrosion-Proof Air Blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Dimension | 490 × 560 × 630 mm |
| Weight | 47 kg |
Features
Applications
Microwave Digestion System LE-MDS102 is ideal for sample preparation in environmental analysis, food safety testing, pharmaceutical research, petrochemical studies, and materials science, ensuring accurate and consistent analytical results across diverse industries.
Optional Accessories
Sample Pretreatment/Acid-removing Heating Equipment (Heating Blocks), set of 12
1: What is the temperature range for this system?
The temperature can be precisely controlled between 50°C and 400°C, with a maximum working temperature of 250°C and accuracy of ±0.1°C.
2: What safety features are included?
The system includes an explosion-proof cavity, auto-venting vessels, electromagnetic protection, and a high-power corrosion-proof air blower to ensure safe operation.
3: What type of display does the system feature?
It comes with a 7-inch smart color touch screen for easy and intuitive control of system settings and status.
4: Are optional accessories available?
Yes, heating blocks for sample pretreatment are available as optional accessories in sets of 12.
5: Can this system be used across different industries?
Yes, it is ideal for environmental testing, food safety, pharmaceutical research, petrochemical studies, and materials science.
6: What is a Microwave Digestion System?
A microwave digestion system is a laboratory instrument that uses microwave energy to rapidly heat and break down sample materials in sealed vessels for subsequent elemental analysis.
7: How does the auto-vent and self-resealing mechanism work?
This feature allows vessels to automatically release excess pressure in case of overpressure and then instantly reseal, minimizing the risk of accidents and preserving sample integrity.
8: What is the advantage of contactless monitoring?
Contactless sensors reduce the risk of sample contamination and wear, while improving measurement precision and safety during digestion.
9: Are different models available under this category?
Yes, Lab Expo offers a range of microwave digestion systems with varying vessel capacities, power outputs, and automation features tailored to diverse laboratory needs.
10: What applications is this system suitable for?
It is ideal for sample digestion in applications such as TOC analysis, TIC/TC/TOC measurement, chemical digestion, inorganic and organic compound digestion, and elemental testing across various scientific disciplines.
Lab Expo Microwave Digestion System is designed for batch experiments with support for up to 40 high-performance digestion vessels. They feature an auto-vent and self-resealing mechanism to safely release excess pressure and instantly reseals. Their temperature and pressure monitoring system delivers accurate, real-time measurement. They provide large storage capacity to enable flexible and efficient workflow management. Our Digestion System avoids cross-contamination and enables precise tracking of digestion conditions.
