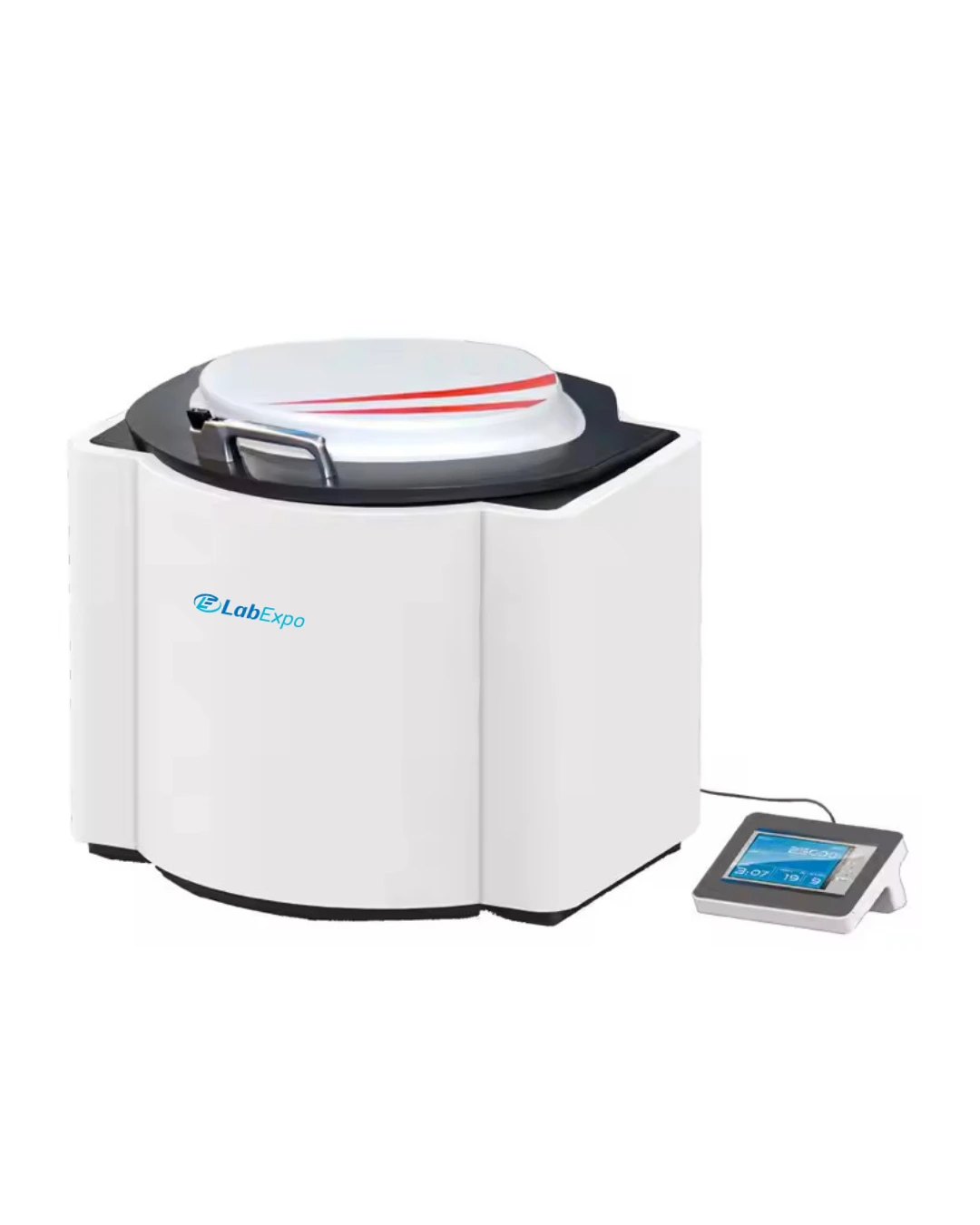

Microwave Digestion System LE-MDS103 delivers precise thermal control with a high accuracy of ±0.1°C. Equipped with a contactless pressure sensor for real-time, accurate pressure detection. Constructed using imported TFM material for chemical resistance and thermal stability. Features continuous one-direction 360° rotation for uniform microwave exposure. Our Digestion System is a reliable solution for efficient and accurate sample preparation in demanding laboratory environments.
Specifications
| Vessel Quantity | 18 |
| Temperature Monitoring | Contactless IR Sensor |
| Temperature Controlling Range | 50 to 400℃ |
| Max. Working Temperature | 250℃ |
| Temperature Accuracy | ±0.1℃ |
| Pressure Monitoring | Contactless Pressure Sensor |
| Pressure Controlling Range | 0 to 15 MPa |
| Max. Working Pressure Range | 6 MPa |
| Pressure Accuracy | ±0.01 MPa |
| Vessel Volume | 100 mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° Continuous Rotation |
| Microwave Cavity | 316 L Stainless Steel Cavity with Corrosion-Proof Coating |
| Microwave Power | 0 to 3000W (Adjustable) |
| Cavity Volume | 35 L |
| Microwave Leakage | <5 mW/cm2 |
| Air Exhaust | High Power Corrosion-Proof Air Blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Dimension | 640 × 630 × 590 mm |
| Weight | 70 kg |
Features
Applications
Microwave Digestion System LE-MDS103 is applied for precise and efficient sample preparation in environmental monitoring, food safety testing, pharmaceutical research, petrochemical analysis, and materials science, enabling accurate elemental analysis through seamless digestion of solid and liquid samples.
Optional Accessories
Sample Pretreatment/Acid-removing Heating Equipment (Heating Blocks), set of 20
1: How many samples can the LE-MDS103 process at once?
The system supports 18 digestion vessels, enabling high-throughput batch sample processing.
2: What materials are used for the digestion vessels?
Vessels are made of imported TFM for superior chemical resistance and thermal stability, and protected with a PEEK + Glass Fiber outer vessel.
3: Does the system ensure uniform heating?
Yes, it features one-direction 360° continuous rotation for even microwave exposure, improving digestion uniformity.
4: What is the microwave power capability?
It supports adjustable microwave power from 0 to 3000W, providing the flexibility to handle a variety of sample types.
5: What are the main application areas?
This system is ideal for environmental monitoring, food safety testing, pharmaceutical and petrochemical research, and materials science, enabling accurate elemental analysis of both solid and liquid samples.
6: What is a Microwave Digestion System?
A microwave digestion system is a laboratory instrument that uses microwave energy to rapidly heat and break down sample materials in sealed vessels for subsequent elemental analysis.
7: How does the auto-vent and self-resealing mechanism work?
This feature allows vessels to automatically release excess pressure in case of overpressure and then instantly reseal, minimizing the risk of accidents and preserving sample integrity.
8: What is the advantage of contactless monitoring?
Contactless sensors reduce the risk of sample contamination and wear, while improving measurement precision and safety during digestion.
9: Are different models available under this category?
Yes, Lab Expo offers a range of microwave digestion systems with varying vessel capacities, power outputs, and automation features tailored to diverse laboratory needs.
10: What applications is this system suitable for?
It is ideal for sample digestion in applications such as TOC analysis, TIC/TC/TOC measurement, chemical digestion, inorganic and organic compound digestion, and elemental testing across various scientific disciplines.
Lab Expo Microwave Digestion System is designed for batch experiments with support for up to 40 high-performance digestion vessels. They feature an auto-vent and self-resealing mechanism to safely release excess pressure and instantly reseals. Their temperature and pressure monitoring system delivers accurate, real-time measurement. They provide large storage capacity to enable flexible and efficient workflow management. Our Digestion System avoids cross-contamination and enables precise tracking of digestion conditions.
