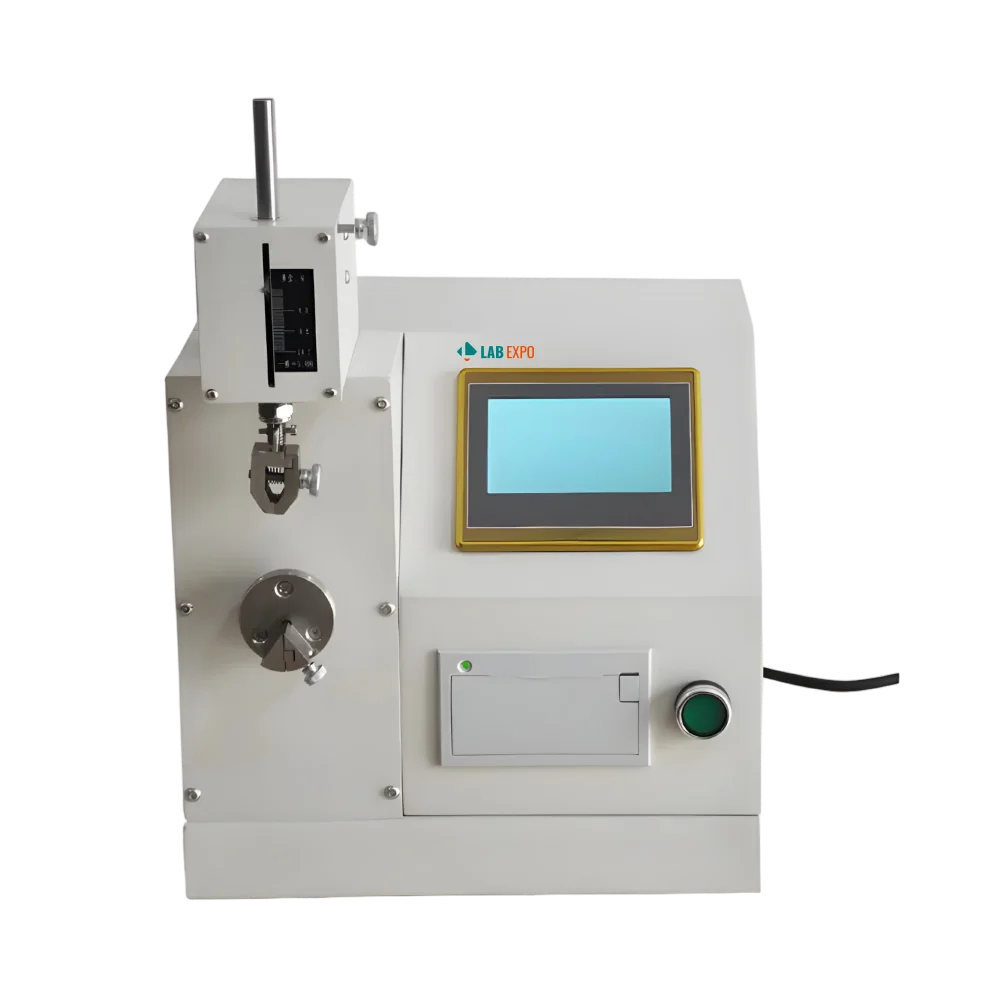

Folding Tester 61-PPT131 operates at a precise 175 ± 10 beats per minute, ensuring consistent and reliable folding performance. It offers a folding angle setting at 135°, delivering reliable and standardized folding tests. It features an advanced 32-bit ARM Processor ensuring precise control and exceptional accuracy during the testing process. Our tester equipped with a 5-inch Color Touch Screen LCD offers a user-friendly interface for easy navigation and control.
Specifications
| Fold Speed | 175 ± 10 beats/min |
| Fold Angle | 135° ± 2° |
| Measuring Range | 1 to 99999 times |
| Tension Adjustment Range | 4.9N to 14.7N |
| Folding Clamp Slot | 0.25mm, 0.50mm, 0.75mm, 1.00mm |
| Fold Head Width | 19 ± 1mm |
| Folding Fillet Radius | R0.38mm ± 0.02mm |
| Tension Variations | ≤ 0.343N |
| Spring Compression | At least 17mm |
| Working Environment | Temperature: 0 to 40°C, Relative humidity ≤ 85% |
| Working Power | AC 220V ± 10%, 50Hz |
| Dimensions | 390 mm × 305 mm × 440 mm |
| Weight | ≤ 24kg |
Features
Applications
Folding Tester 61-PPT131 is widely used in Textile Industries, Paper and Packaging, Film and Plastic Materials, Automotive Industry, Electronics, Medical and Pharmaceutical.
Catalog
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
