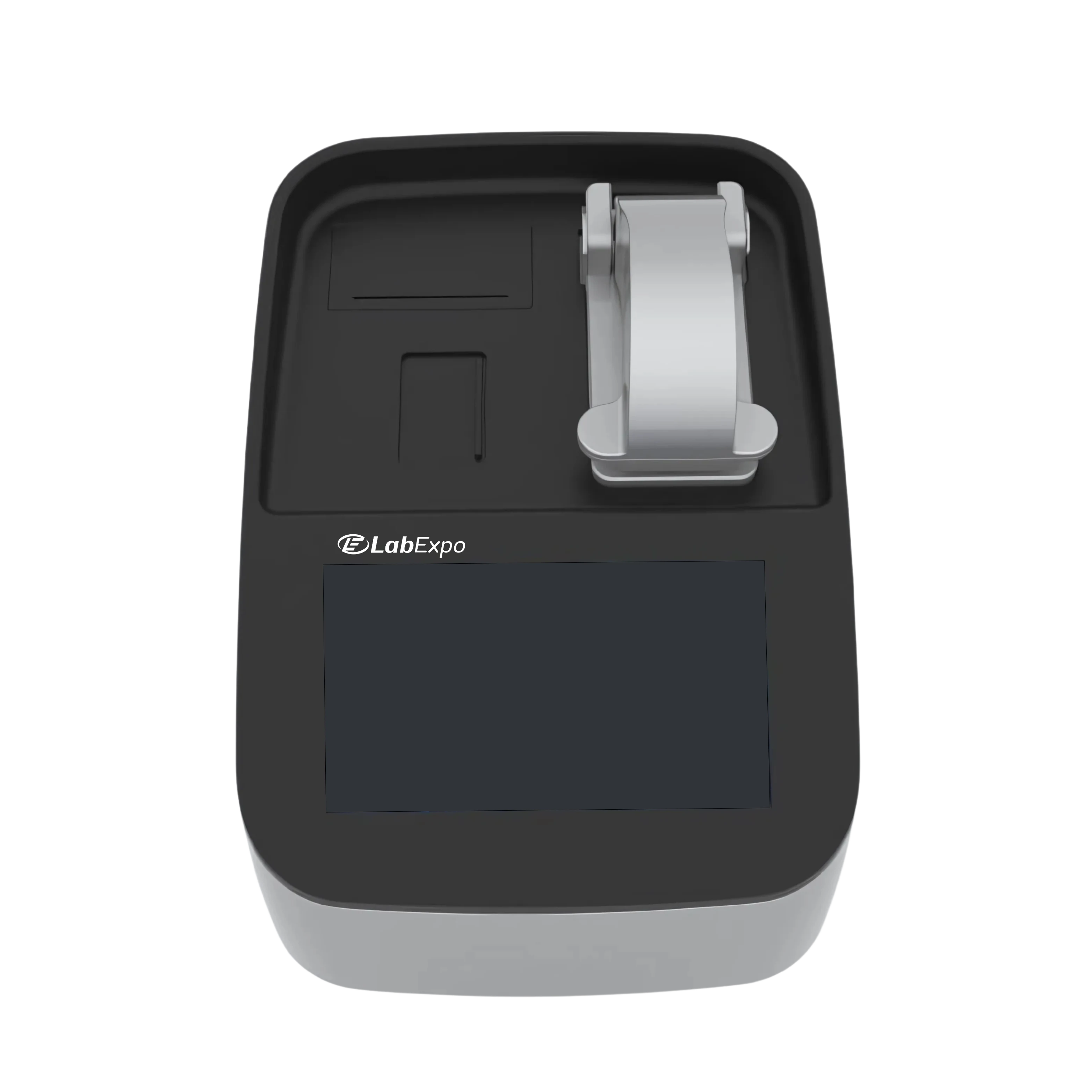

Nano Spectrophotometer 15A-NSP200 offers a wavelength range of 190 to 900 nm, enabling comprehensive analysis across a wide array of samples. It requires a minimum sample size of just 0.5 µL, making it ideal for microscale testing. Its two-in-one functionality supports the measurement of cell growth density, including bacteria, yeast, and other microorganisms. Our Spectrophotometer is designed with a compact size and lightweight build, ideal for on-site testing and convenient field use.
Specifications
| Wavelength Range | 190 to 900 nm |
| Minimum Sample Size | 0.5 µL |
| Optical Distance | 0.02 / 0.02 / 0.1 / 0.5 / 1 mm (Five detection light paths, automatic switching) |
| Wavelength Accuracy | 1 nm |
| Wavelength Resolution | 1 nm |
| Absorbance Accuracy | ±1% (0.76 at 260 nm) |
| Absorbance Resolution | 0.002 Abs (at 1 mm optical distance) |
| Absorbance Range | 0 to 750 Abs (10 mm equivalent) |
| OD 600 Absorbance Range | 0 to 4.000 Abs |
| OD 600 Absorbance Stability | (0, 3) ≤ 0.5%, [3, 4] ≤ 2% |
| OD 600 Absorbance Repeatability | (0, 3) ≤ 0.5%, [3, 4] ≤ 2% |
| Nucleic Acid Detection Range | 1.5 to 3750 ng/µL (dsDNA), Lower limit 1.5 ng/µL |
| Protein Detection Range | 0.05 to 1110 mg/mL (BSA), 0.03-540 mg/mL (IgG) |
| Sample Pedestal Material | 304 Stainless Steel and Quartz |
| Measurement Time | <5 seconds |
| Detector | 2048 unit cmos linear array sensor |
| Light Source | Xenon flash lamp |
| Plugs | Three/Two PIN plug |
| Peculiarity | The principle of the fixed optical path, a lifetime without correction, can detect volatile solvent samples |
| Power Supply | 110V to 220V, 50 to 60Hz |
| Dimensions (W×D×H) | 310×221×176 mm |
| Packaging Dimensions (L×W×H) | 320×380×330 mm |
| Net Weight | 5.2 kg |
| Gross Weight | 9 kg |
Features
Applications
Nano Spectrophotometer 15A-NSP200 is used for precise and efficient analysis of small sample volumes. It is widely used in biotechnology & molecular biology, microbiology, pharmaceuticals, environmental testing, academic research, food & beverage industry, forensic science, and clinical diagnostics.
Standard Accessories
Item | Quantity |
Photometer Main Unit | 1 set |
Power Adapter | 1 set |
Power Line | 1 Pc |
Quartz Cuvette / 10mm | 1 set |
Lab Expo Nano Spectrophotometers measure light intensity across different wavelengths to determine the absorbance and transmittance of samples. They are designed for quick and precise micro-volume sample analysis. These advanced instruments are equipped with a high-performance detector and a stable light source, providing accurate results. They handle micro-volume sampling with precision, requiring only a minimal amount, and delivering precise measurements. These are equipped with a 3864-element linear silicon CCD array detector, ensuring high sensitivity and accuracy. They are integrated with long-life xenon flash lamps for extended use and reliable performance. These feature a user-friendly interface along with a digital display and intuitive controls for easy operation.
