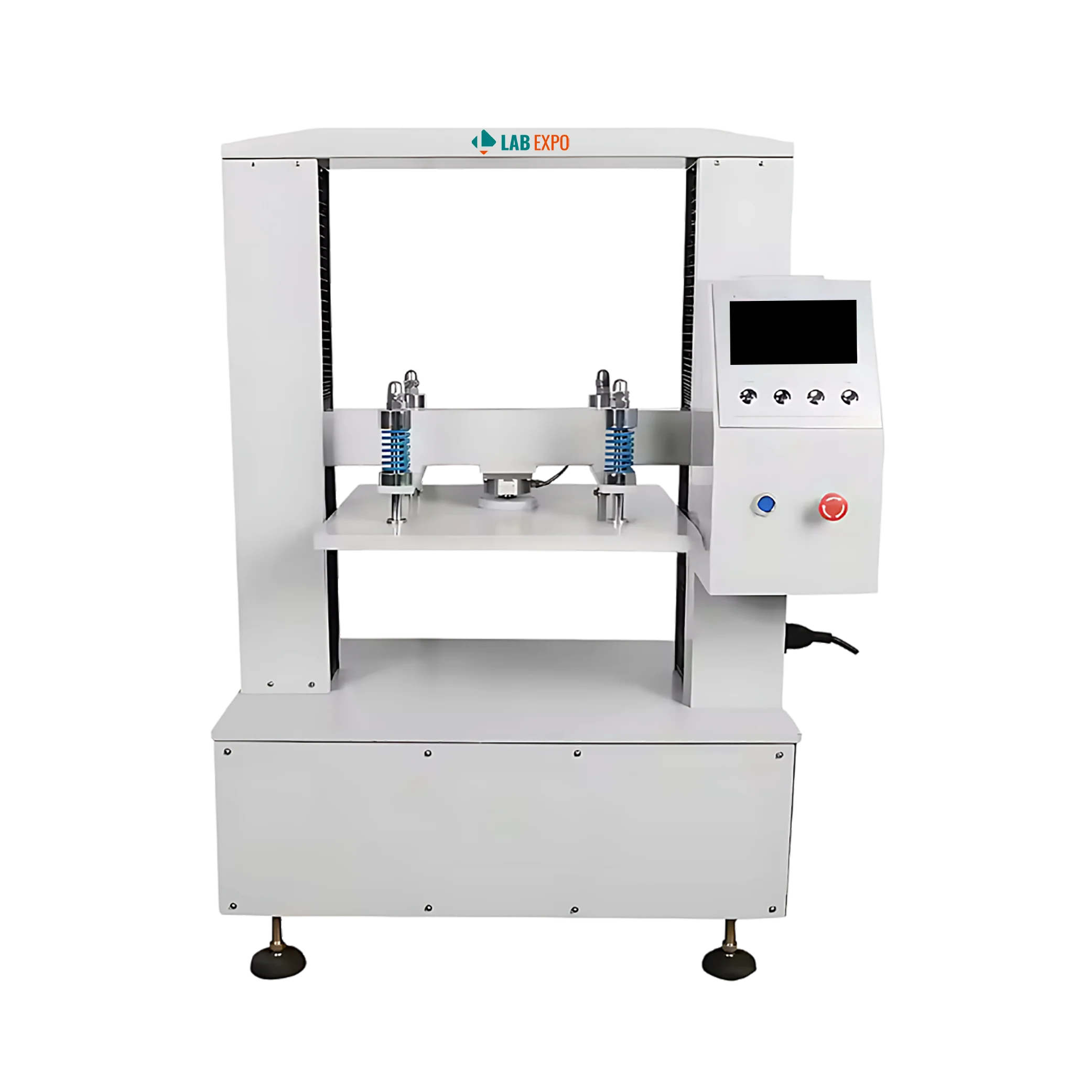

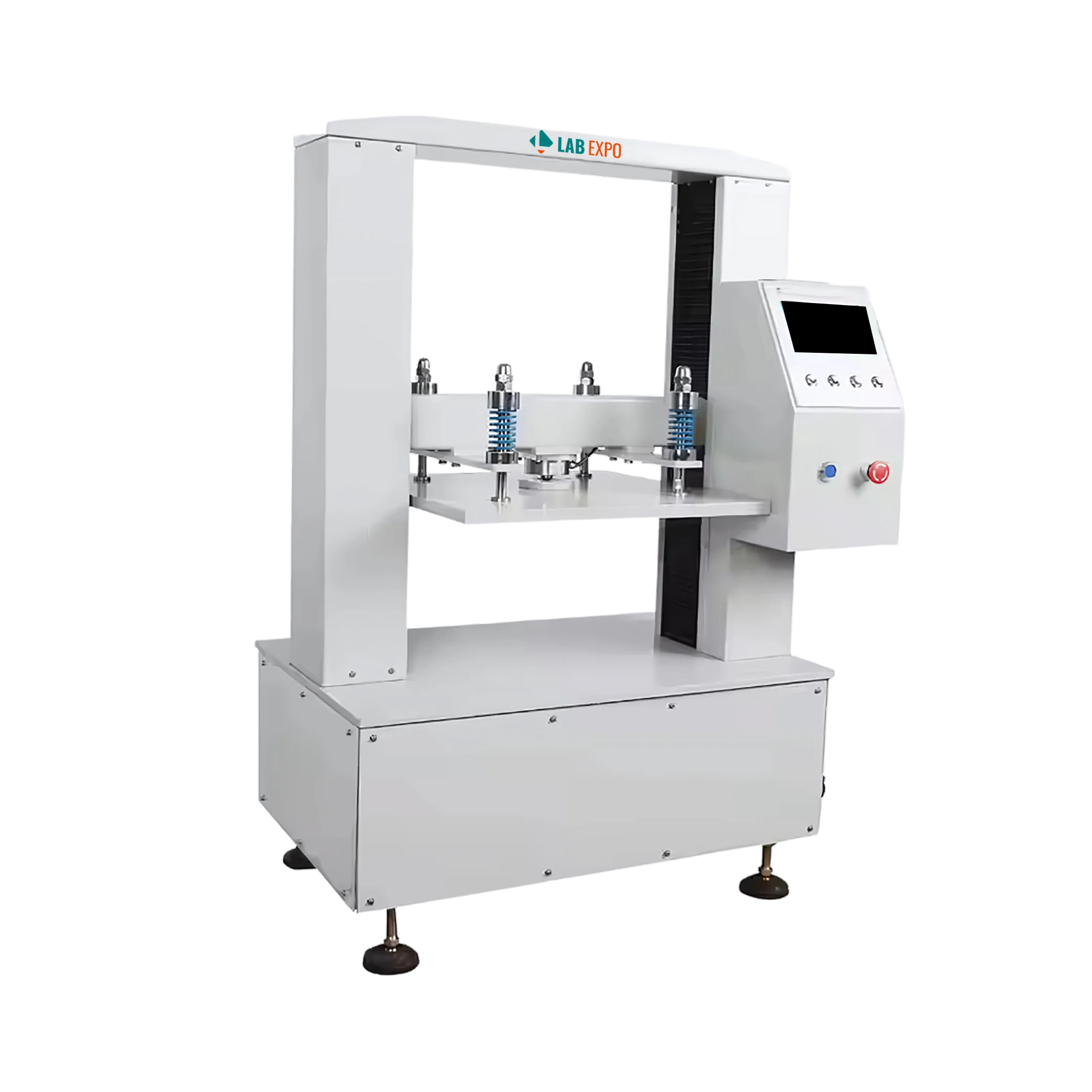

Compression Tester 61-PPT117 with 100 mm/min return speed level measures the compressive strength of carton box. The compressor tester, adopted with ARM chip, powerful data functioning system, advanced sensor and automatic tracking system for test operations. The test results are recorded automatically, the real-time display is used to view the test data and is transferrable to computer.
Specifications
| Measuring range | 0.1 to 10 kN |
| Indication error | < ± 1% |
| Platen Size | 500×500 mm (customized) |
| Operating stroke | 500 mm (customized) |
| Compression speed | 10 mm/ min |
| Speed adjustment range | 2 to 100 mm/ min |
| Track & force speed in stacking test | 2 mm/ min |
| Power supply | AC220 V ± 10 % , 50 Hz |
Features
Applications
Compression Tester is used to determine compression strength & estimate stacking test of transport packages such as corrugated carton, paperboard box etc.
Lab Expo offers Paper Testing Instruments designed for a wide range of sample sizes to test packaging materials with high precision. Our paper testing instruments are designed with a compact and portable structure, easy to transport, and ideal for testing in various environments. They offer a built-in printer that ensures efficient printing of test results for seamless documentation. Their advanced signal-transmitting pressure system offers precise control, ensuring reliable and accurate performance. Our instruments feature a user-friendly LCD to provide real-time monitoring of stiffness and burst strength values.
